Corolla LE Sedan L4-1.8L (1ZZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Manual Transmission/Transaxle
>>
System Diagram
>>
Unit Overhaul
>>
Differential Case Assy
Differential Case Assy

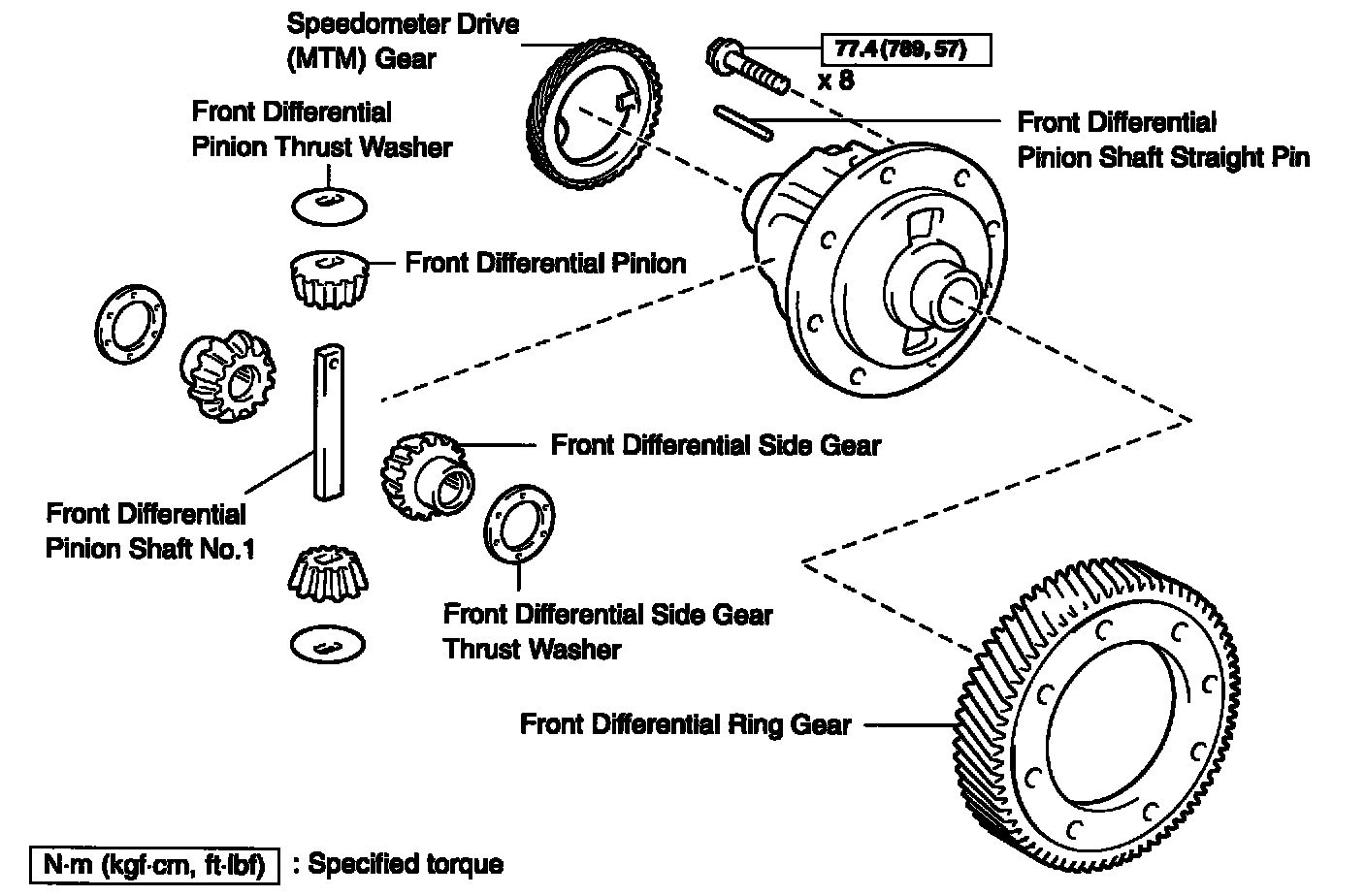

DIFFERENTIAL CASE ASSY (C59)
