Operation CHARM
: Car repair manuals for everyone.
Home
>>
Toyota
>>
2003
>>
Echo L4-1.5L (1NZ-FE)
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Heating and Air Conditioning
>>
System Specifications
System Specifications

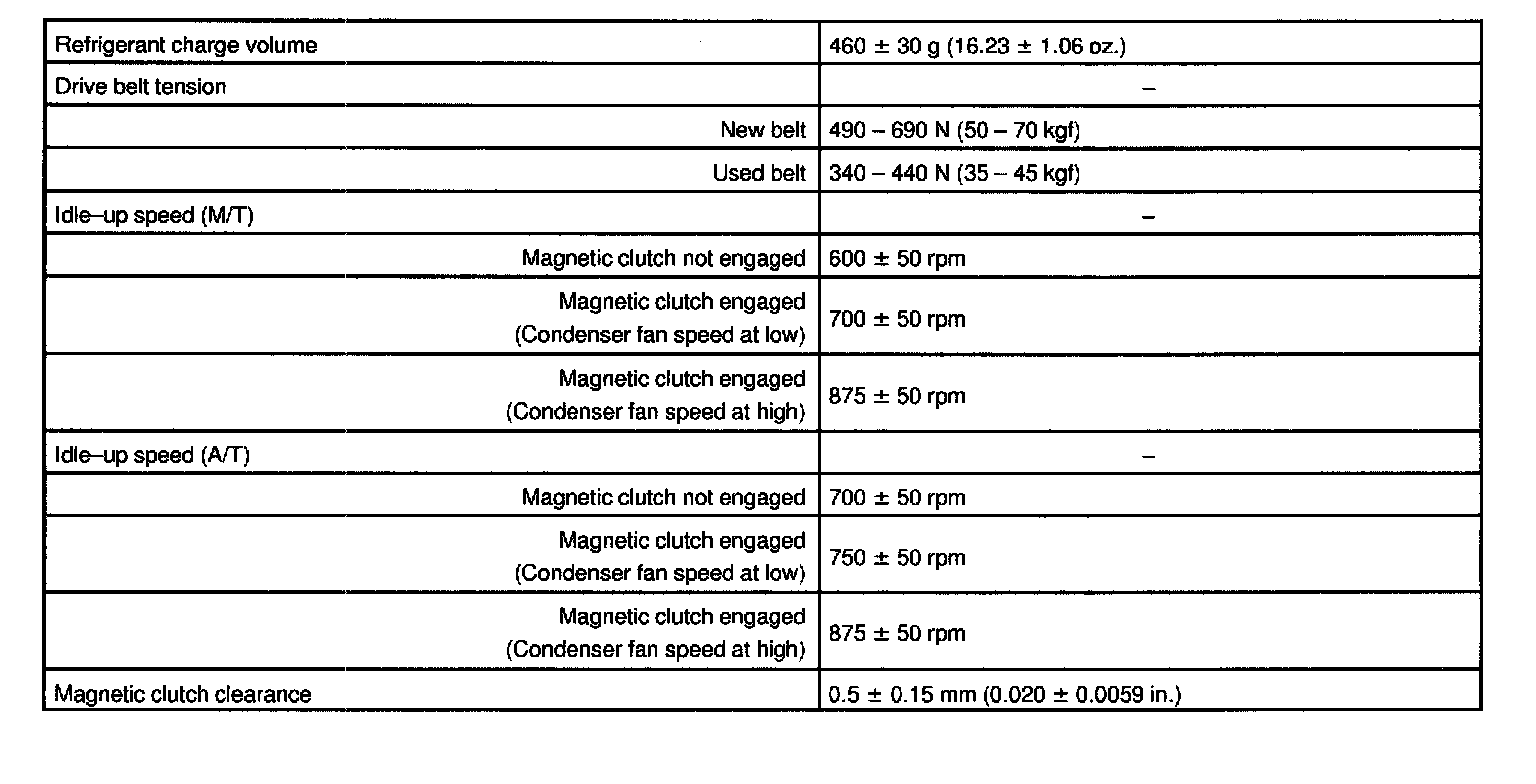

Airconditioning - Service Data:

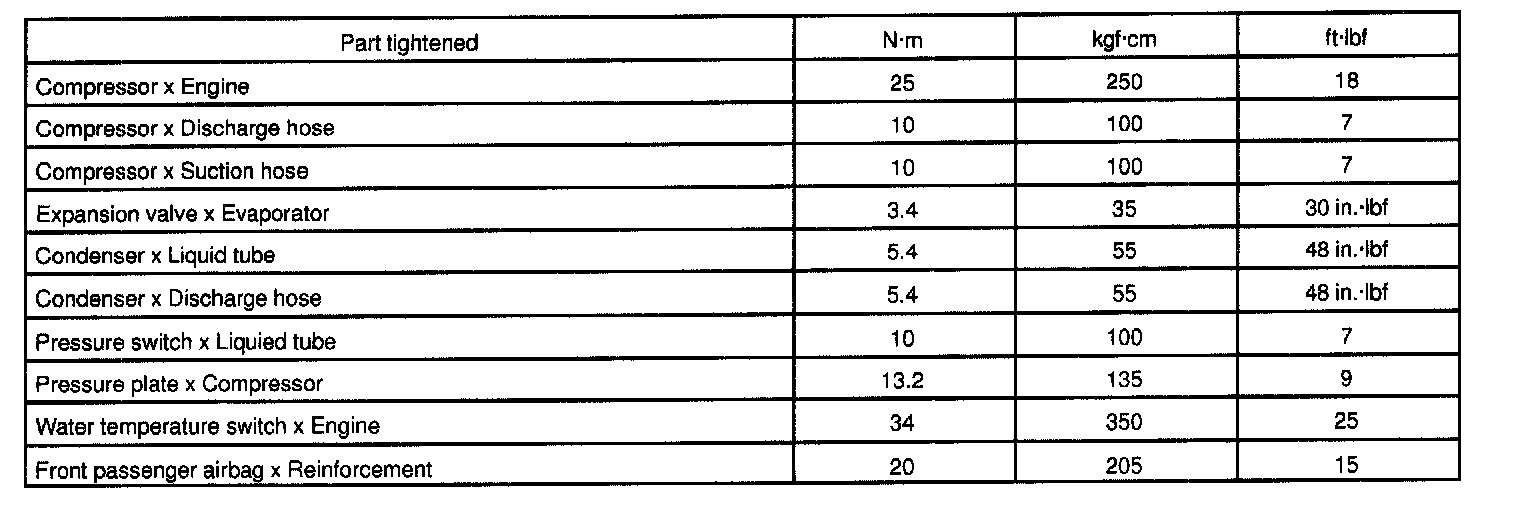

Air Conditioning Torque Specification:
