Cruise Control Servo: Service and Repair

CRUISE CONTROL ACTUATOR ASSY

REPLACEMENT







1. REMOVE CRUISE CONTROL ACTUATOR COVER
a. Disengage the 2 claws, then remove the cruise control actuator cover.




2. SEPARATE ACCELERATOR CONTROL CABLE ASSY (2AZ-FE ENGINE TYPE)

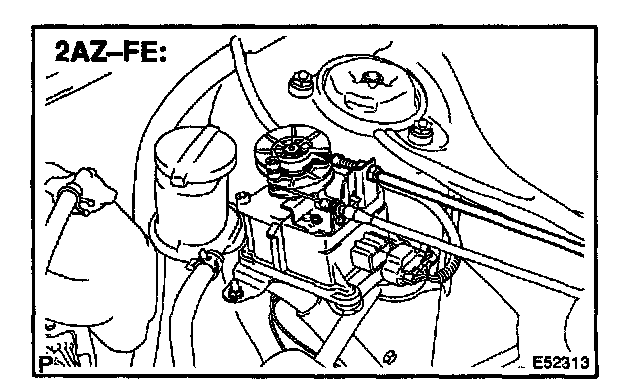

a. Loosen the double nut and separate the accelerator control cable assy.




3. SEPARATE ACCELERATOR AUTO DRIVE CABLE ASSY(2AZ-FE ENGINE TYPE)

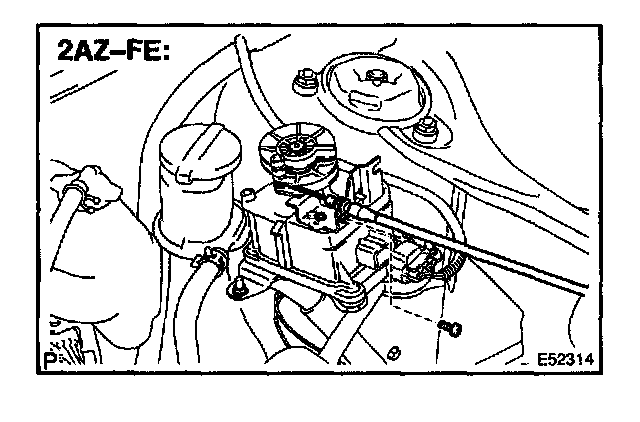

a. Remove the screw and separate the accelerator auto drive cable assy.







4. REMOVE CRUISE CONTROL ACTUATOR ASSY
a. Disconnect the connector.
b. Remove the 3 nuts and cruise control actuator assy.
