Electrical Diagrams

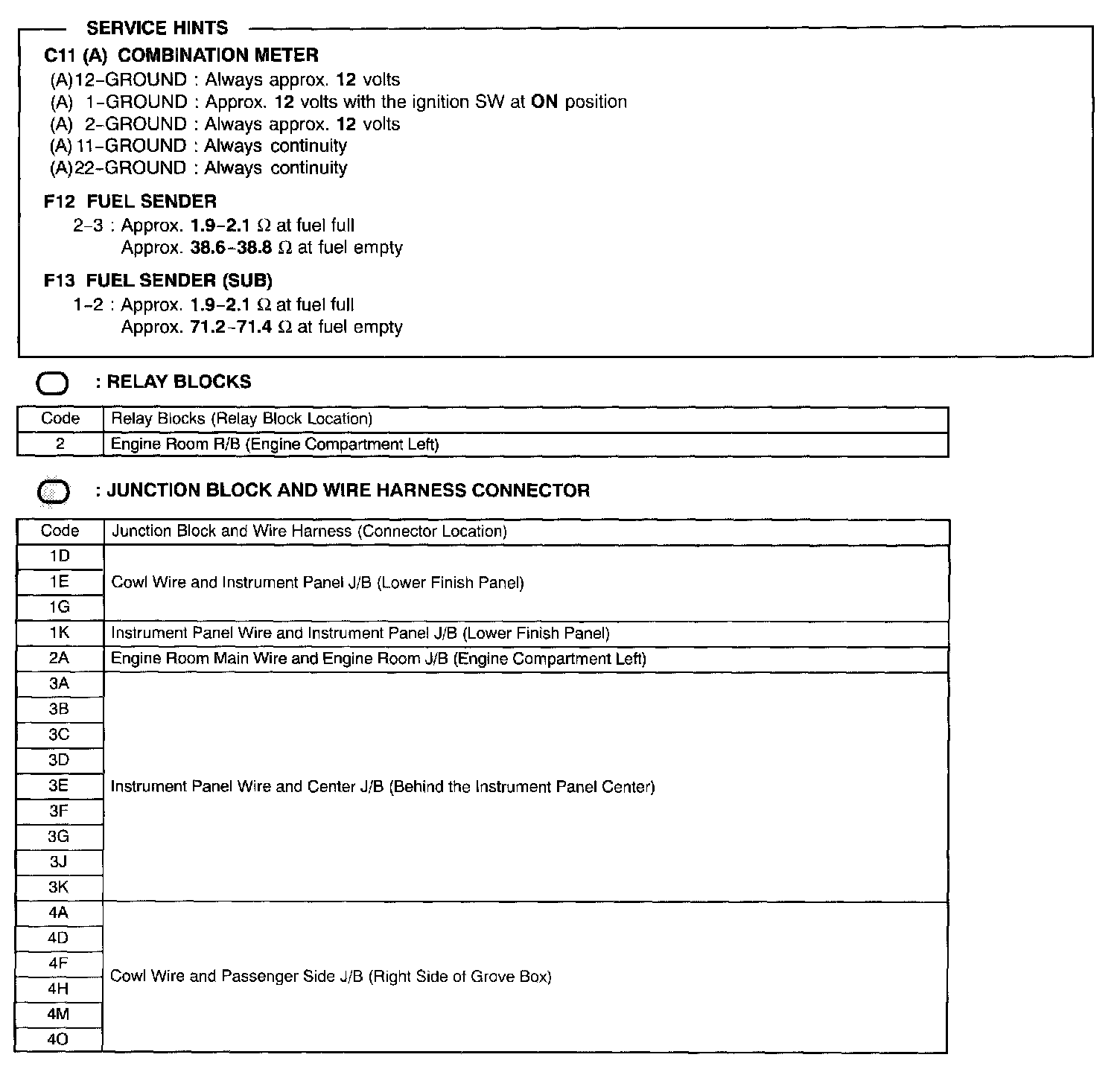

Combination Meter Part 1:

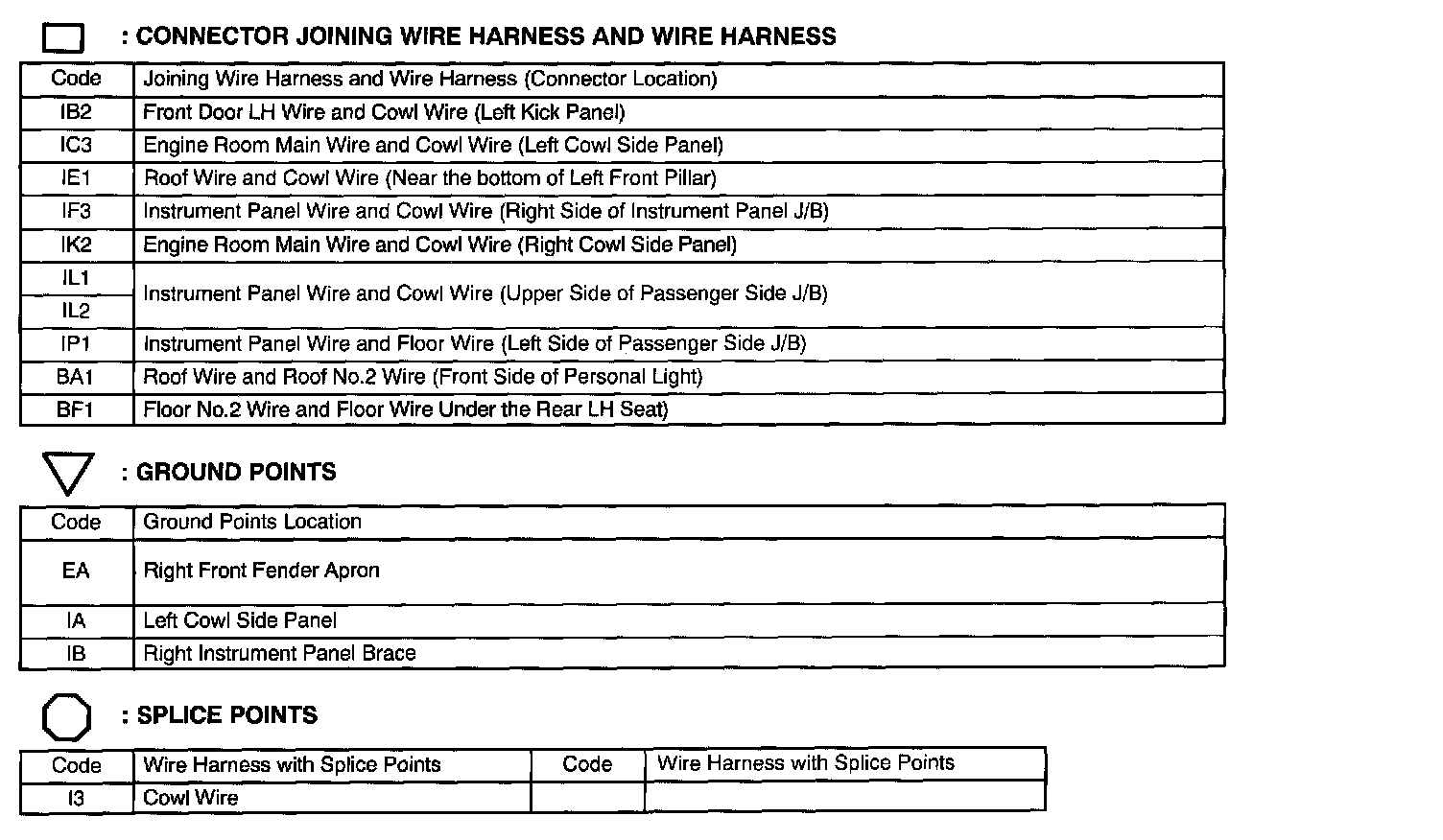

Combination Meter Part 2:

Combination Meter Part 3:

Combination Meter Part 4:

Diagram Legend Part 1:

Diagram Legend Part 2:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations.

Connector Views: The connector views for connectors referred to within these diagrams can be found at the Vehicle level Connector Views.
