Symptom Related Diagnostic Procedures

PROBLEM SYMPTOMS TABLE

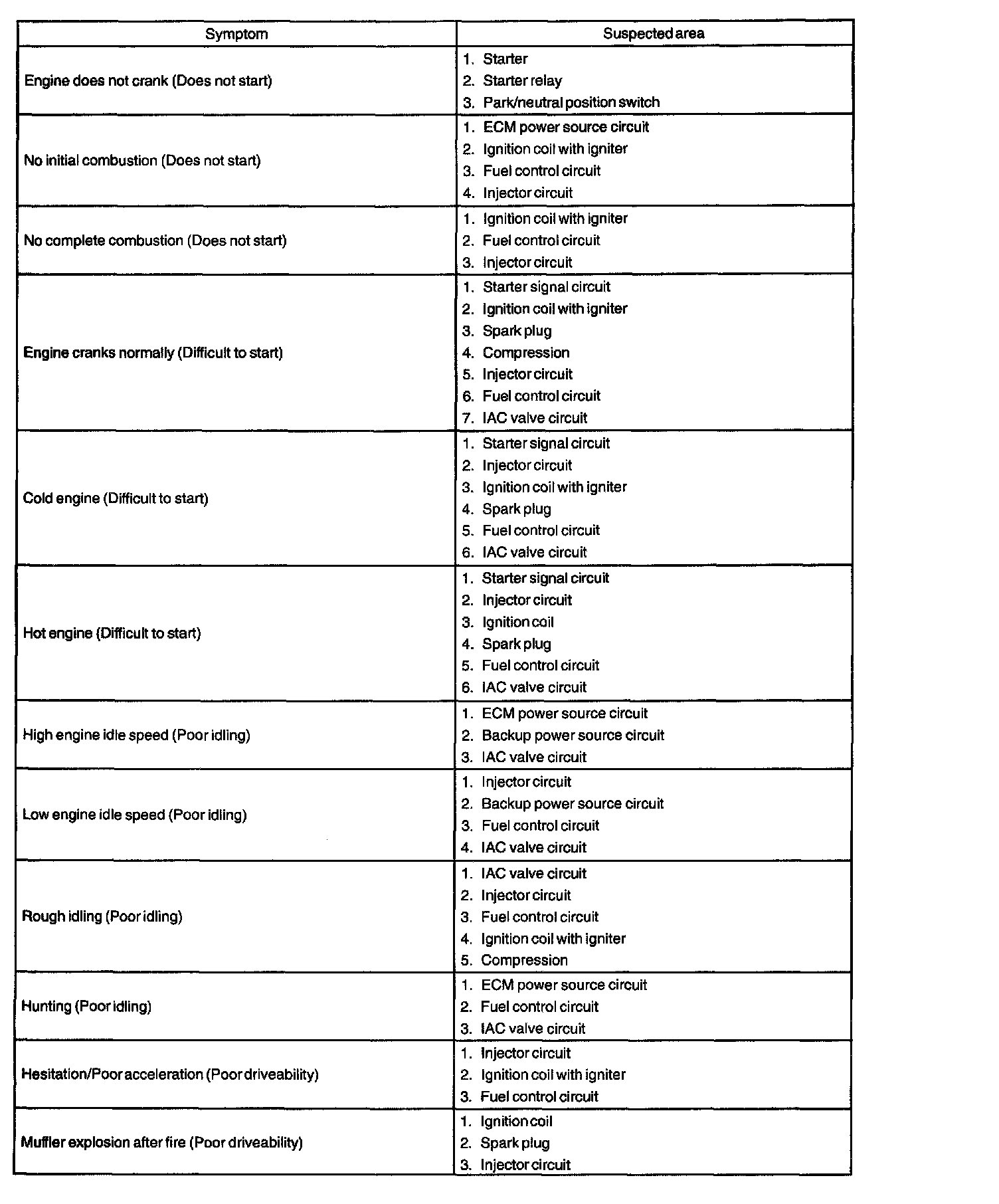

Problem Symptoms Table Part 1:

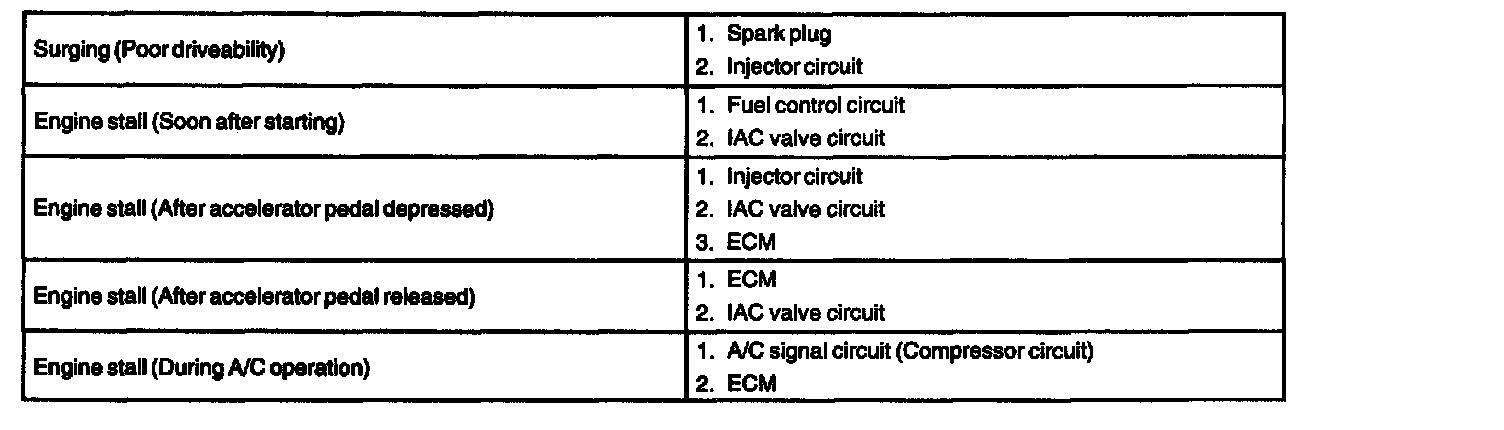

Problem Symptoms Table Part 2:

When no malfunction can be confirmed in the DTC check and the problem still can not be confirmed in the basic inspection either, proceed to this problem symptoms table and troubleshoot.
