Automatically Shifted Manual Transmission/Transaxle
>>
Shift Actuator, ASMT
>>
Hydraulic Control Unit, ASMT

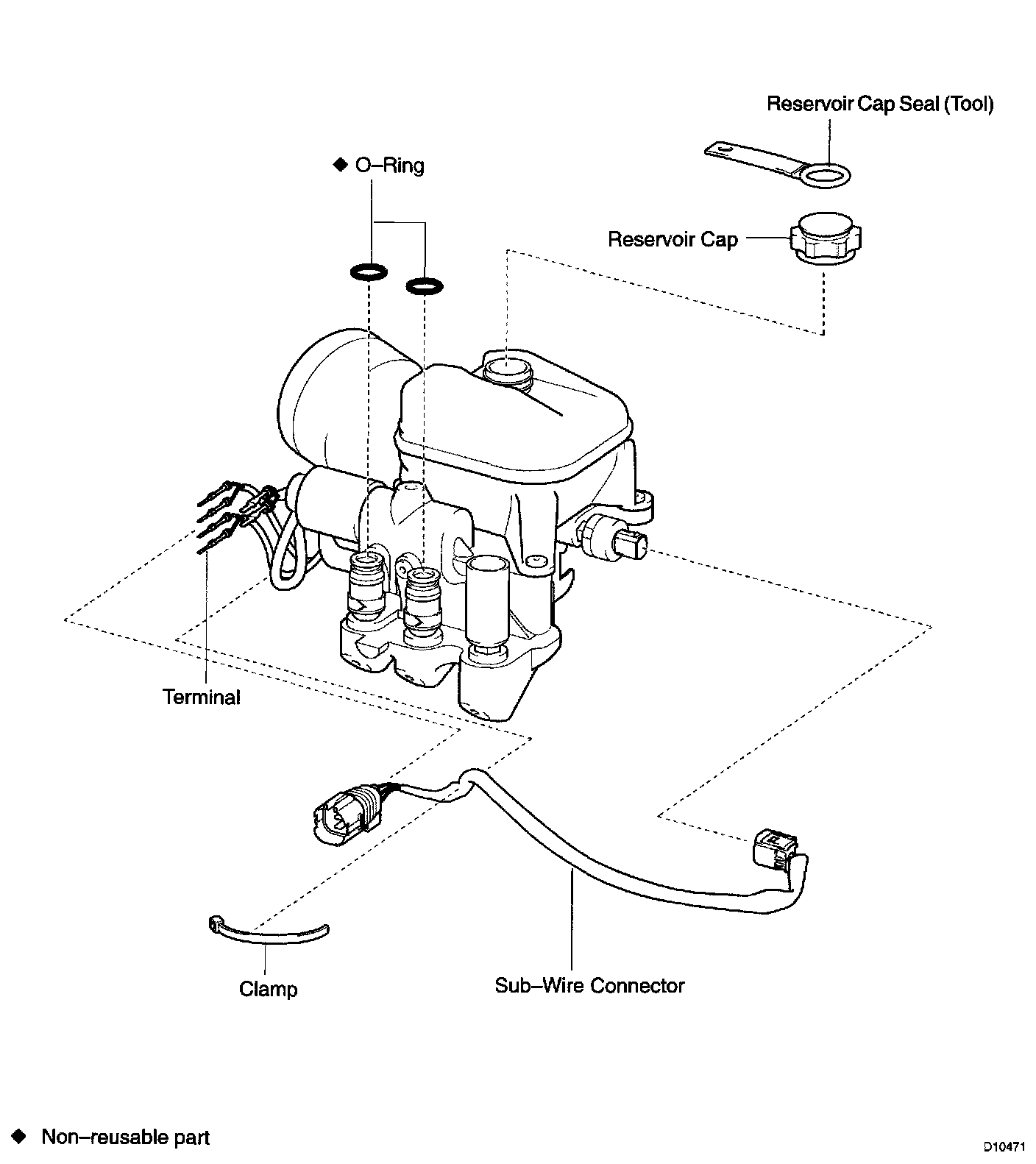

Hydraulic Control Unit, ASMT

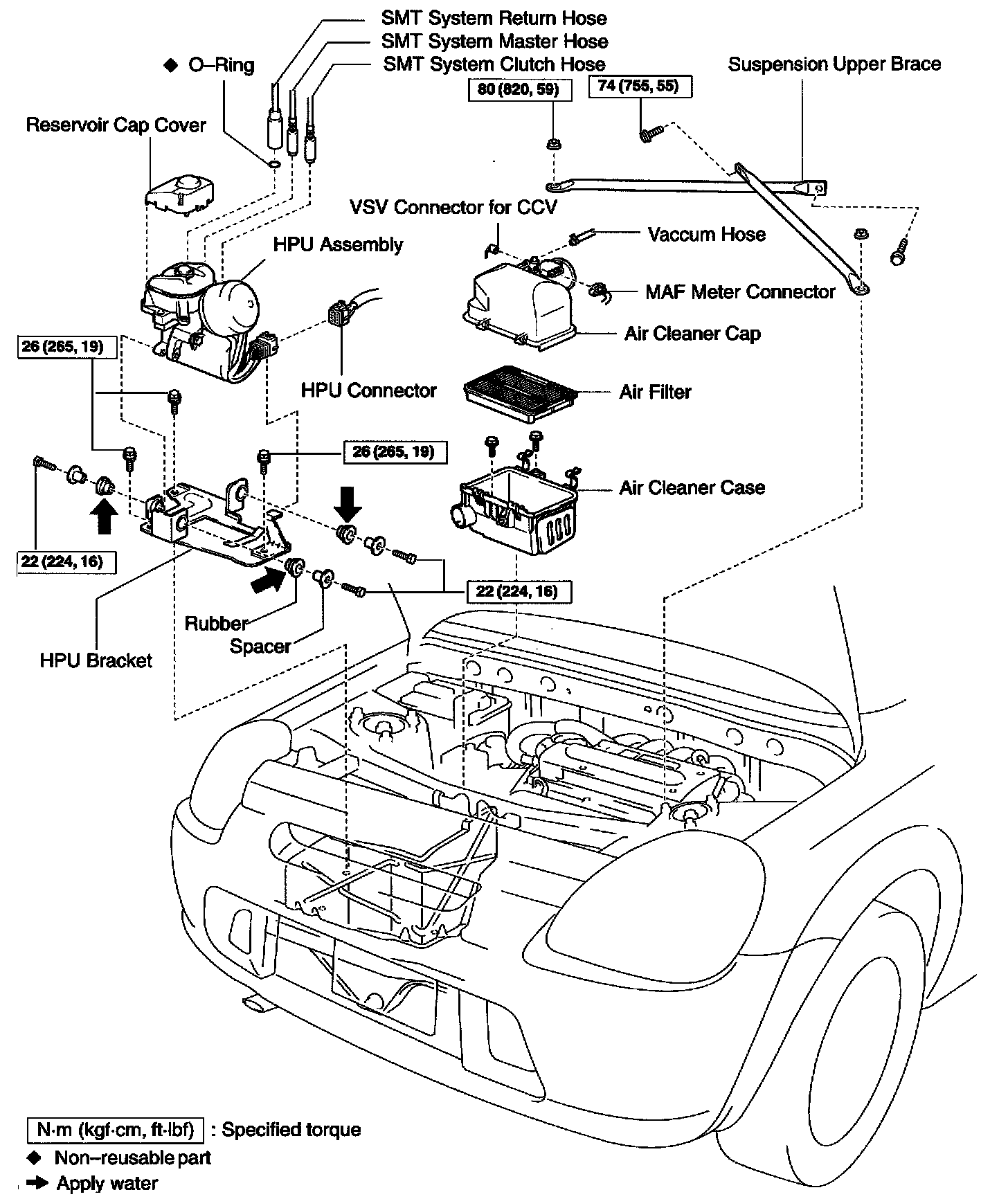

HYDRAULIC POWER UNIT
