Operation CHARM: Car repair manuals for everyone.
Home >> Toyota >> 2003 >> MR2 Spyder L4-1.8L (1ZZ-FE) >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Dashboard / Instrument Panel

Dashboard / Instrument Panel

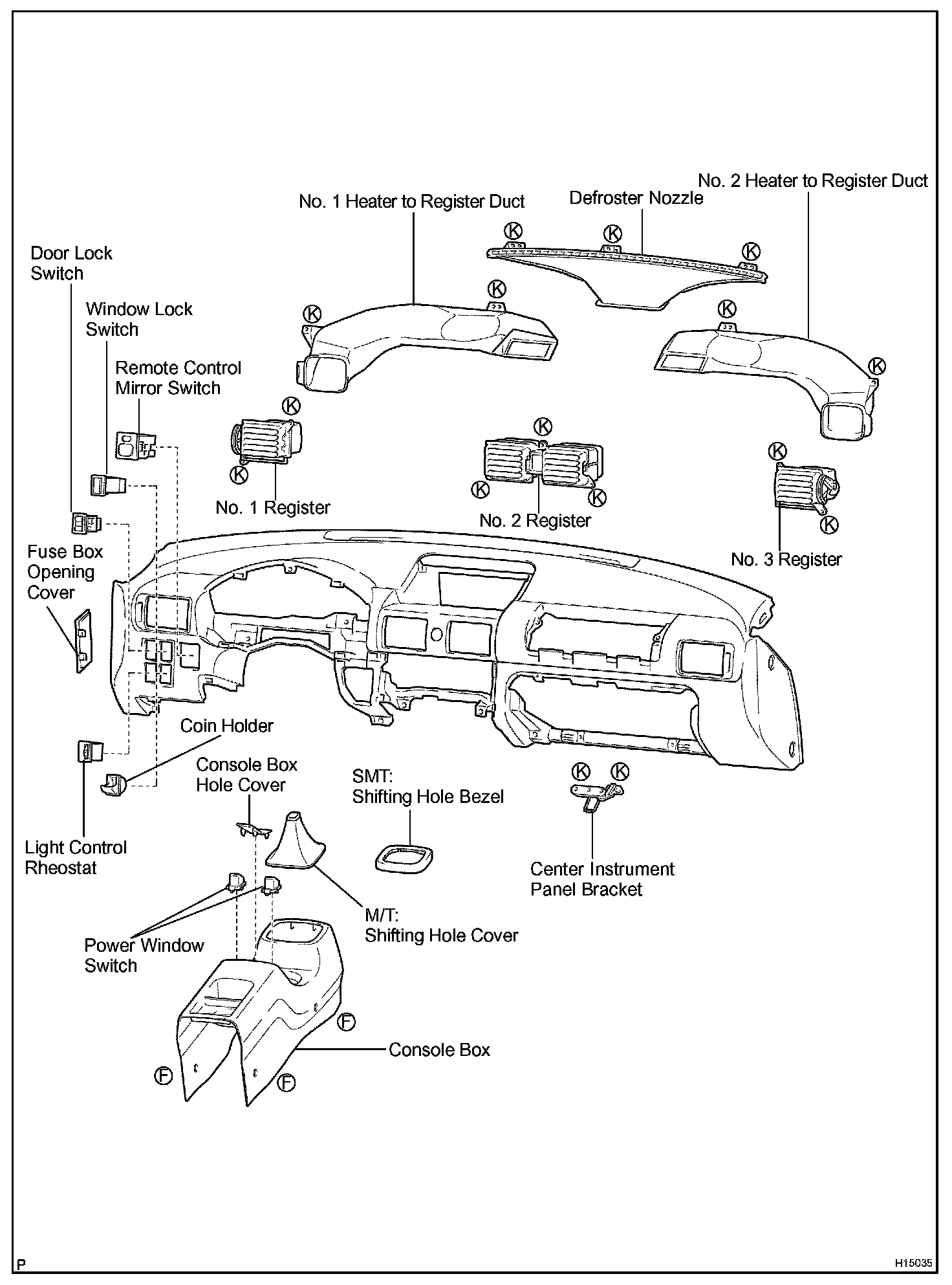

Instrumental Panel:

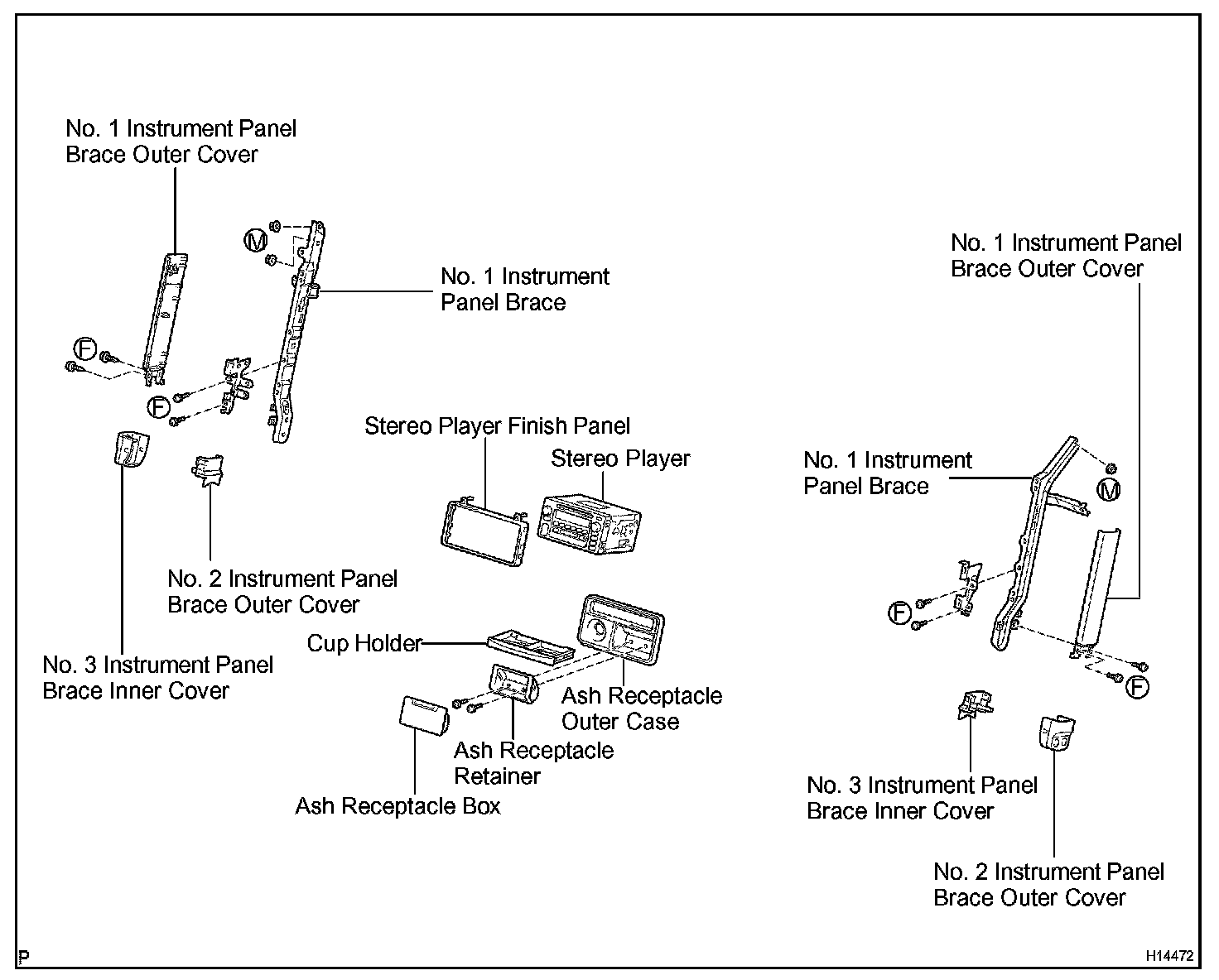

Instrumental Panel:

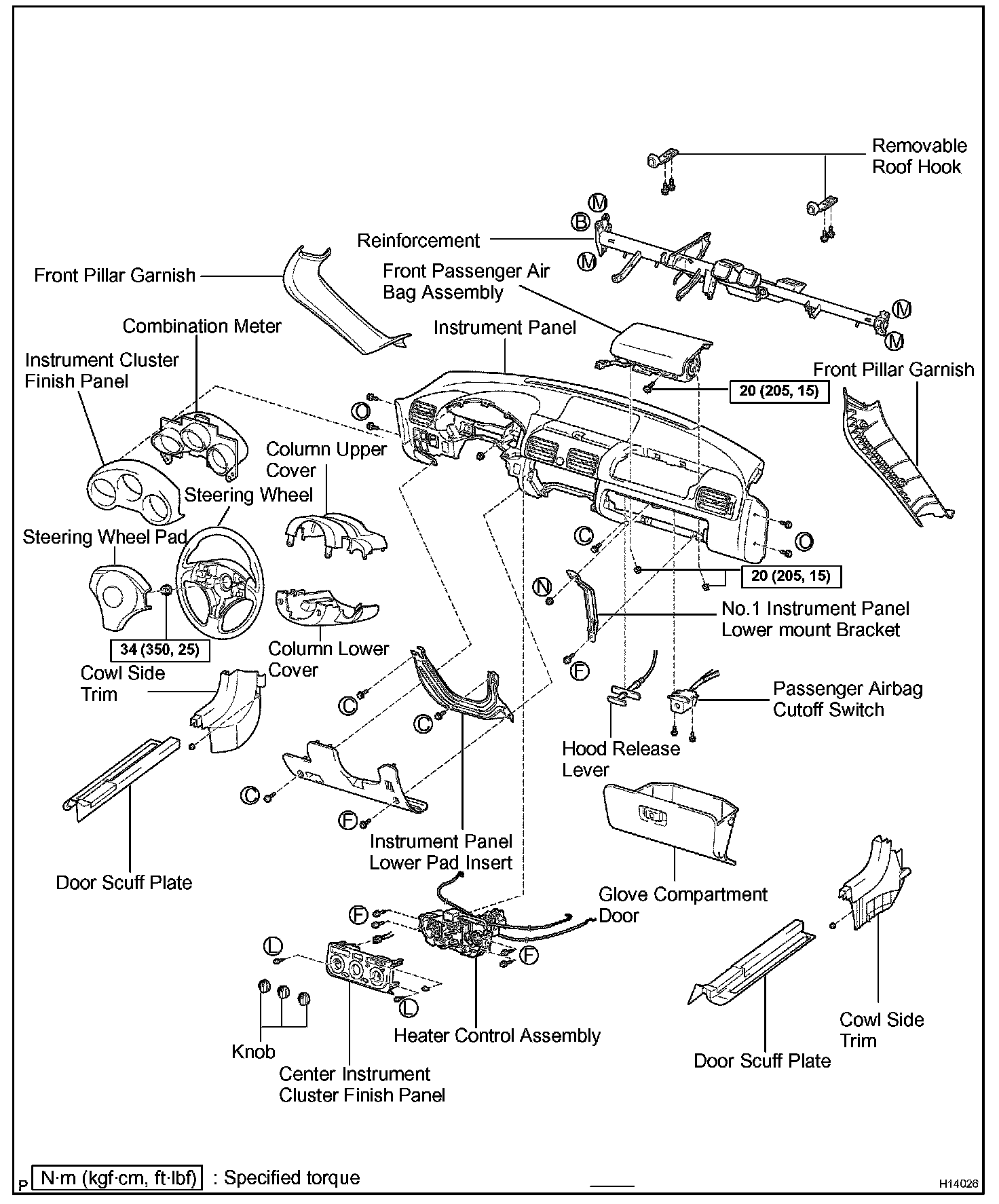

Instrumental Panel:

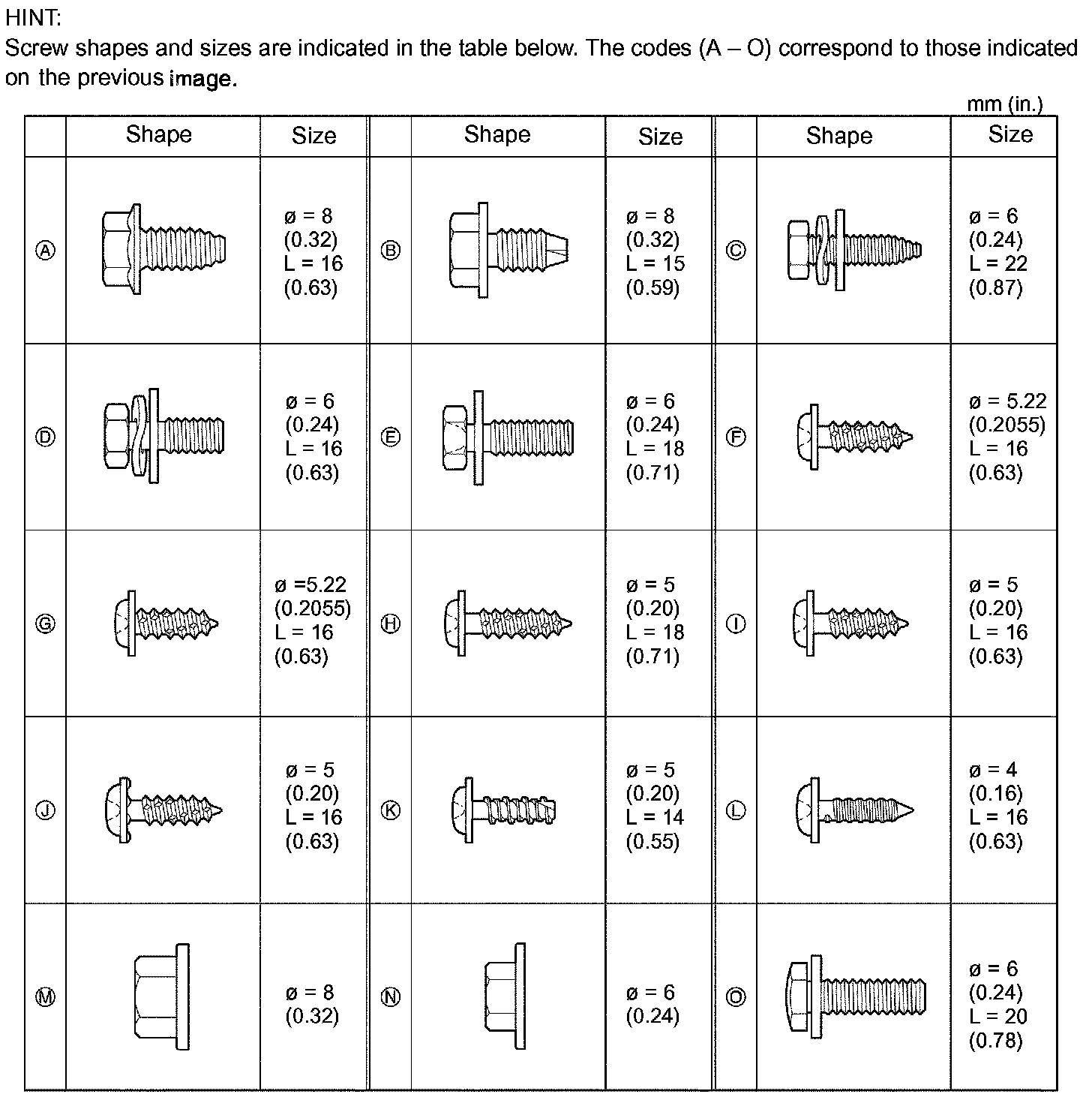

Instrumental Panel:
