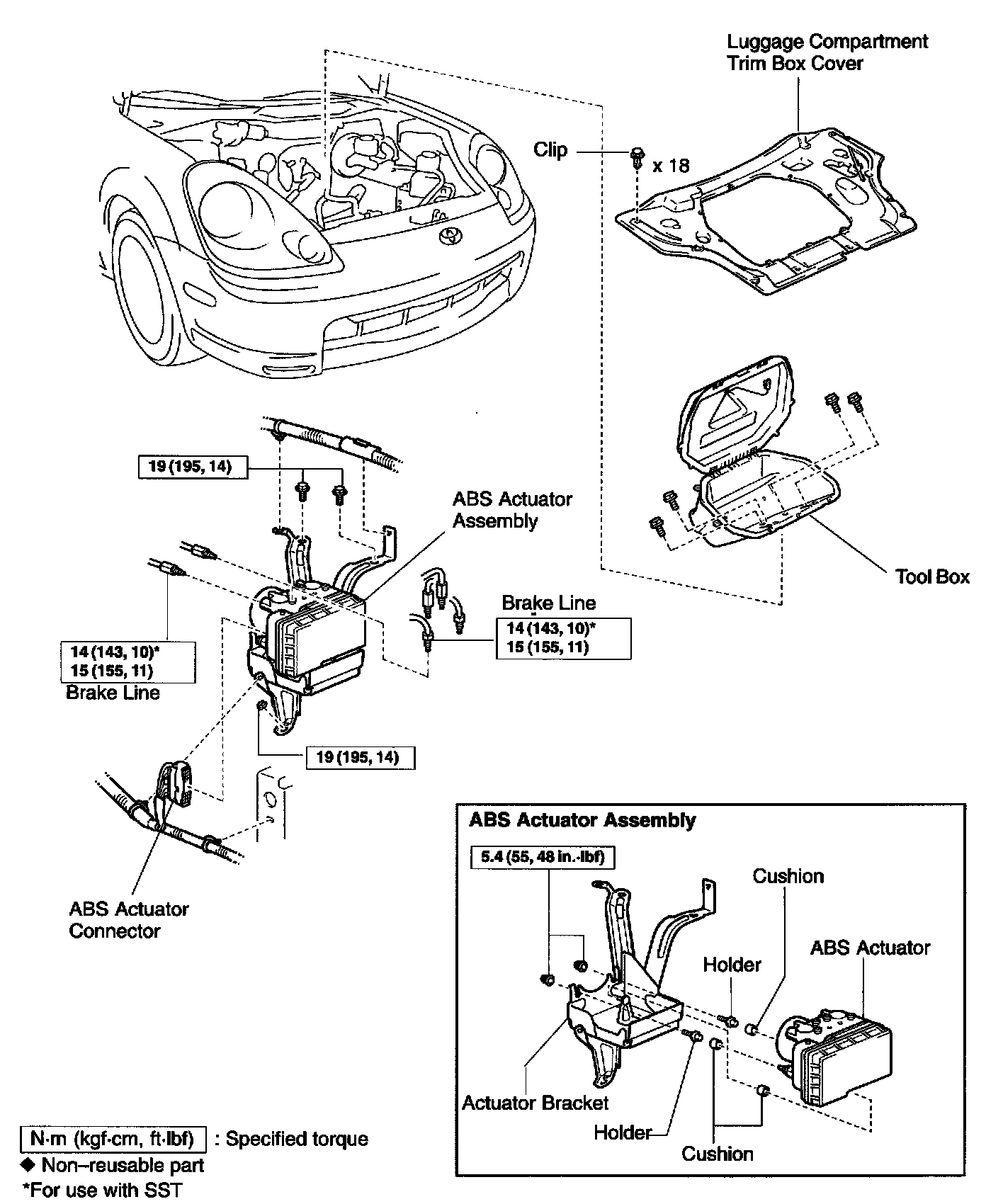

Hydraulic Control Assembly - Antilock Brakes
Hydraulic Control Assembly - Antilock Brakes
ABS ACTUATOR REPLACEMENT W/ RELATED COMPONENTS
