Home >> Toyota >> 2003 >> MR2 Spyder L4-1.8L (1ZZ-FE) >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Wheel Hub

Wheel Hub

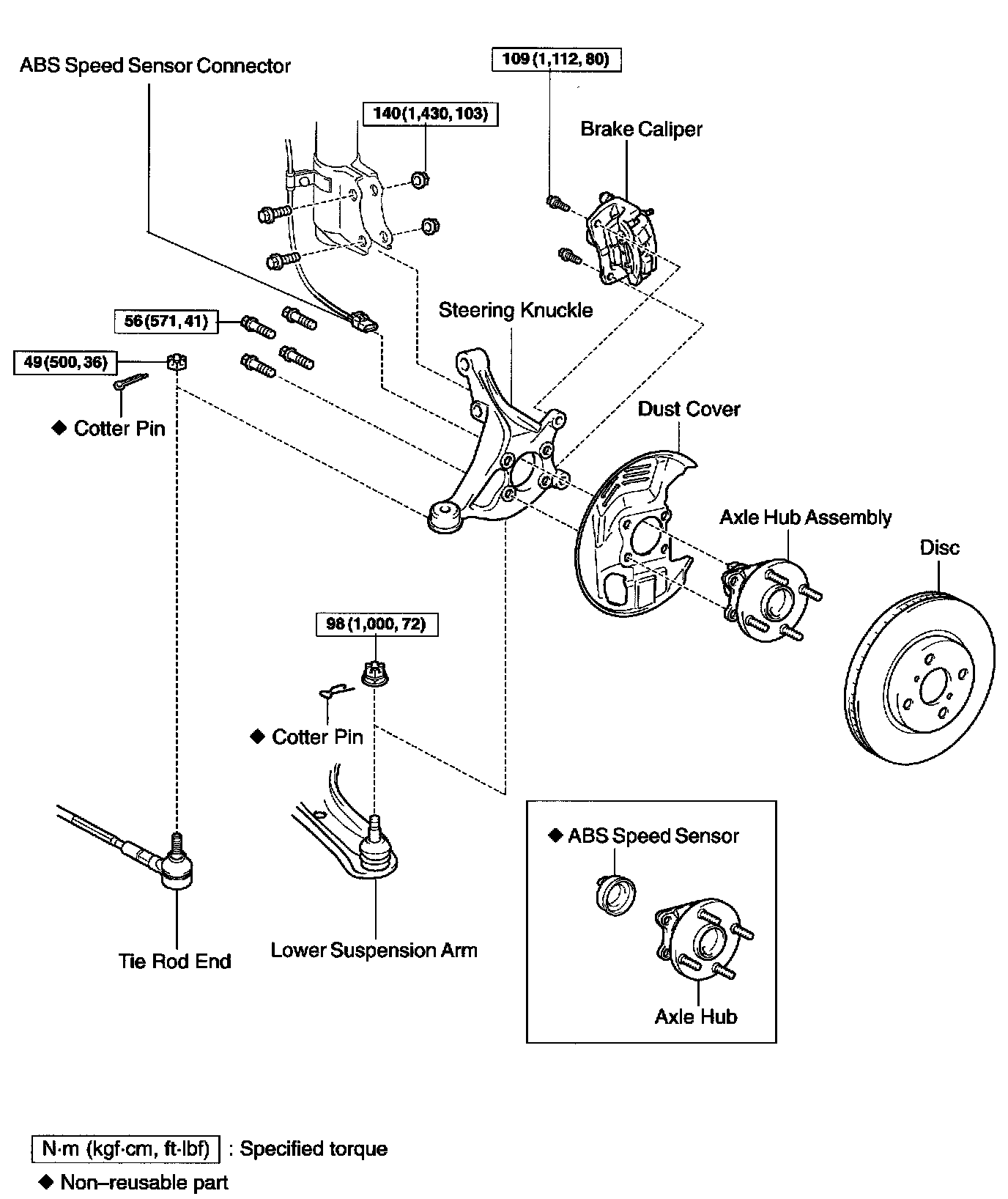

FRONT WHEEL HUB REPLACEMENT AND OVERHAUL W/ RELATED COMPONENTS
