Main Relay (Computer/Fuel System): Locations

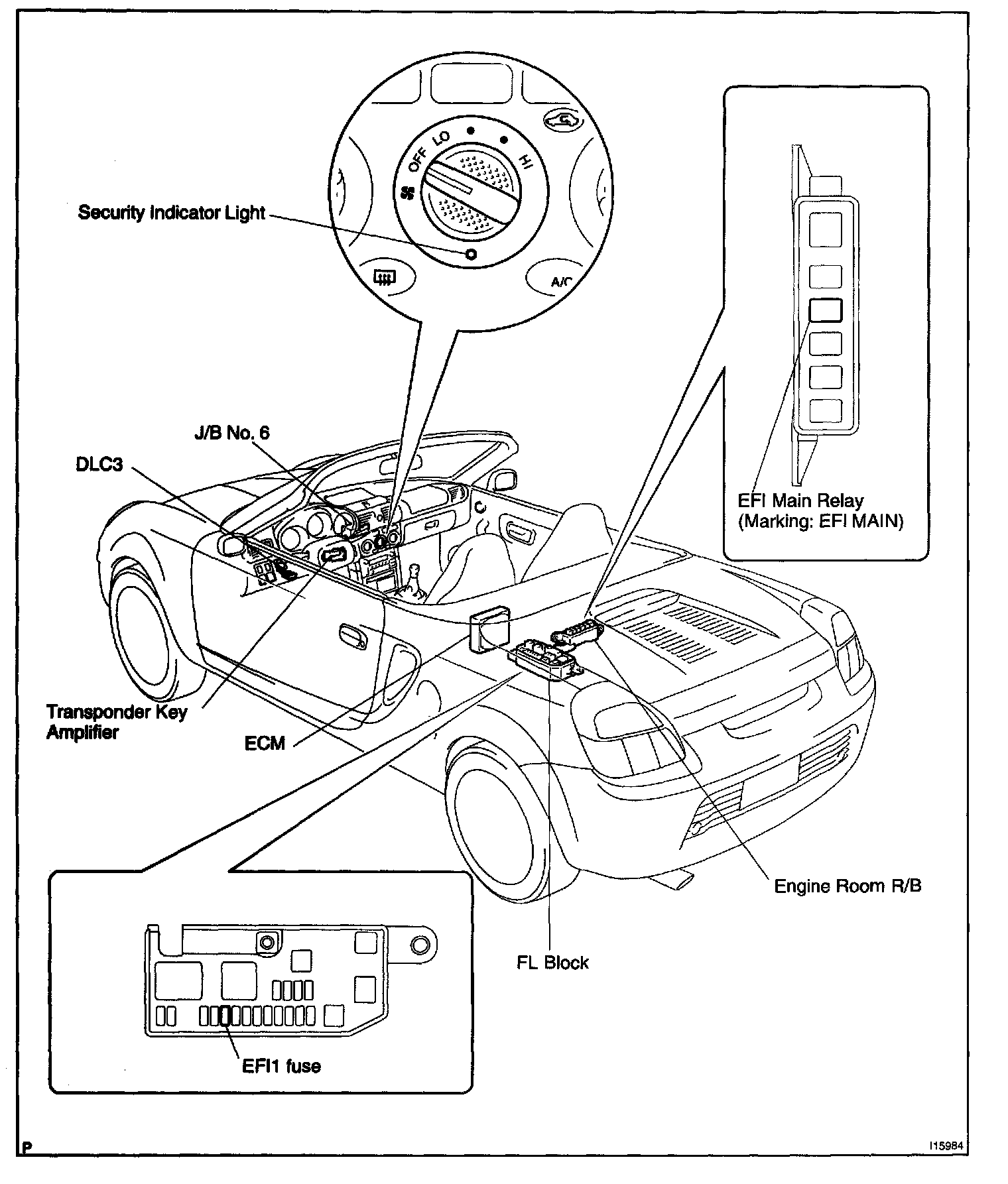

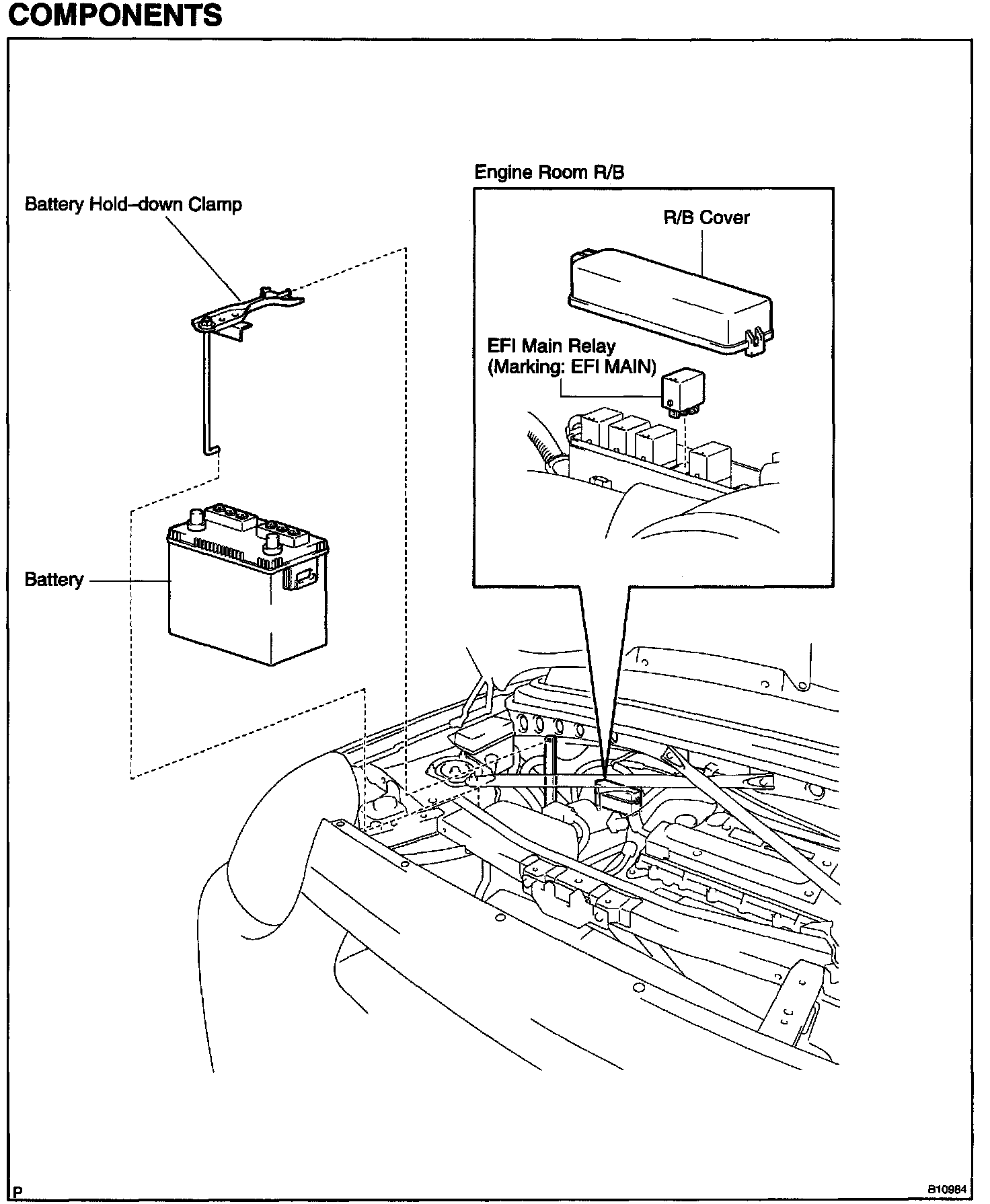

EFI Main Relay:
Engine:
Sequential Manual Transmission:
Engine Immobiliser System:

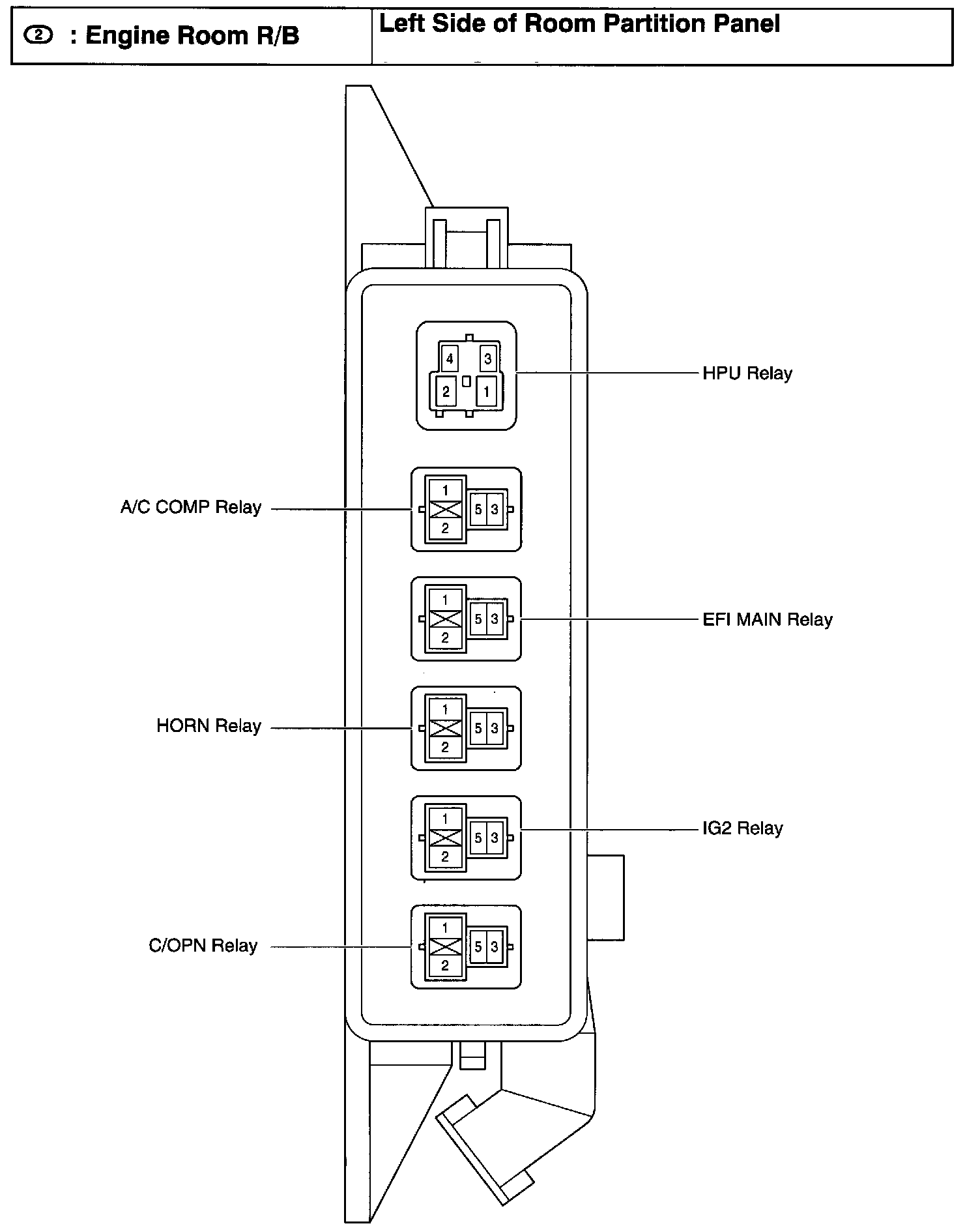

Engine Room R/B - Left Side Of Room Partition Panel:
