A/C Compressor Circuit

CIRCUIT DESCRIPTION

This sensor sends 1 pulse per engine revolution to the ECM. It the number ratio of the compressor speed divided by the engine speed is smaller than a predetermined value, the ECM turns the compressor off. And, the indicator flashes at about 1 second interval.

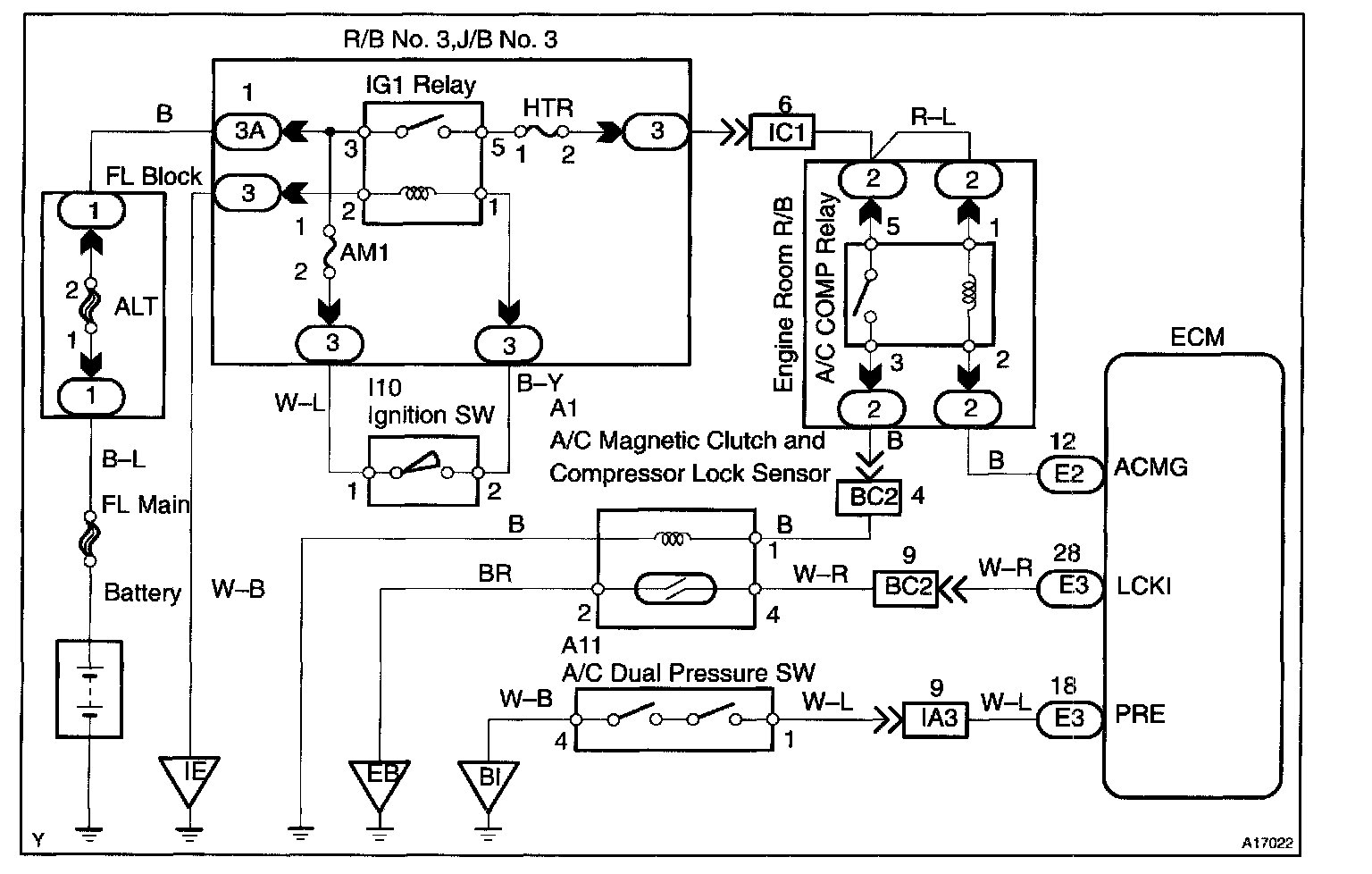

Wiring Diagram:

Step 1:

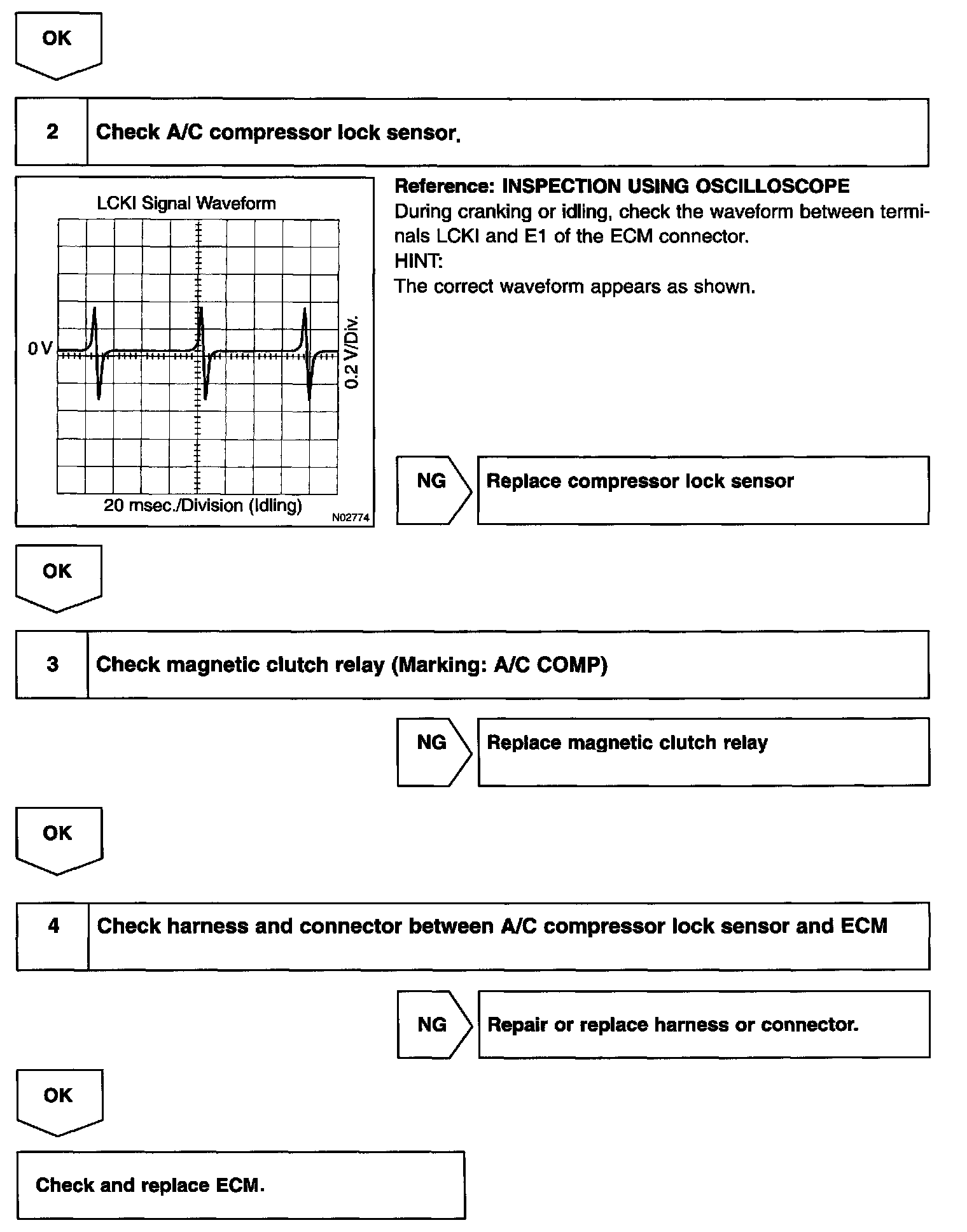

Step 1 (Continued) - 4:

INSPECTION PROCEDURE
