Normal Scan Data Values

ENGINE OPERATING CONDITION

NOTE: The values given for "Normal Condition" are representative values. So, a vehicle may still be normal even if its value varies from those listed here. So, do not decide whether a part is faulty or not.







a. CARB mandated signals.

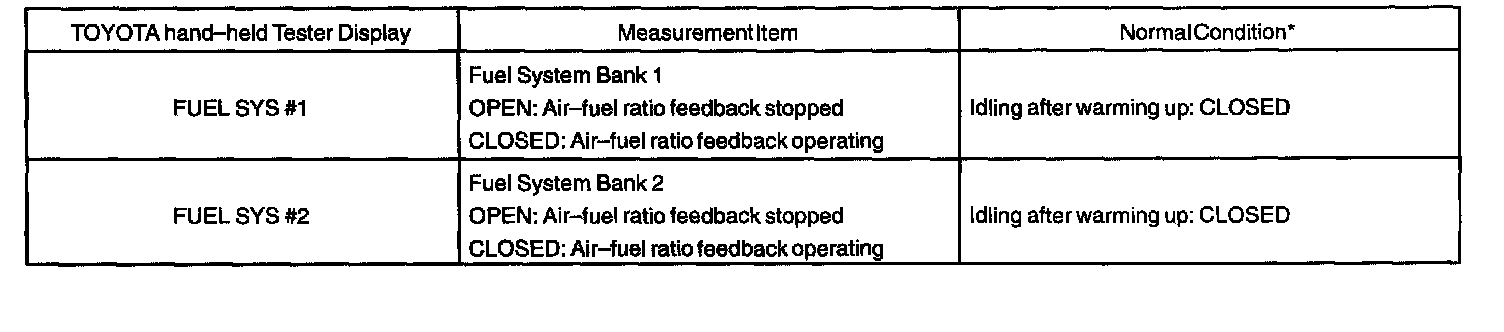

Part 1:

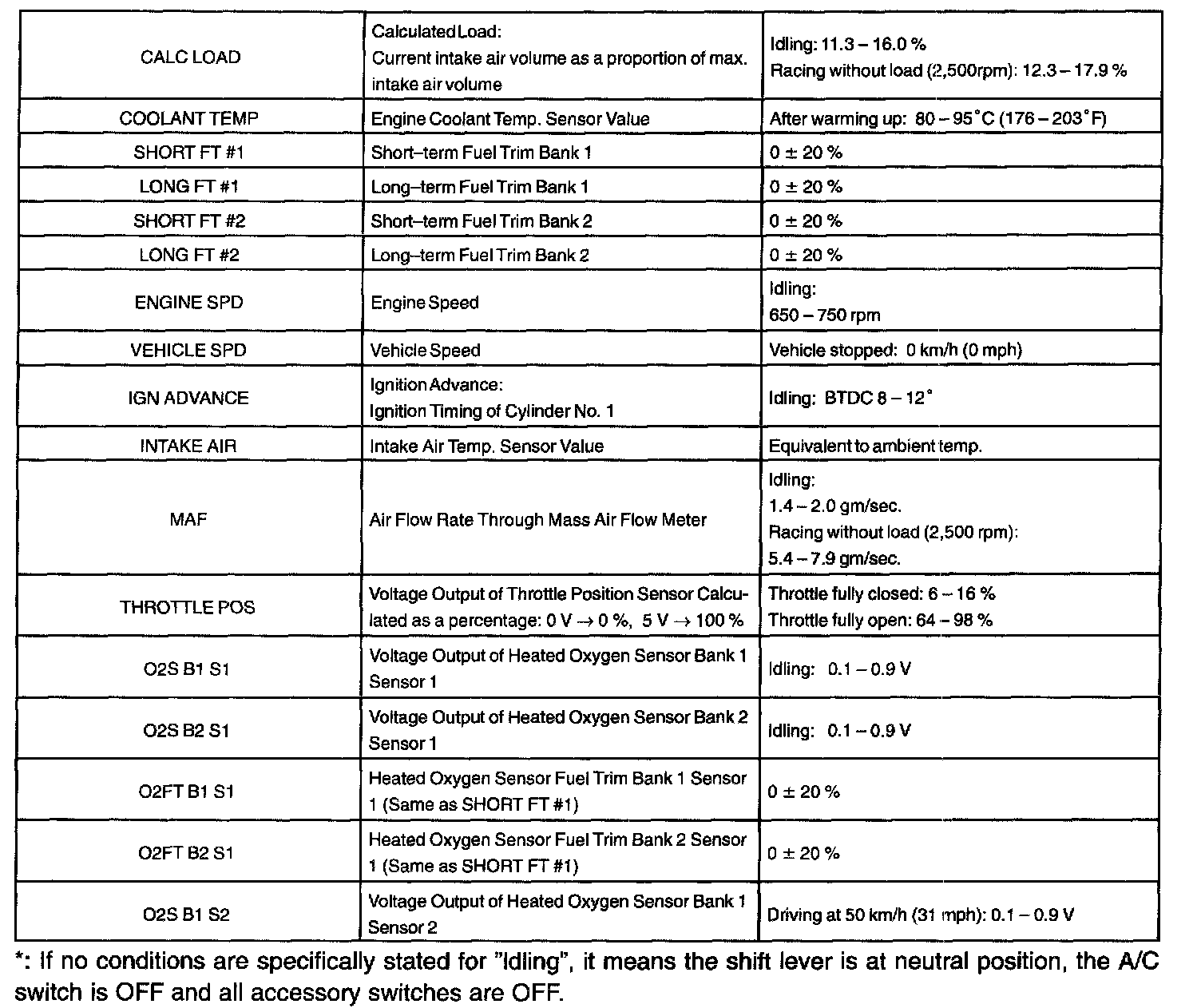

Part 2:

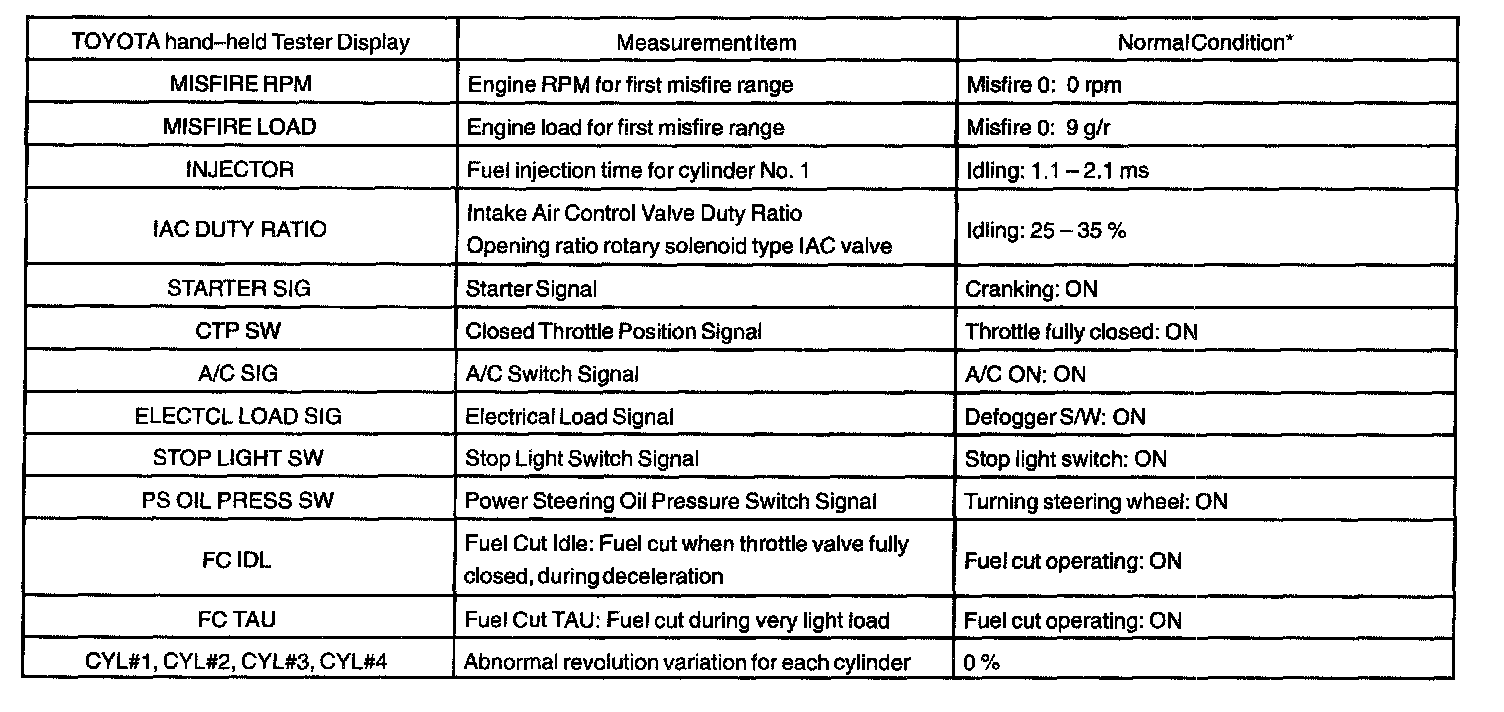

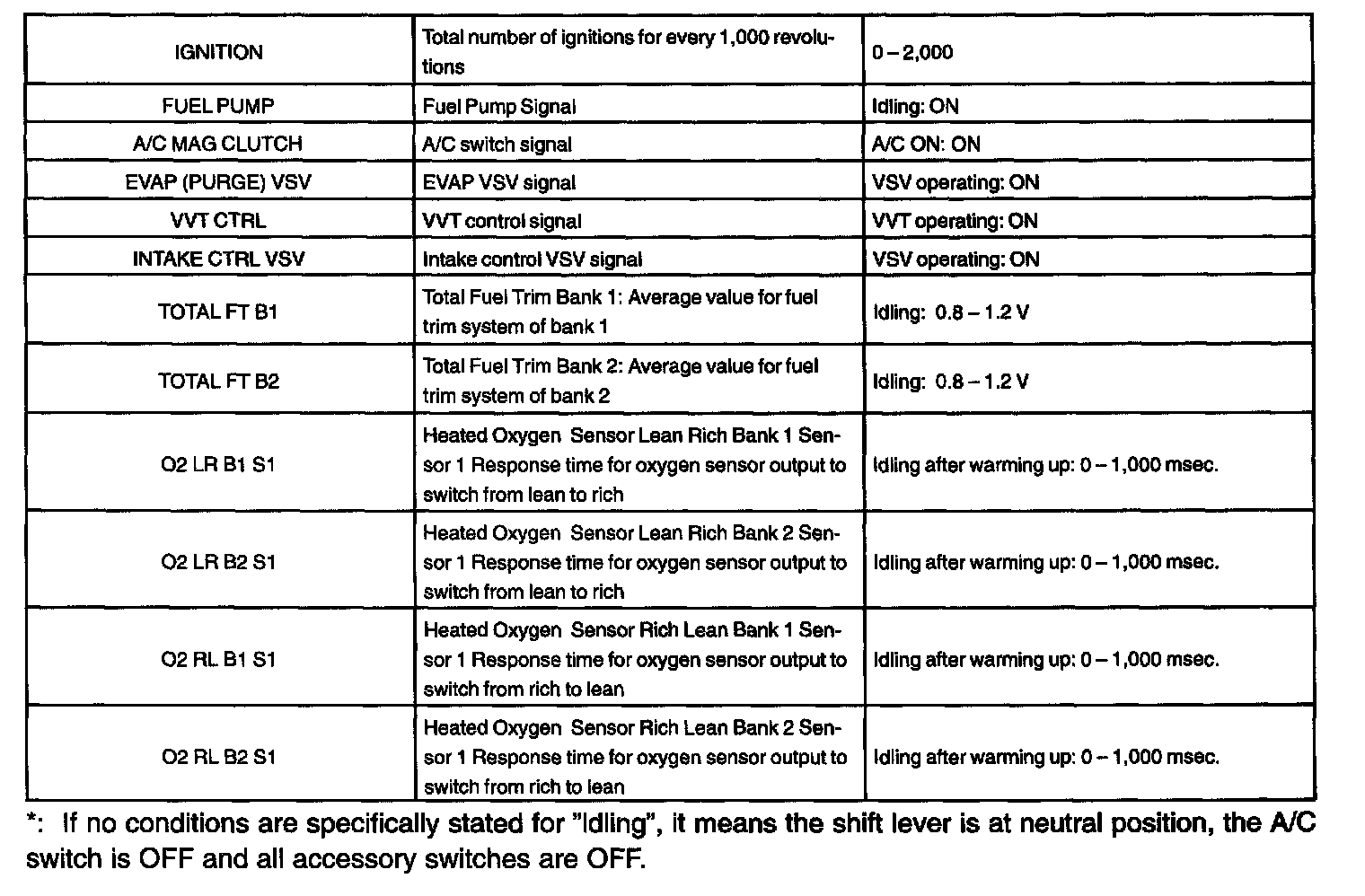

b. TOYOTA Enhanced Signals.
