Throttle Position Sensor: Locations

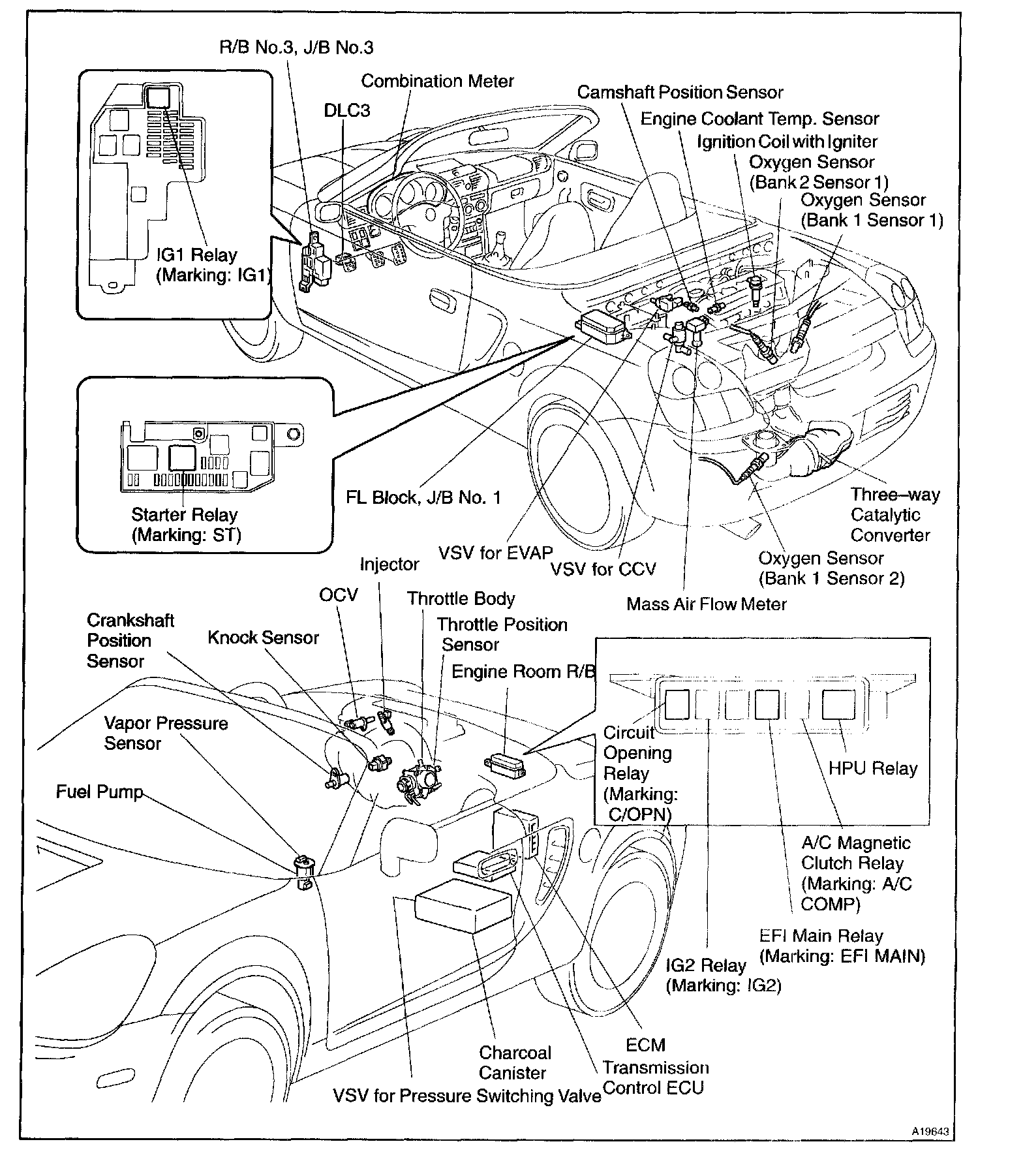

Engine:

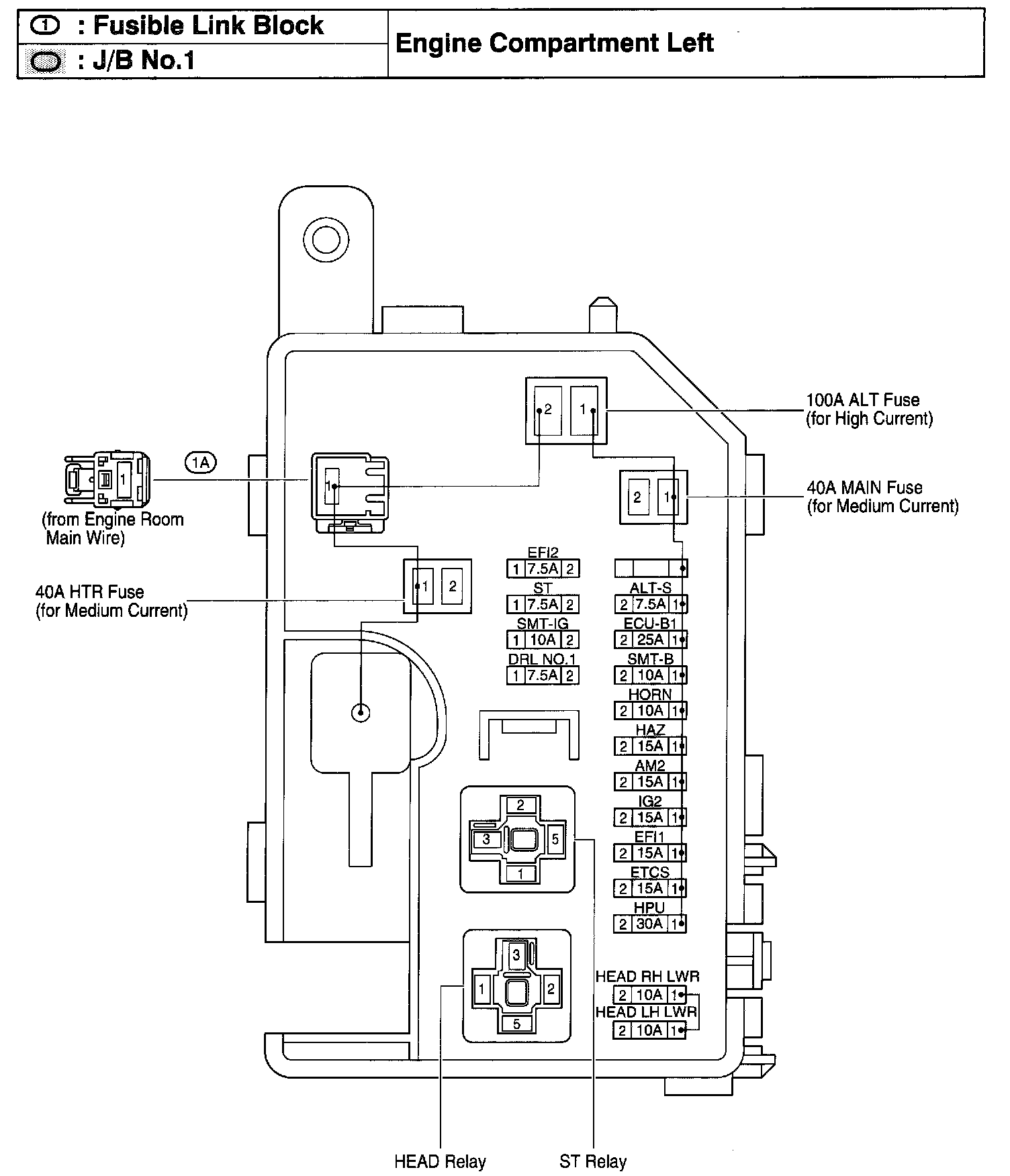

Fusible Link Block & J/B No.1 - Engine Compartment Left:
