Throttle Position Sensor: Testing and Inspection

ON-VEHICLE INSPECTION







INSPECT THROTTLE POSITION SENSOR
Disconnect the sensor connector.

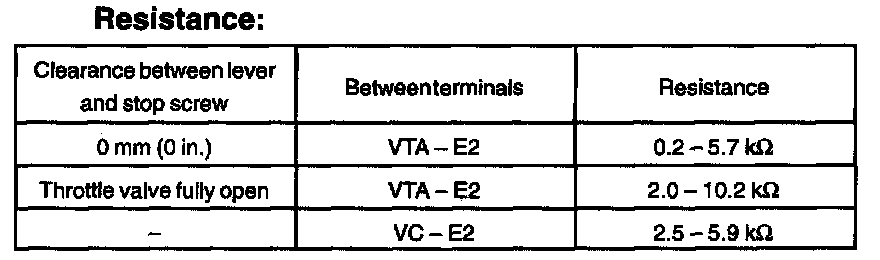

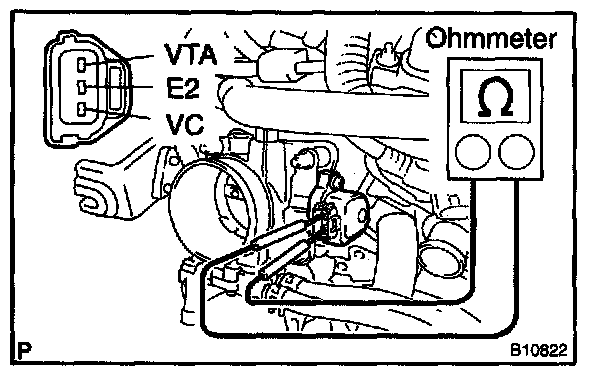

Using an ohmmeter, measure the resistance between the terminals.

Reconnect the sensor connector.
