Specifications
>>
Electrical Specifications
>>
Charging System
>>
System Specifications
System Specifications

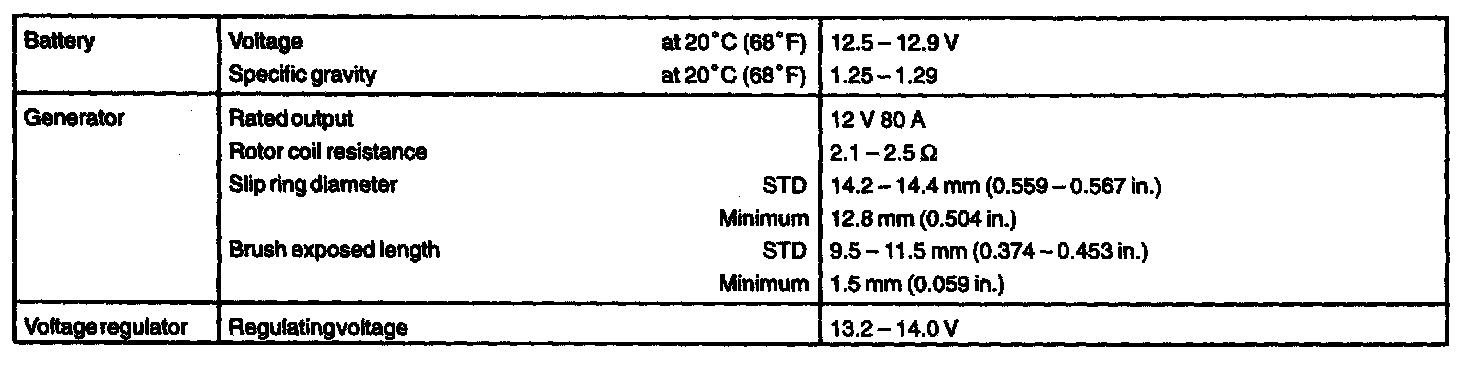

Charging Service Data:

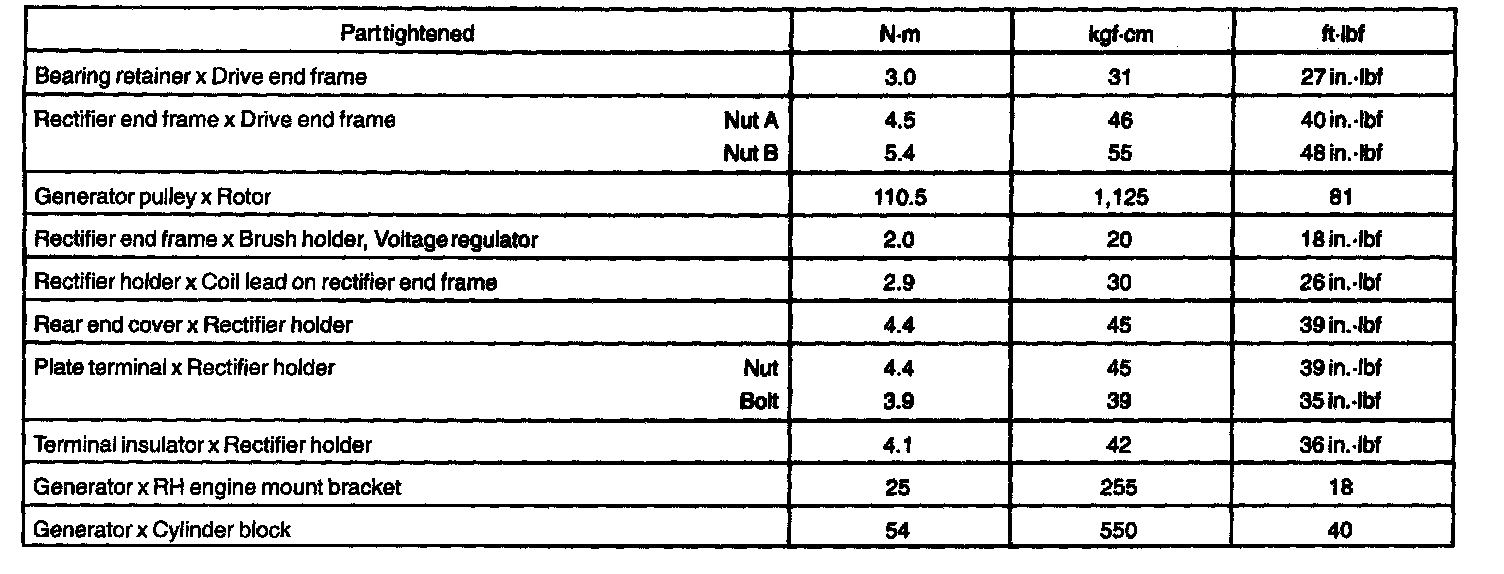

Charging Torque Specification:
