MR2 Spyder L4-1.8L (1ZZ-FE)
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Charging System
>>
Alternator
>>
Torque Specifications
Torque Specifications

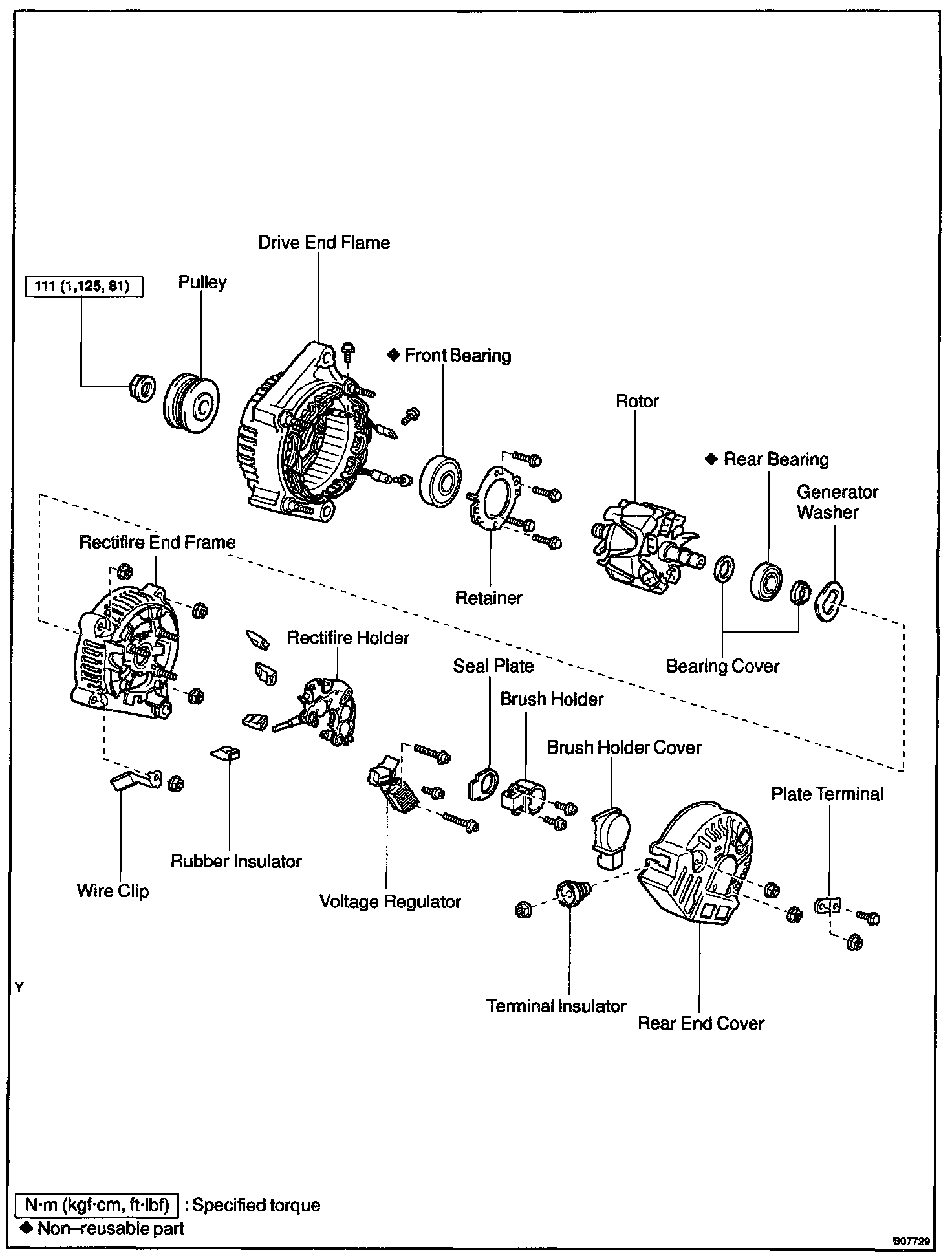

Generator:
Charging Torque Specification:

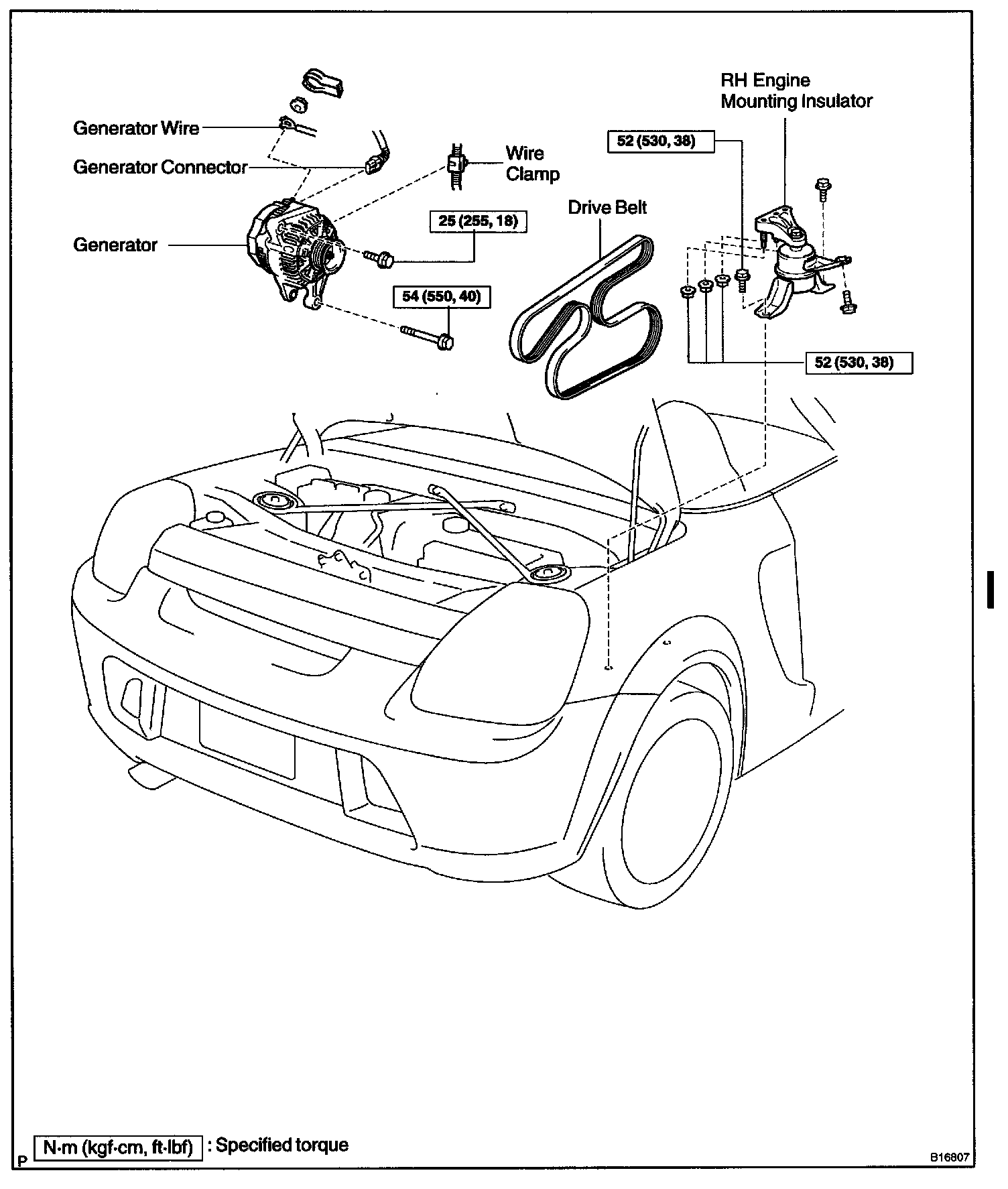

Generator (Part 2):
