Alarm Module: Testing and Inspection
TERMINALS OF ECUTerminals Of ECU/pinouts Part 1:
1. INSPECT TVIP ECU
Terminals Of ECU/pinouts Part 2:
Disconnect the TVIP ECU connector, and check each terminal of the disconnected connector.
If the result is not as specified, the vehicle's side may malfunction.
Terminals Of ECU/pinouts Part 3:

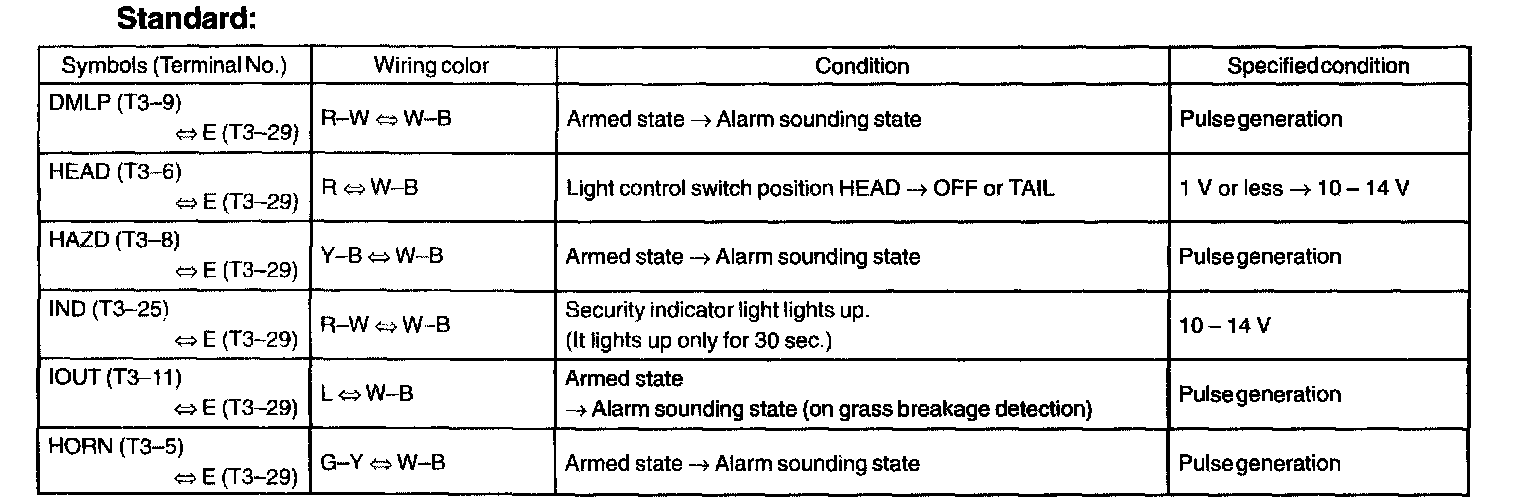

Reconnect the connector and check the each terminals.
If the result is not as specified, the TVIP ECU may malfunction.
Terminals Of ECU/pinouts:

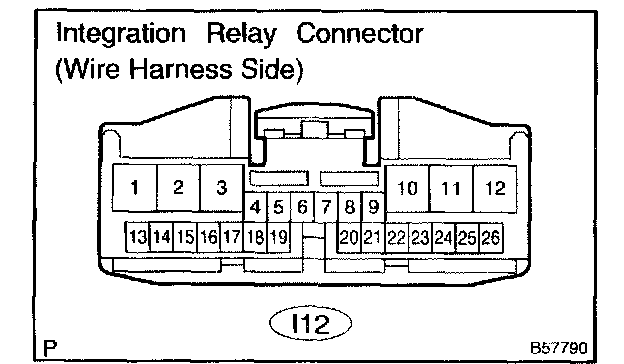

2. INSPECT INTEGRATION RELAY
Terminals Of ECU/pinouts:

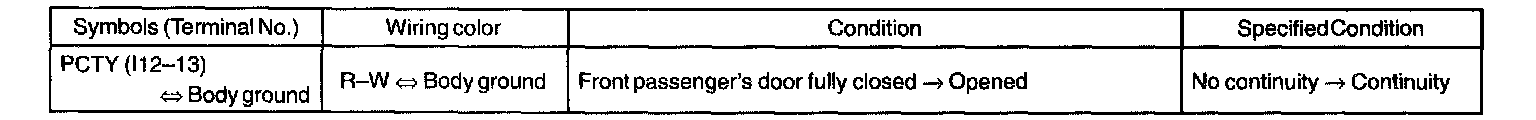

Disconnect the connector and check the continuity of each terminal of the disconnected connector.
If the result is not as specified, the vehicle's side may malfunction.
Terminals Of ECU/pinouts:

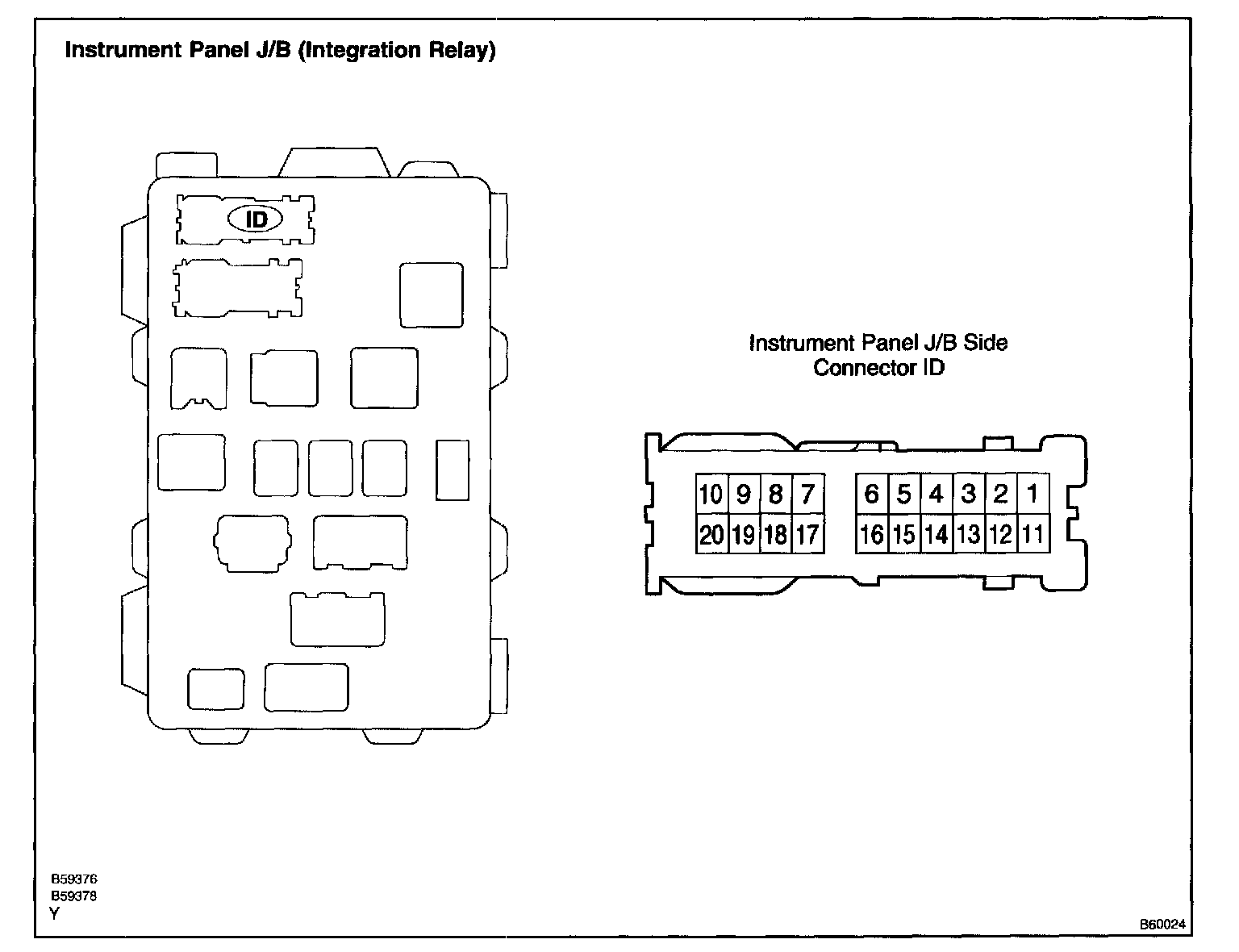

3. INSPECT INSTRUMENT PANEL J/B (INTEGRATION RELAY)
a. Inspect the DOOR fuse.
b. Disconnect the connector ID of the instrument panel J/B.
Terminals Of ECU/pinouts:

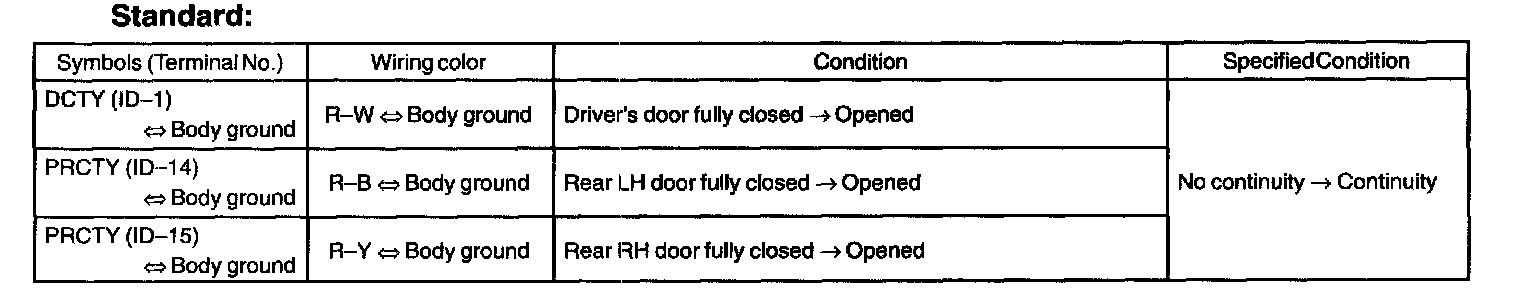

c. Check each terminal of the disconnected connector.
If the result is not as specified, the vehicle's side may malfunction.
