Matrix 2WD L4-1.8L (1ZZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Engine
>>
Cylinder Head Gasket
Cylinder Head Gasket

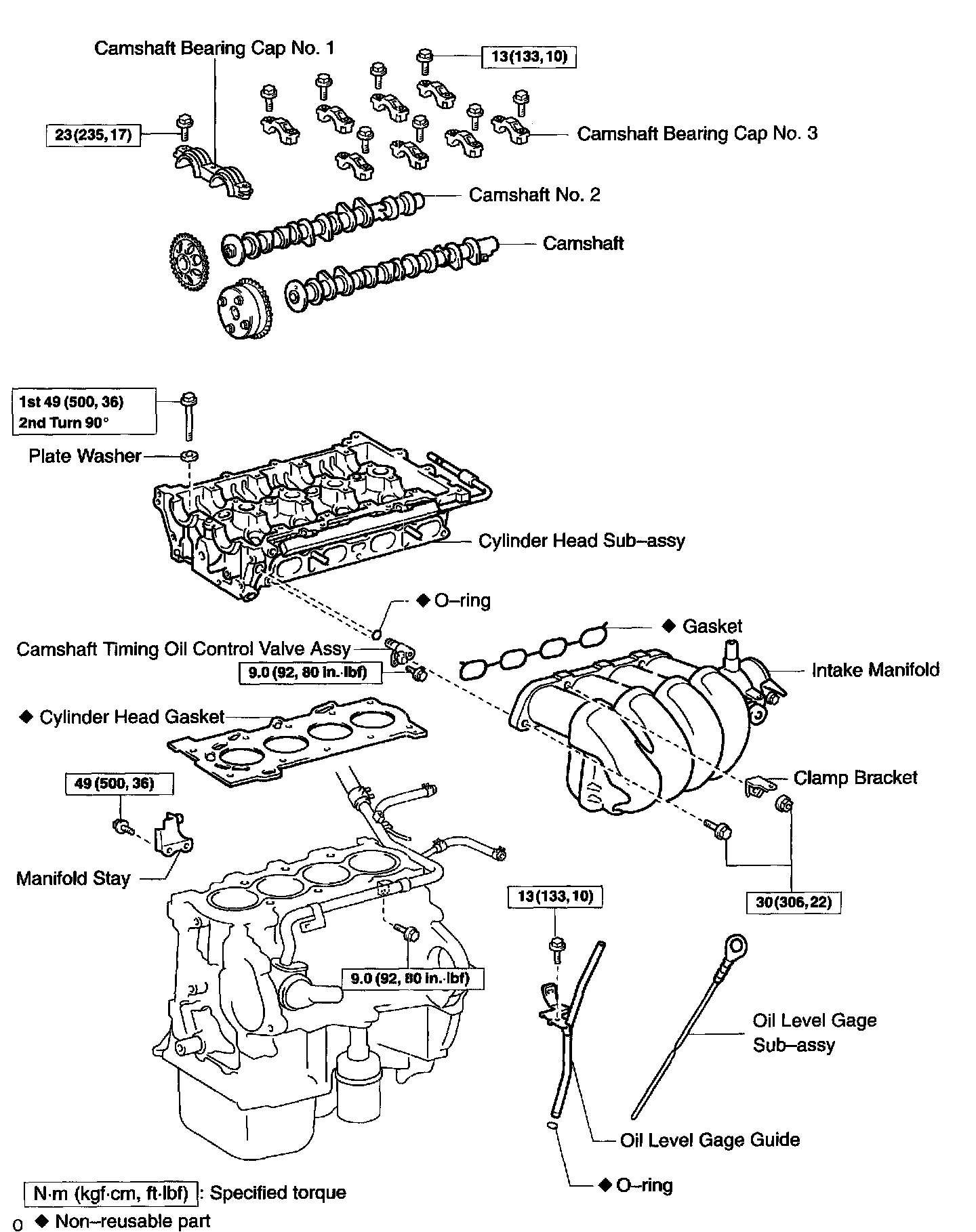

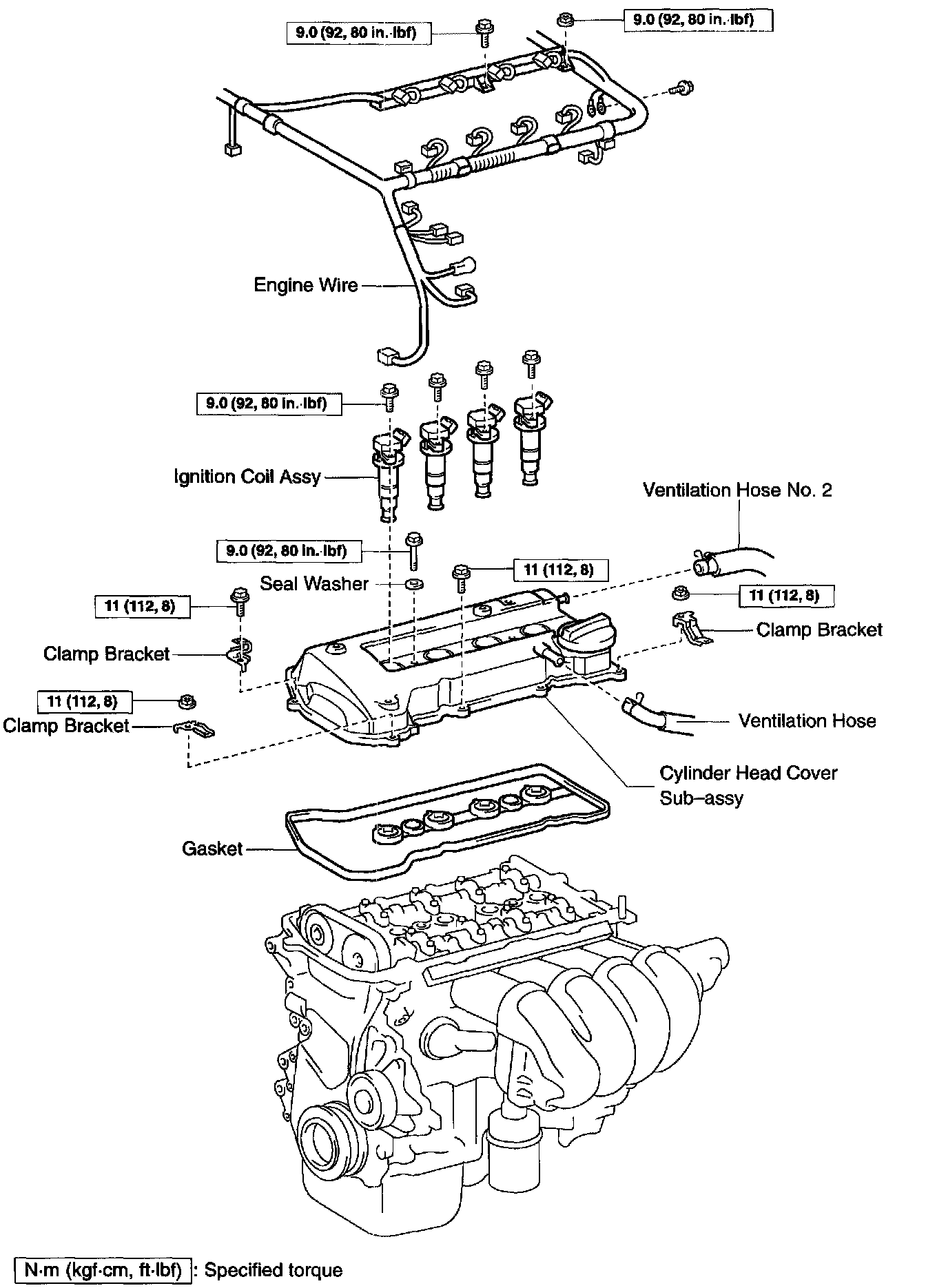

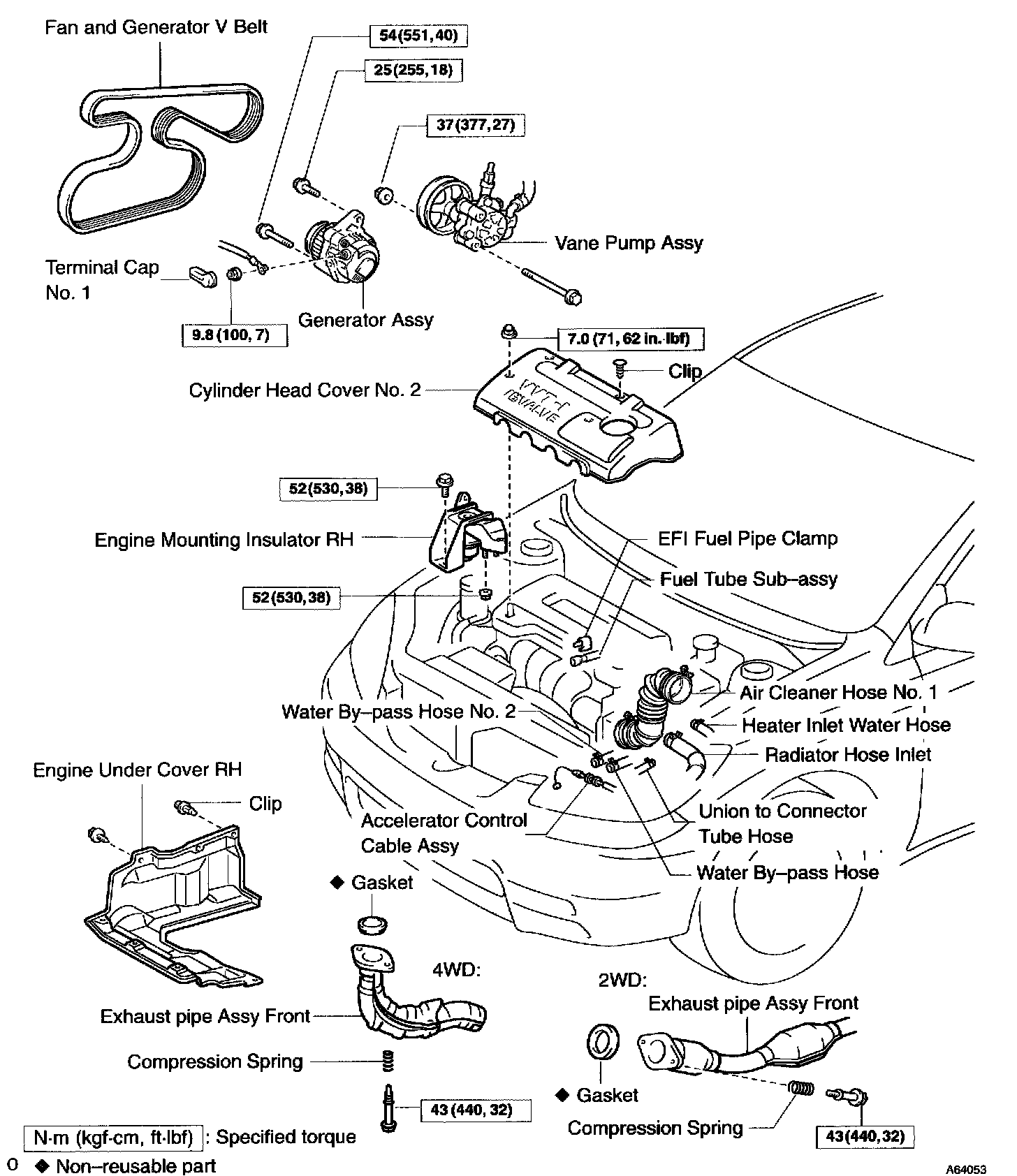

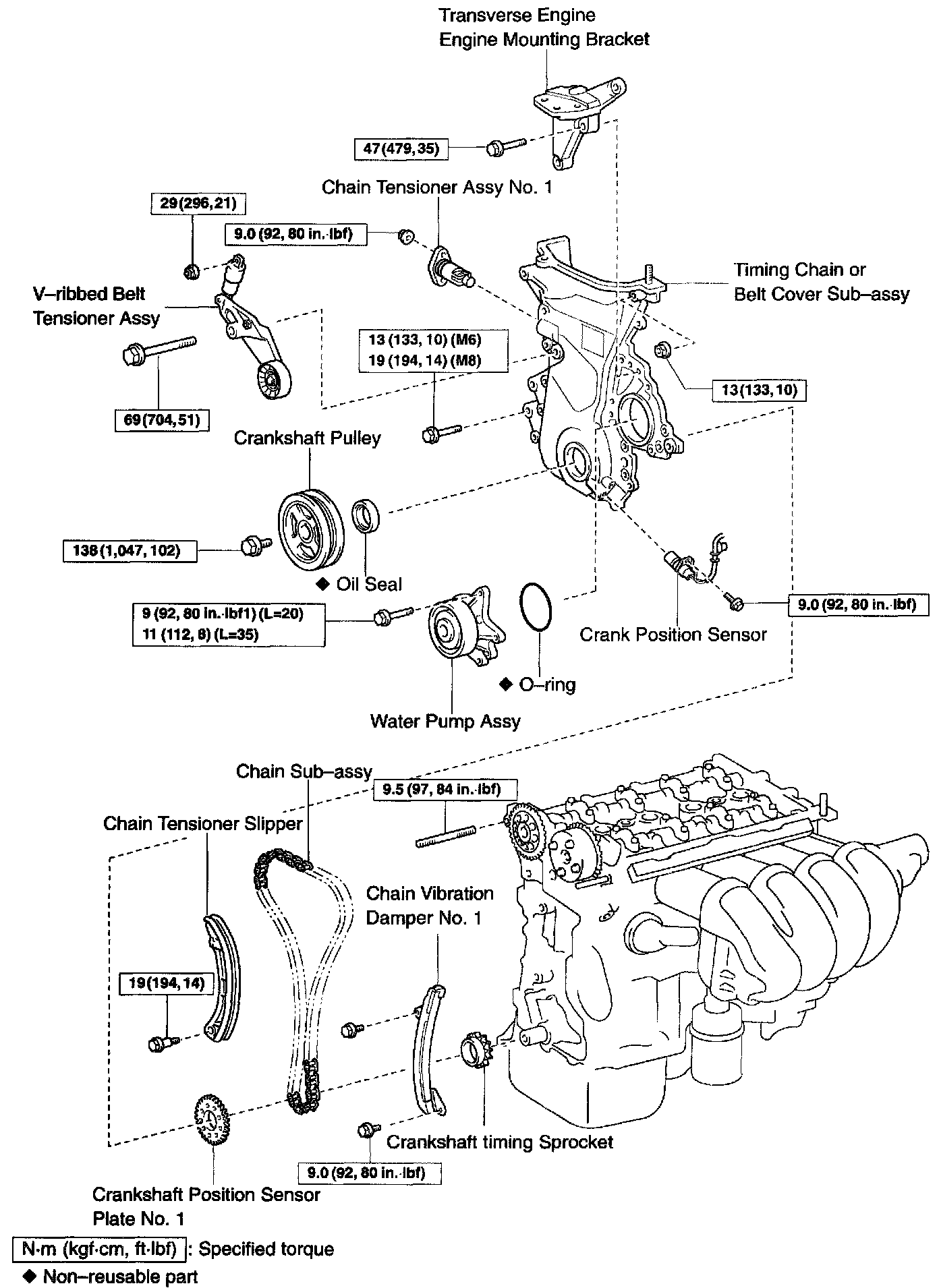

CYLINDER HEAD GASKET
REPLACEMENT W/ RELATED COMPONENTS
