Operation CHARM
: Car repair manuals for everyone.
Home
>>
Toyota
>>
2003
>>
Matrix 2WD L4-1.8L (1ZZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Suspension
>>
System Diagram
>>
Rear
Rear

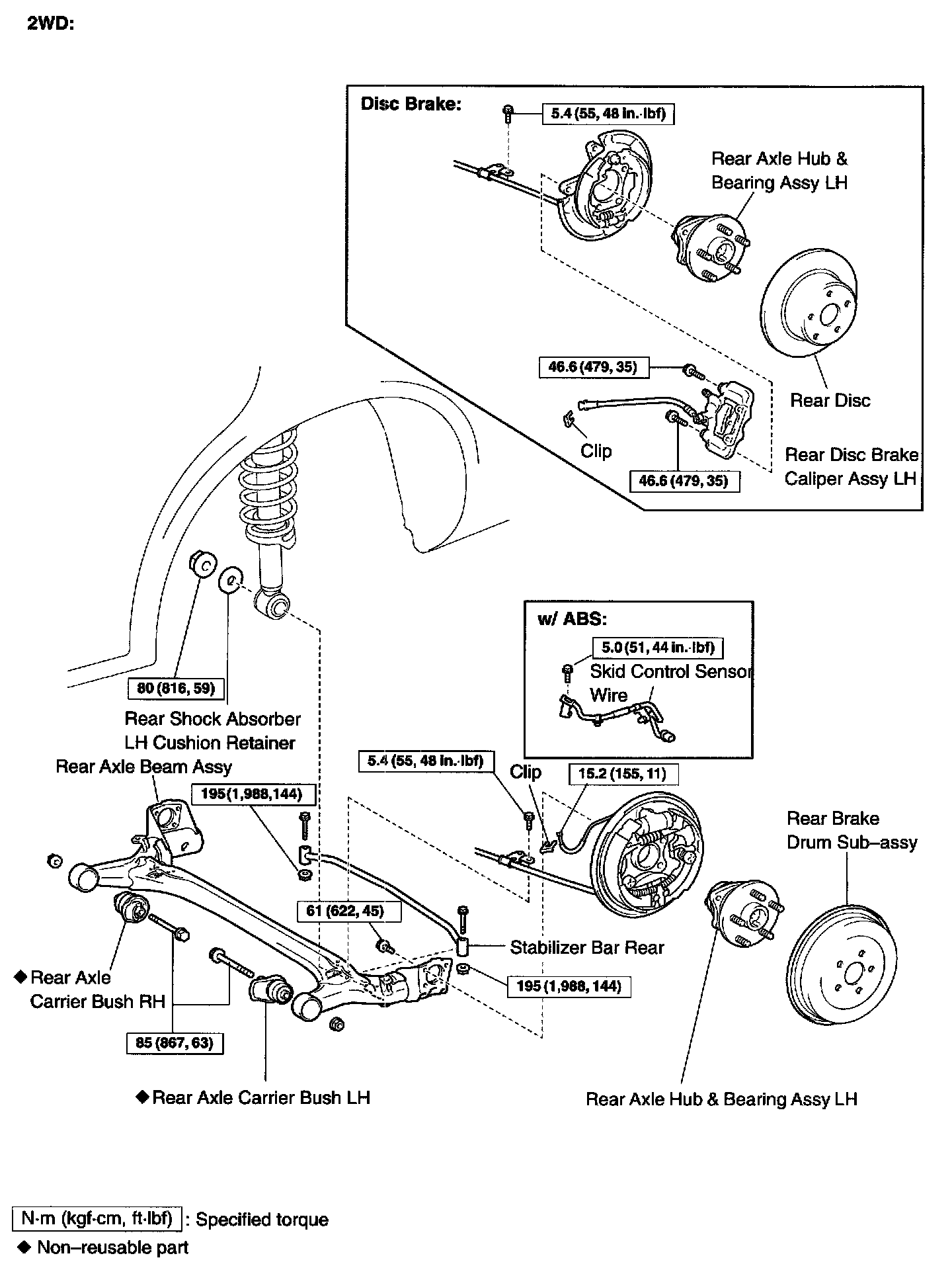

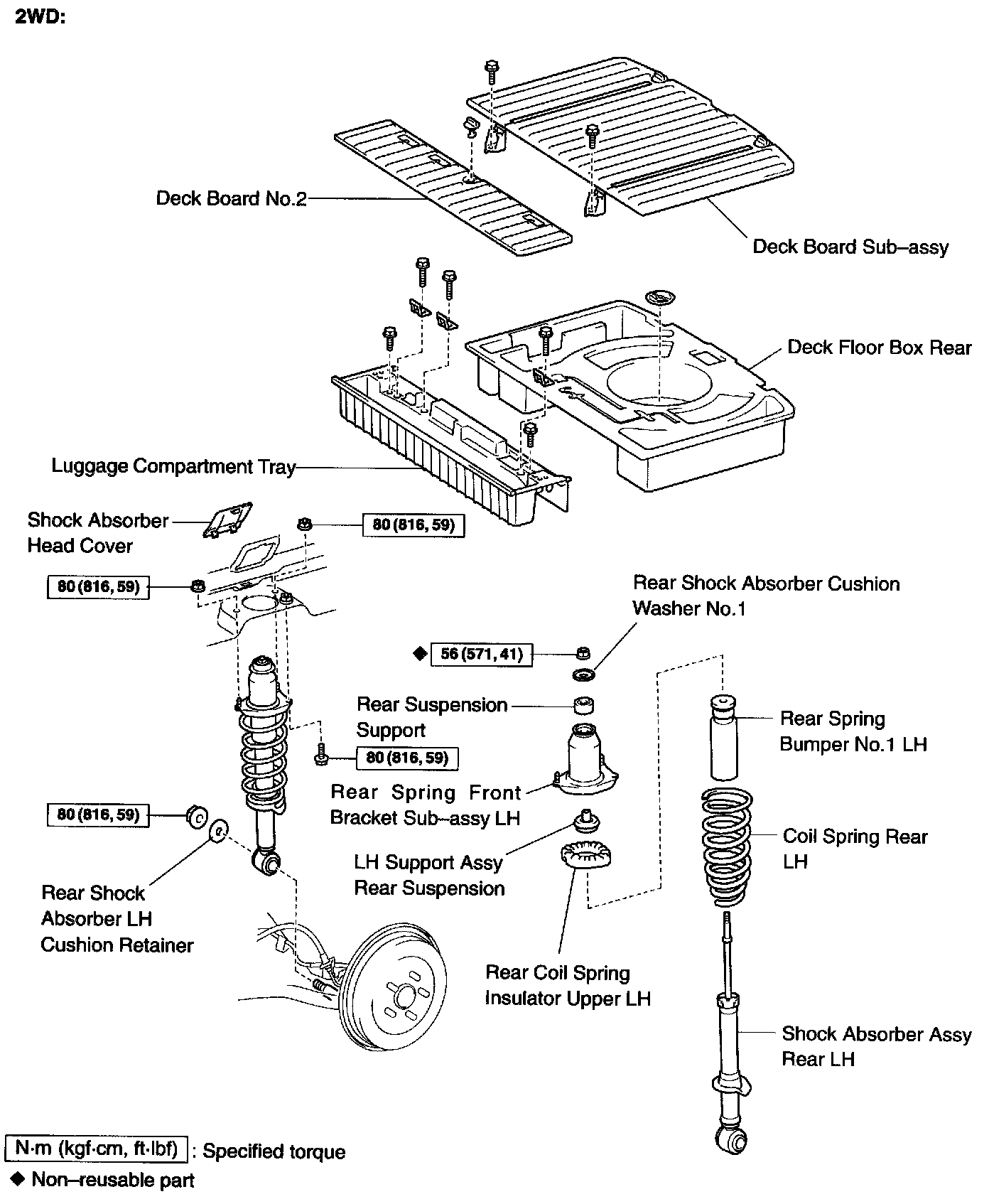

REAR
SUSPENSION
COMPONENTS
Part 1 of 2
Part 2 of 2
