Locations
>>
Connector Locations
Connector Locations

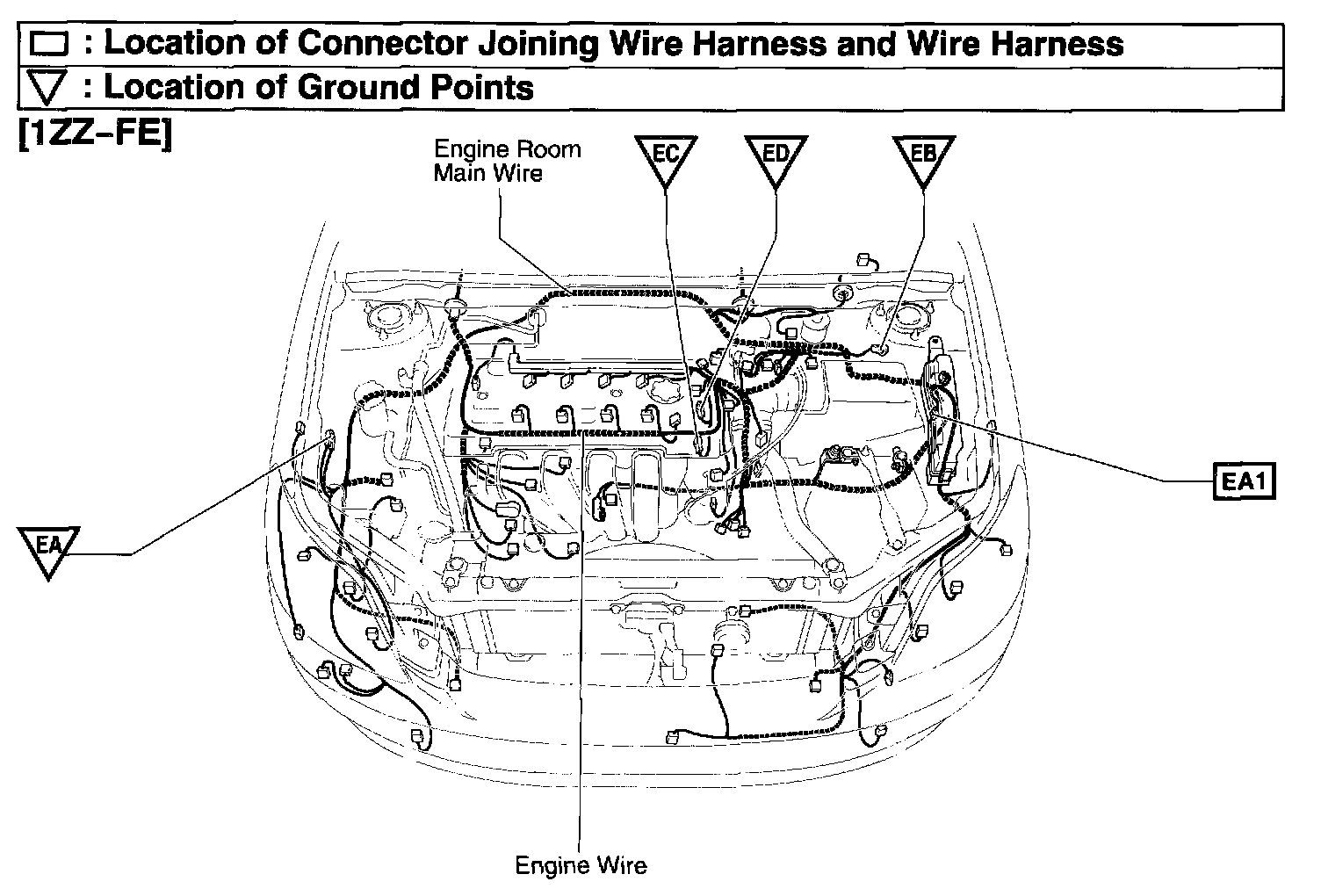

EA1, EA - ED:

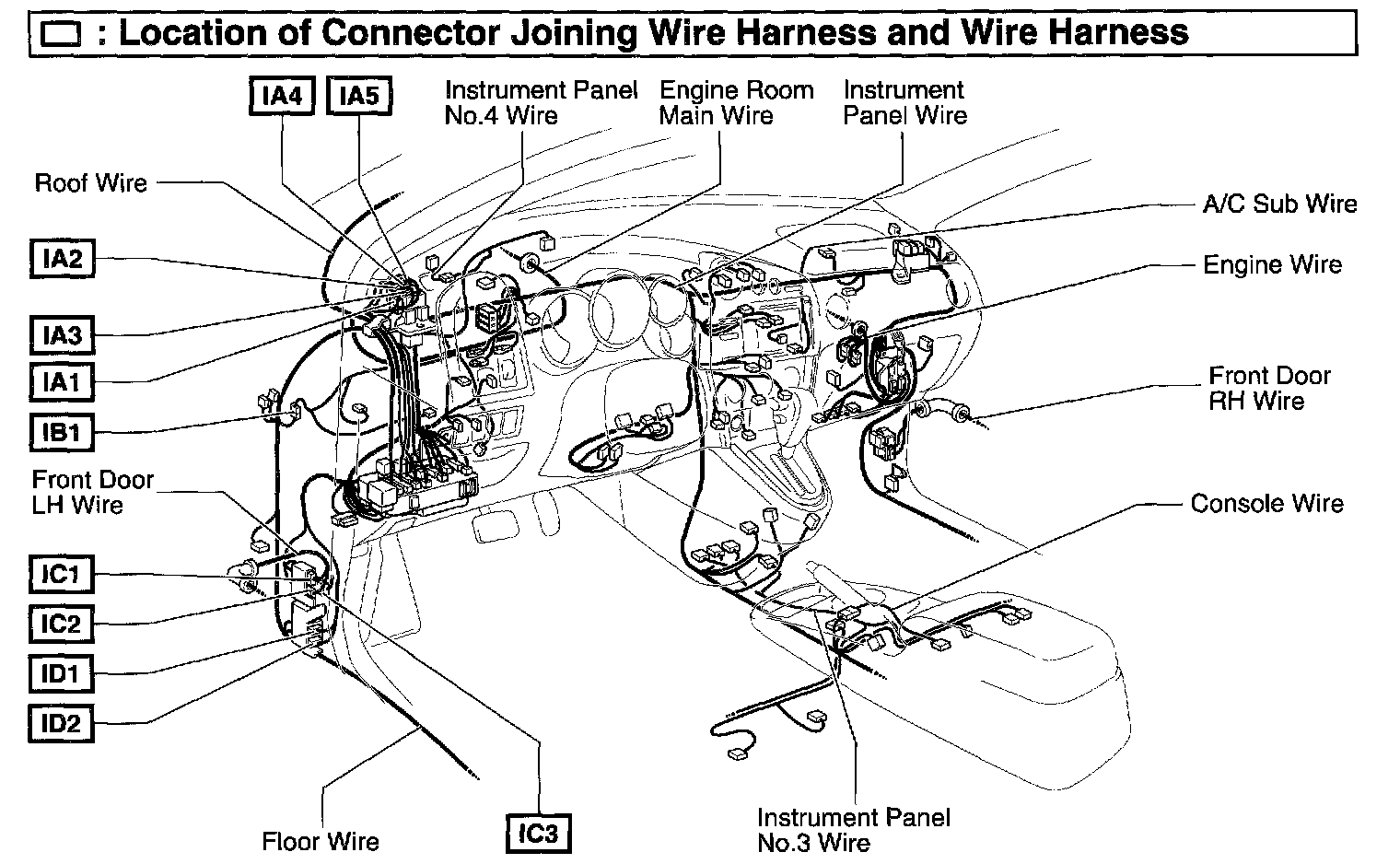

IA1 - ID2:

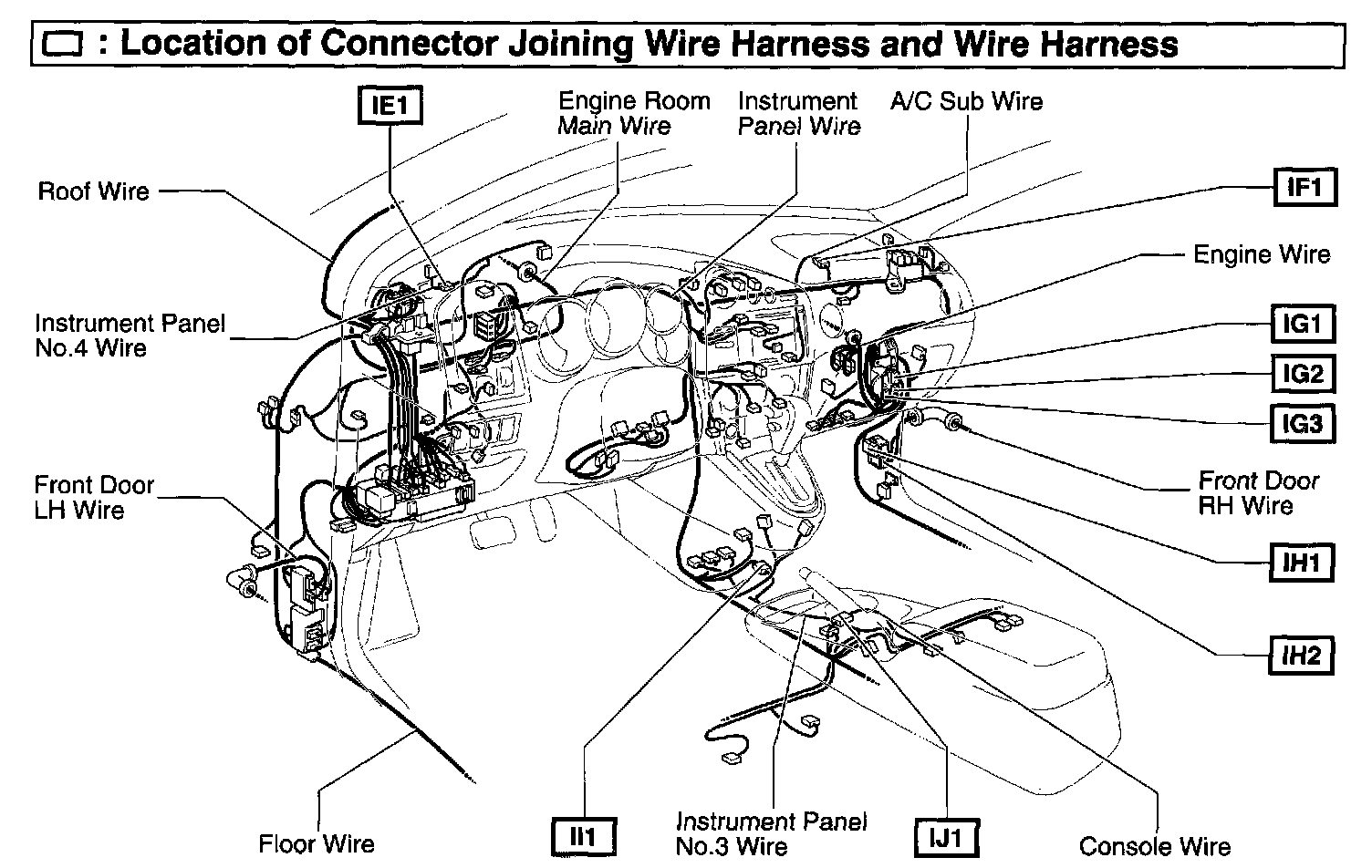

IE1 - IJ1:

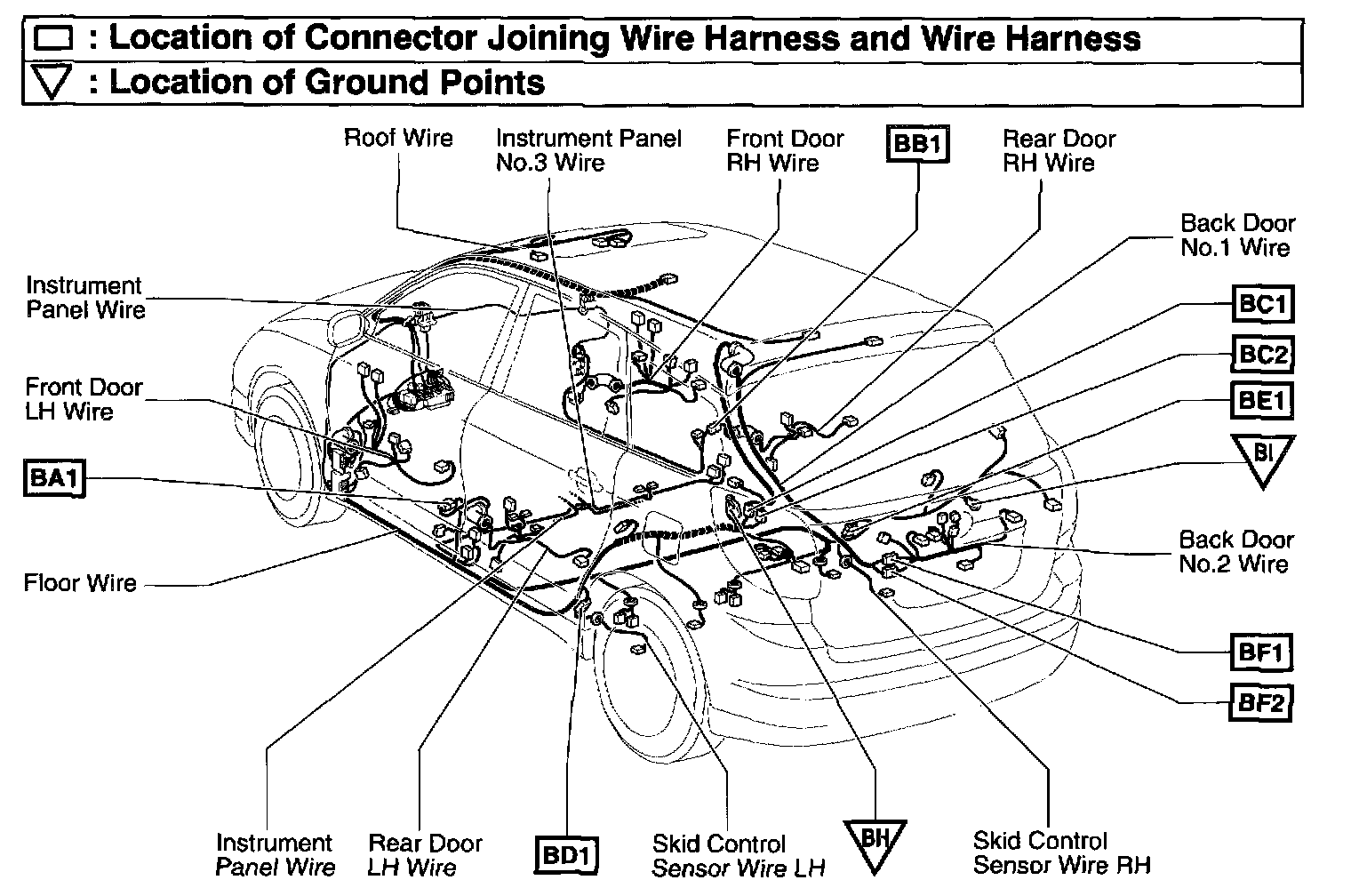

BA1 - BF2, BH - BI:
