Engine Control Module
Engine Control Module

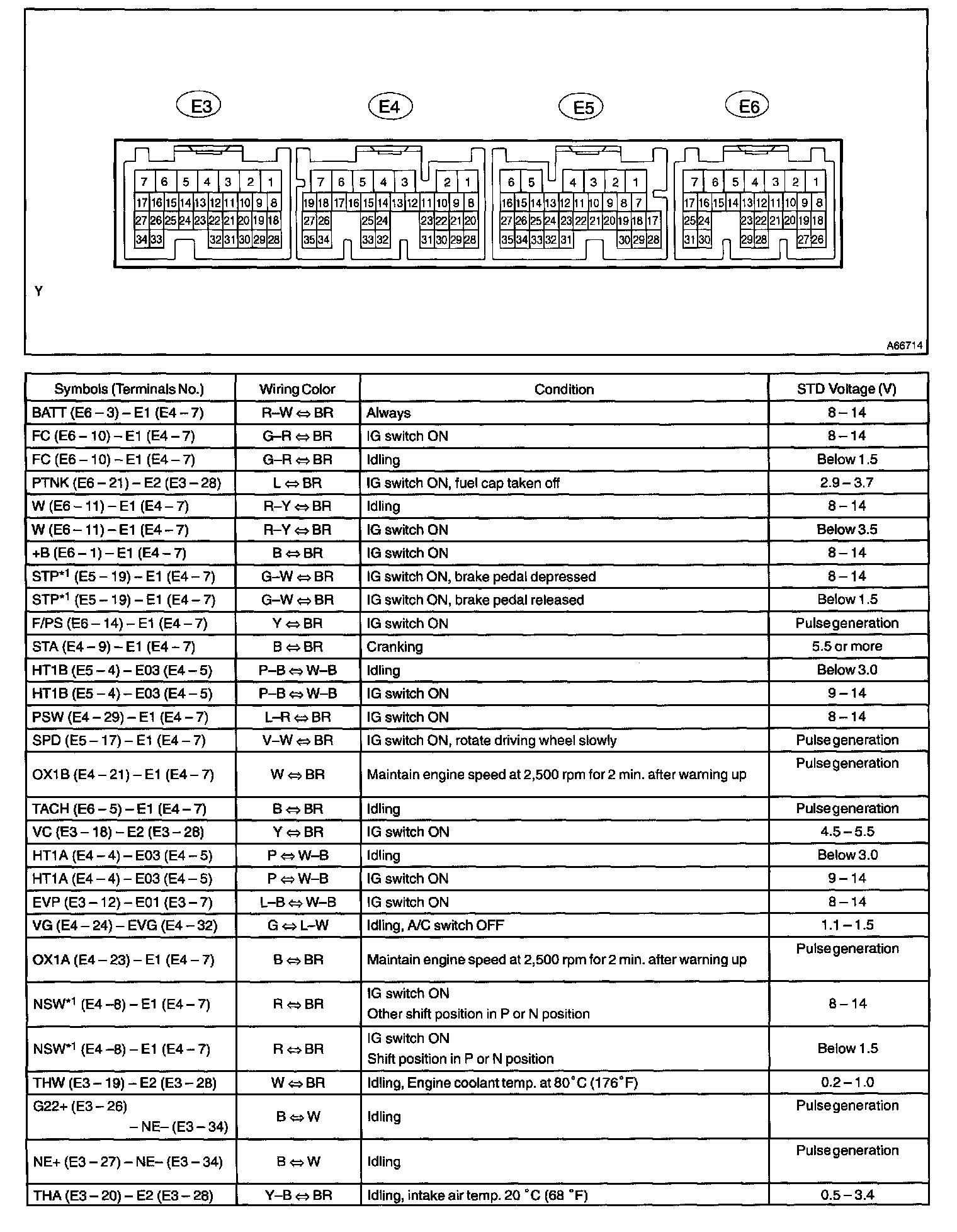

Terminals Of ECM/pinouts Part 1:

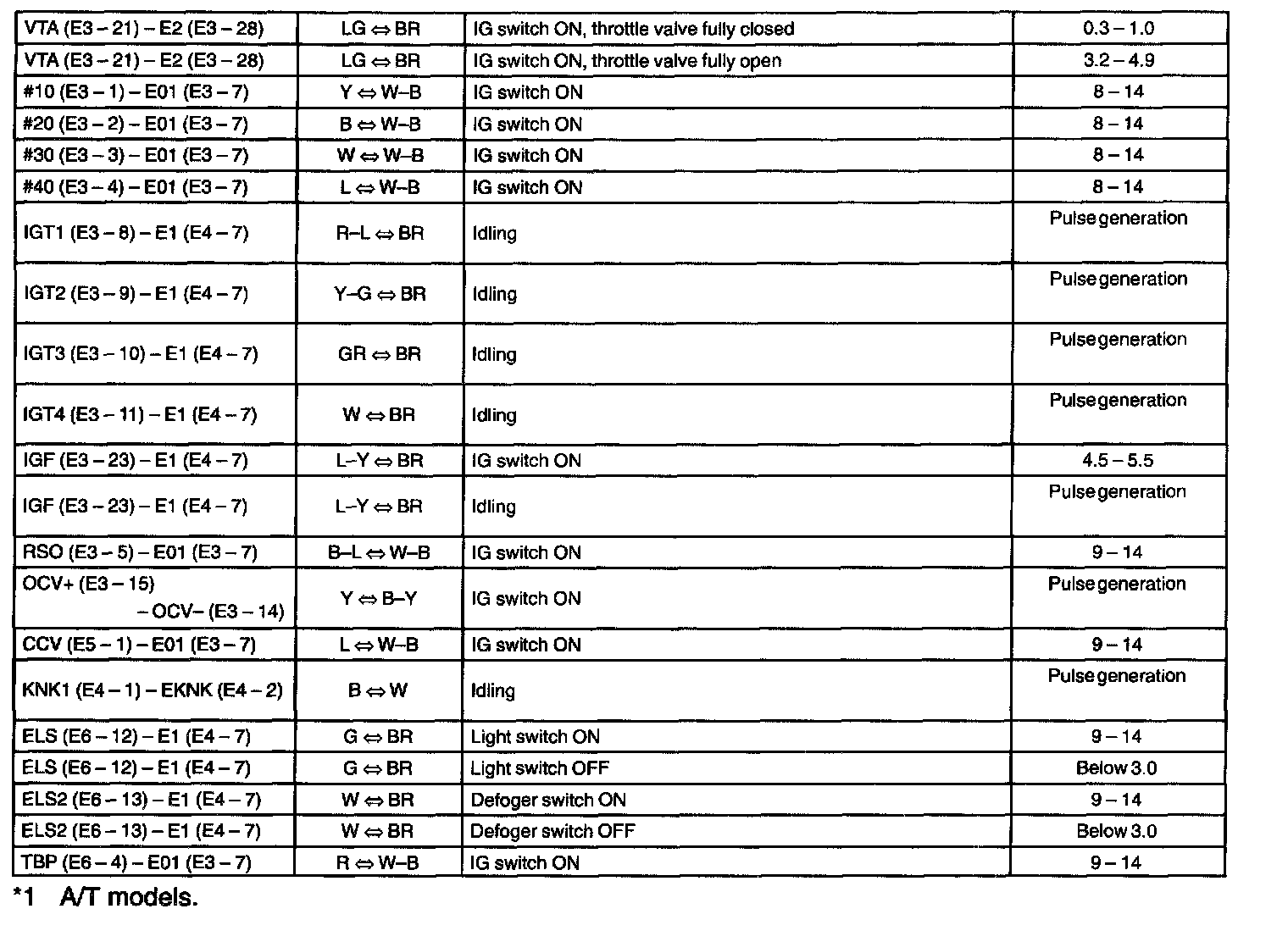

Terminals Of ECM/pinouts Part 2:
