A/T - U341F Solenoid Identification

TRANSMISSION & CLUTCH
TC011-05

Title:
U341F TRANSMISSION SOLENOID
IDENTIFICATION

Models:
'03 - '05 Matrix (AWD)

August 1, 2005

Introduction

This service bulletin provides information on the proper identification of the 5 solenoids used in the U341F transmission.

Applicable Vehicles

^ 2003 - 2005 model year Matrix vehicles equipped with All Wheel Drive.

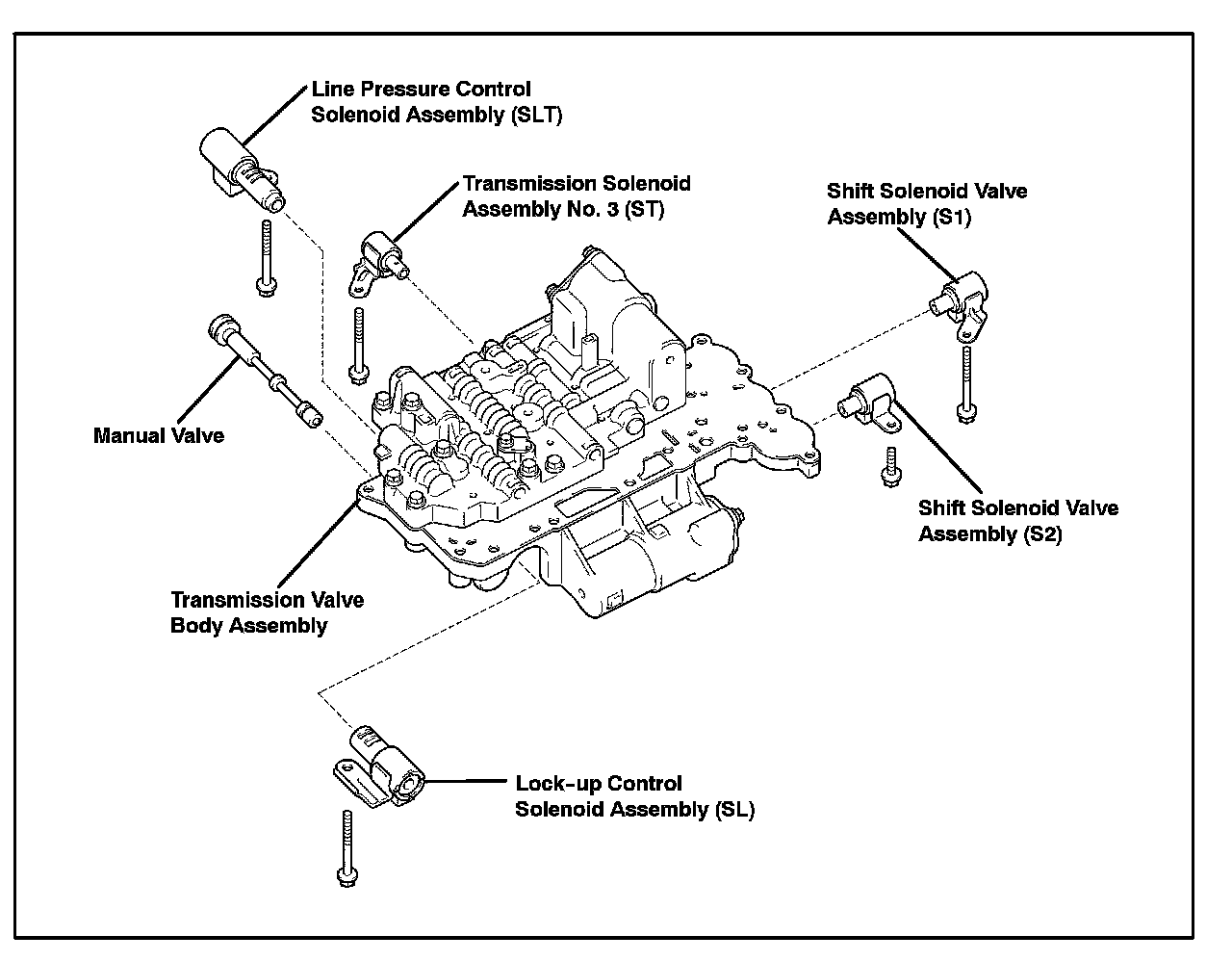

Transmission Solenoid Identification

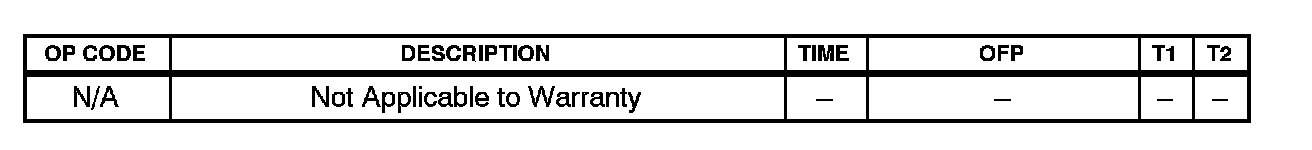

Warranty Information

Parts Information

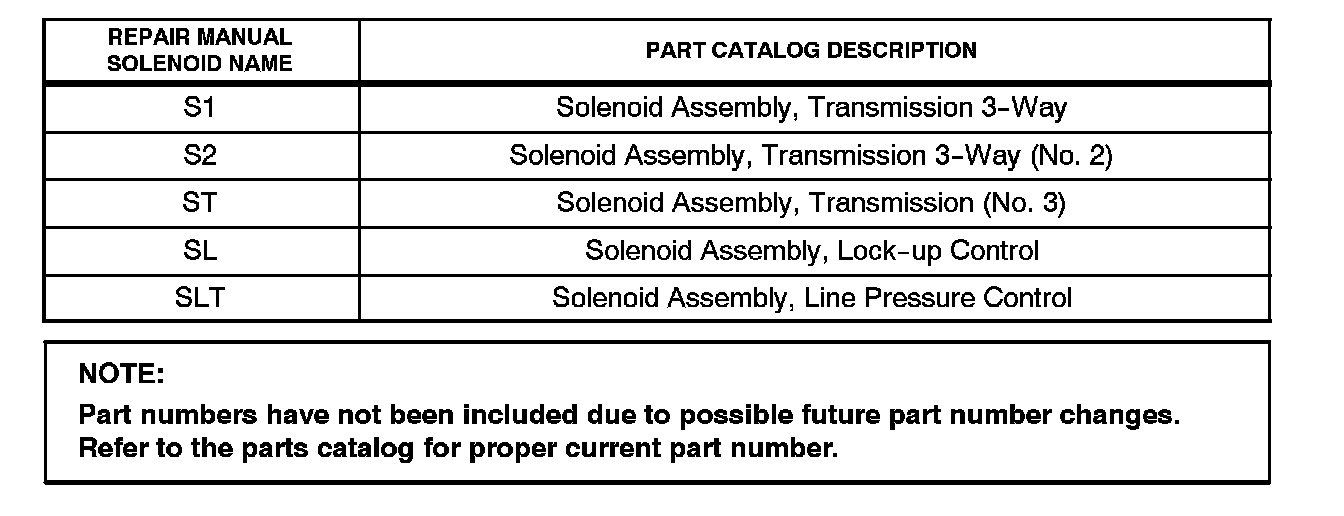

Provided above is a chart listing the Repair Manual name of each solenoid used in the U341F transmission as well as the part name description provided in the electronic parts catalog.
