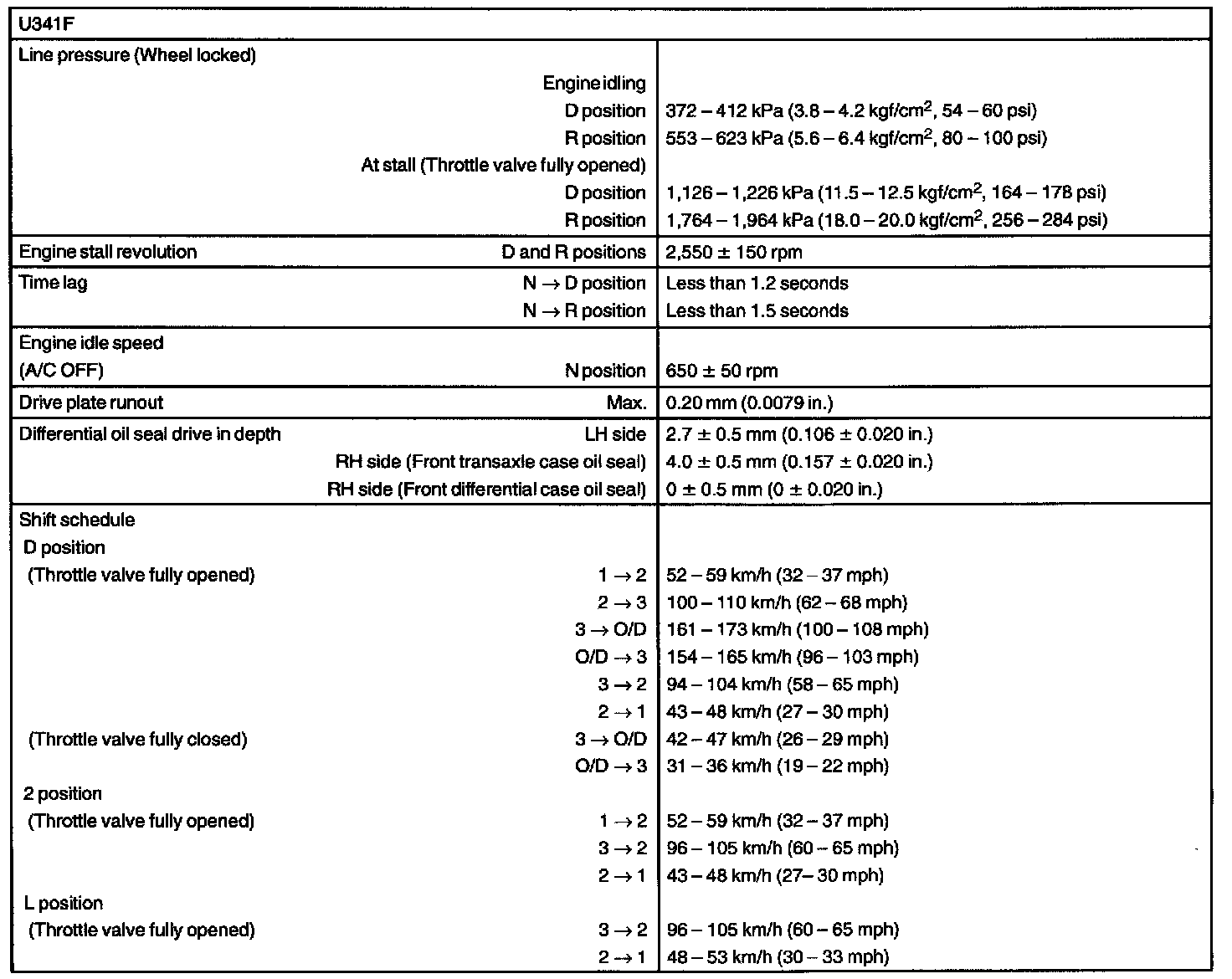

U341F Automatic Transmission/Transaxle - Service Data:

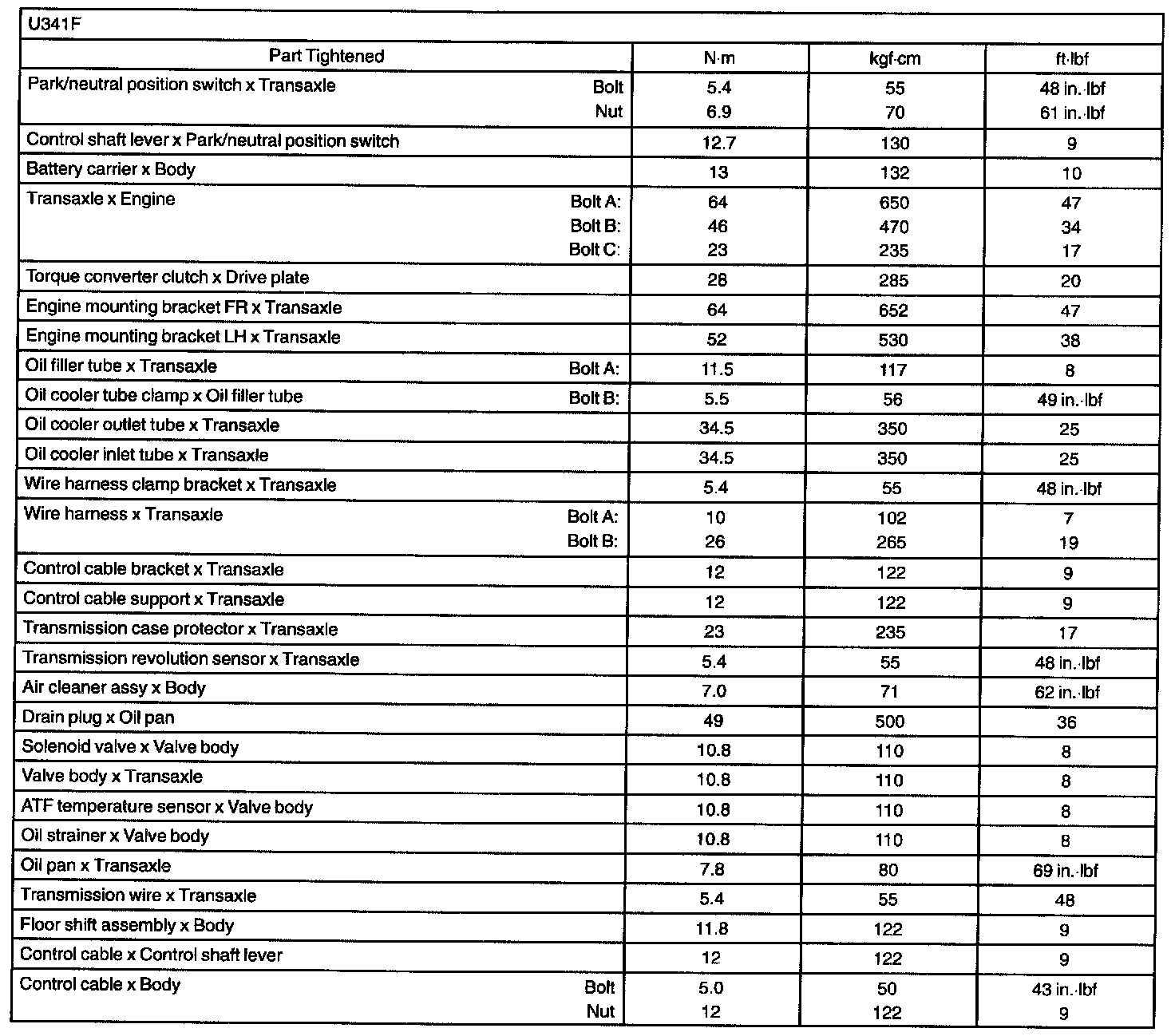

Automatic Transmission/Transaxle - Torque Specification:
