Operation CHARM
: Car repair manuals for everyone.
Home
>>
Toyota
>>
2003
>>
Matrix 4WD L4-1.8L (1ZZ-FE)
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Differential Assembly
Differential Assembly

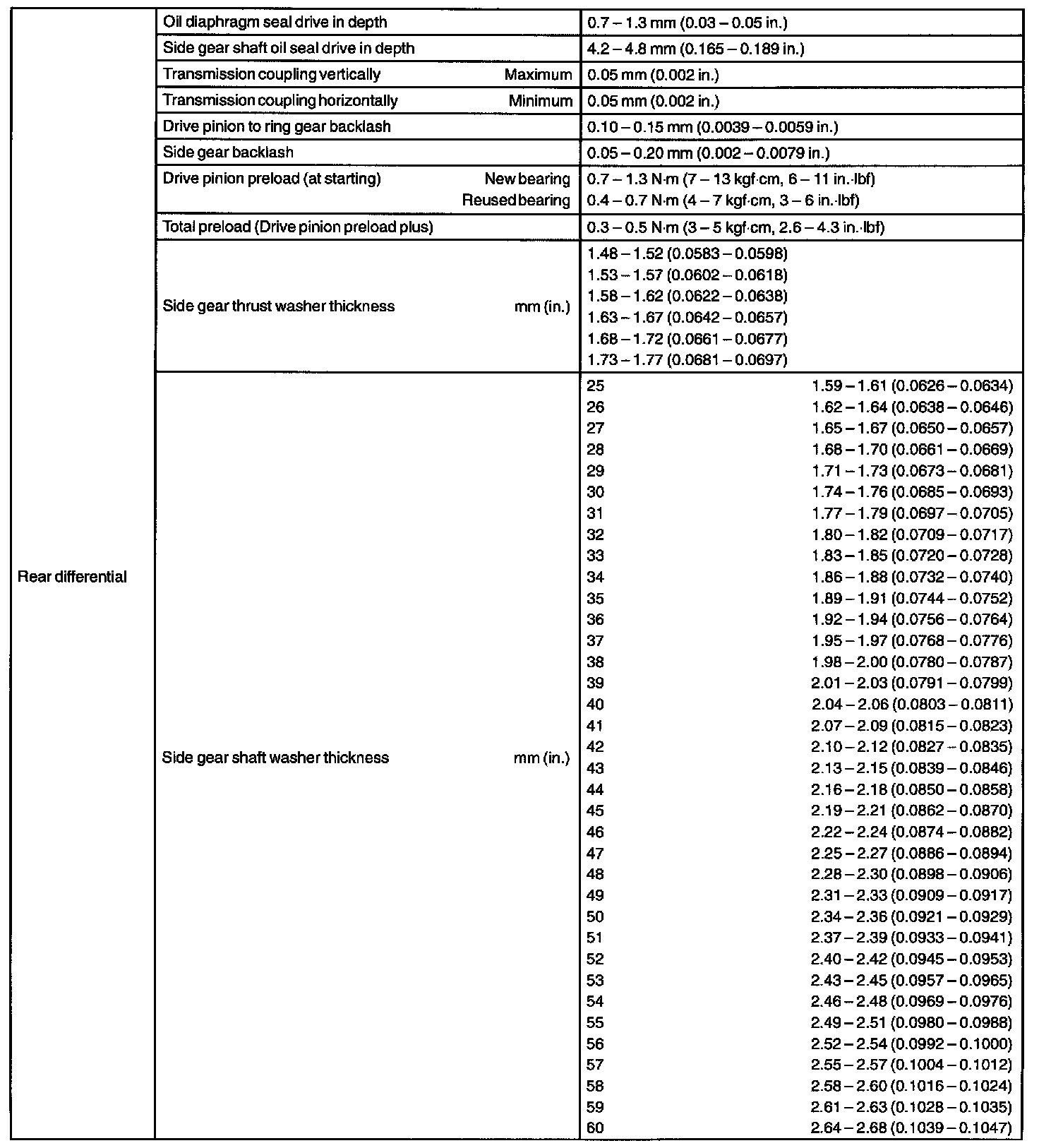

Differential - Service Data Part 1:

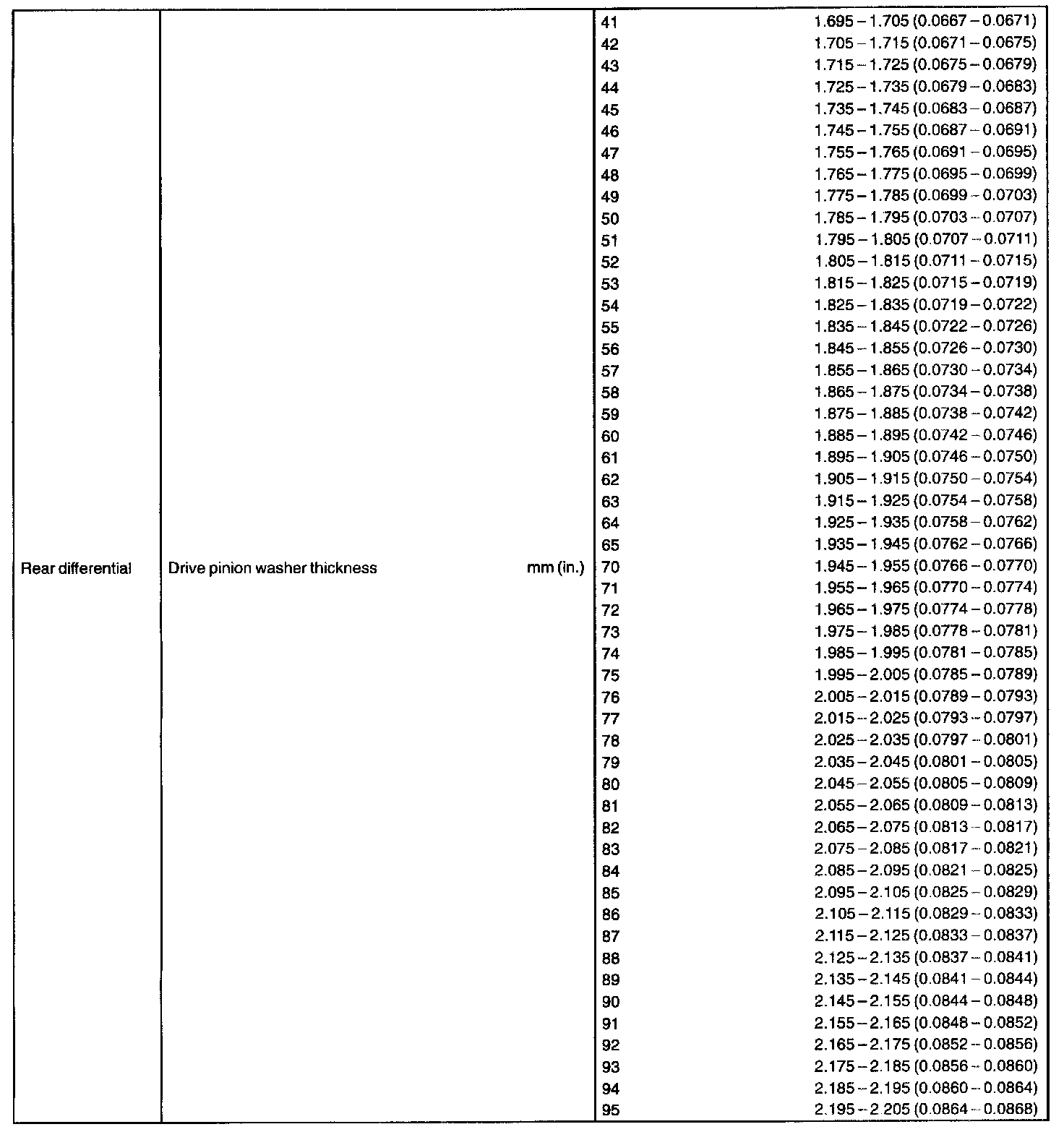

Differential - Service Data Part 2:

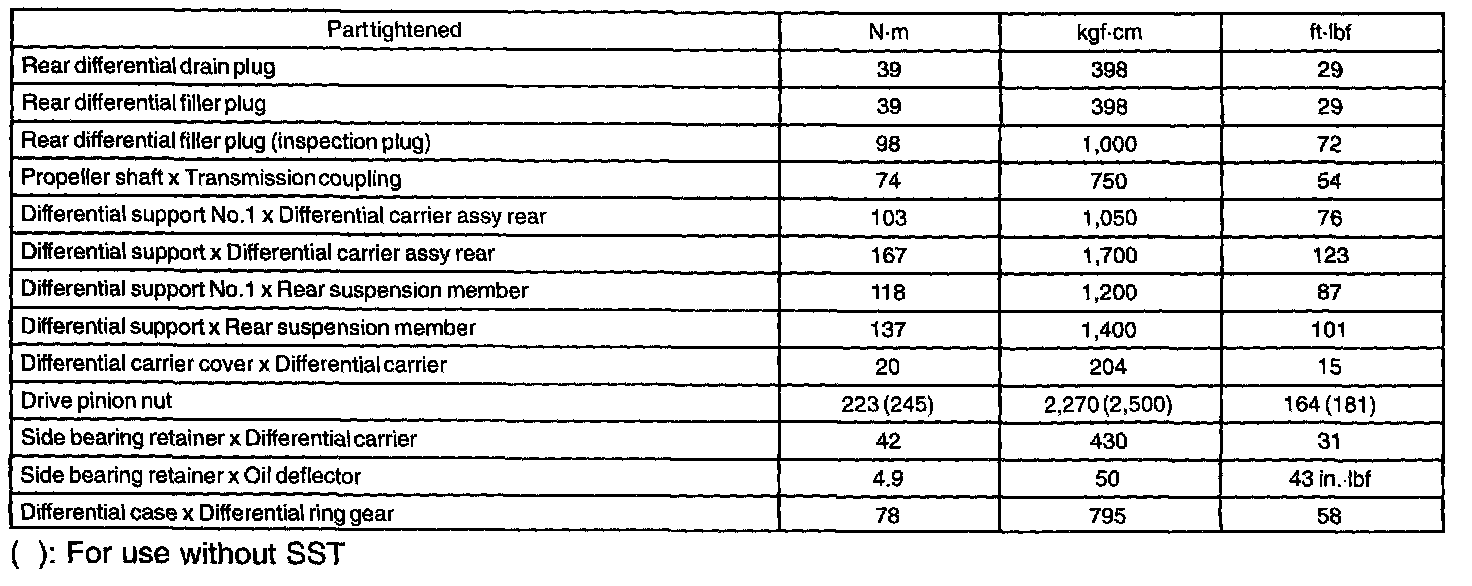

Differential - Torque Specification:
