Pressure Plate

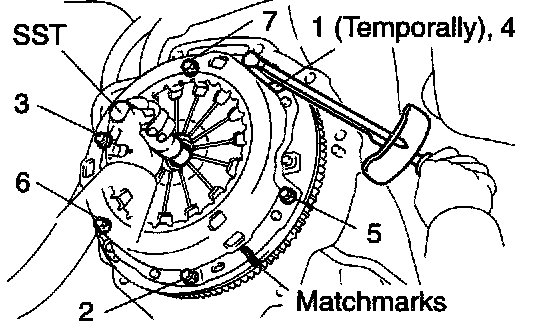

Align the matchmarks on the clutch cover assy and flywheel sub-assy.

Following the procedures shown in the illustration, tighten the 6 bolts, in the order starting the bolt locating near the knock pin on the top.
Torque: 19.1 Nm (195 kgf-cm, 14 ft. lbs.)

HINT:
- Following the order in the illustration, tighten the bolts at a time evenly.
- Move SST up and down, right and left lightly, after checking that the disc is in the center, tighten the bolts.
