Ground Circuits

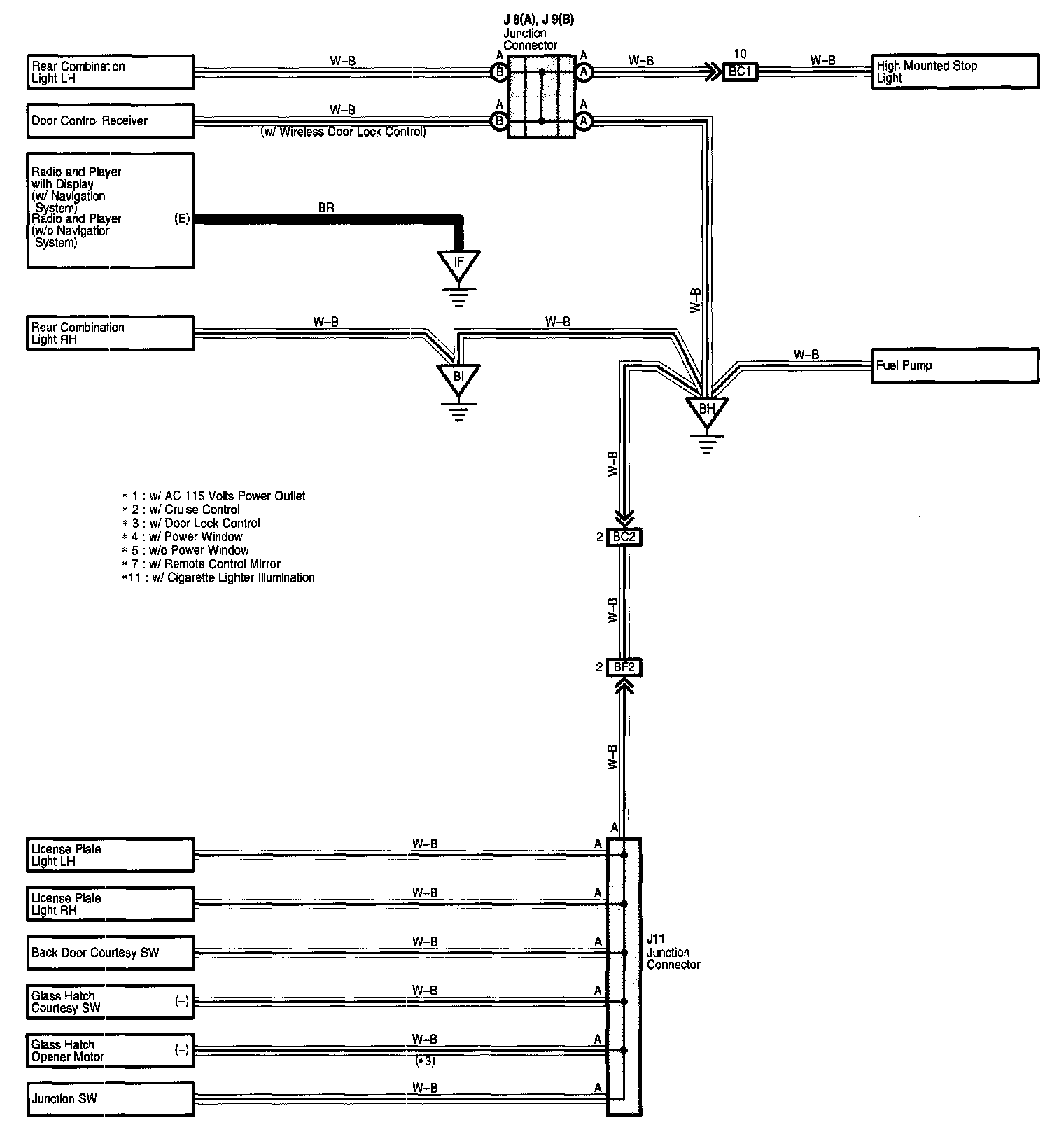

Ground Point Part 1:

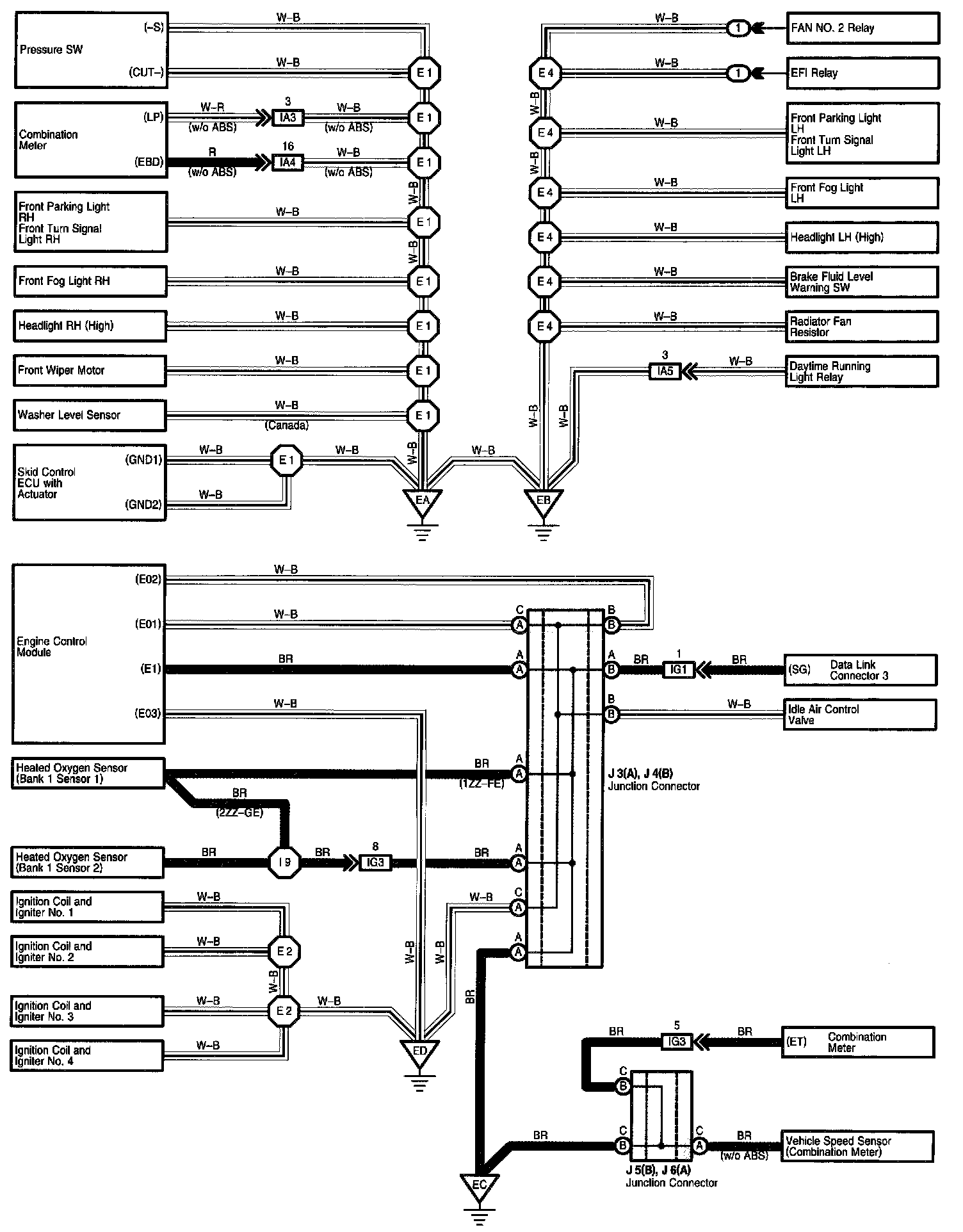

Ground Point Part 2:

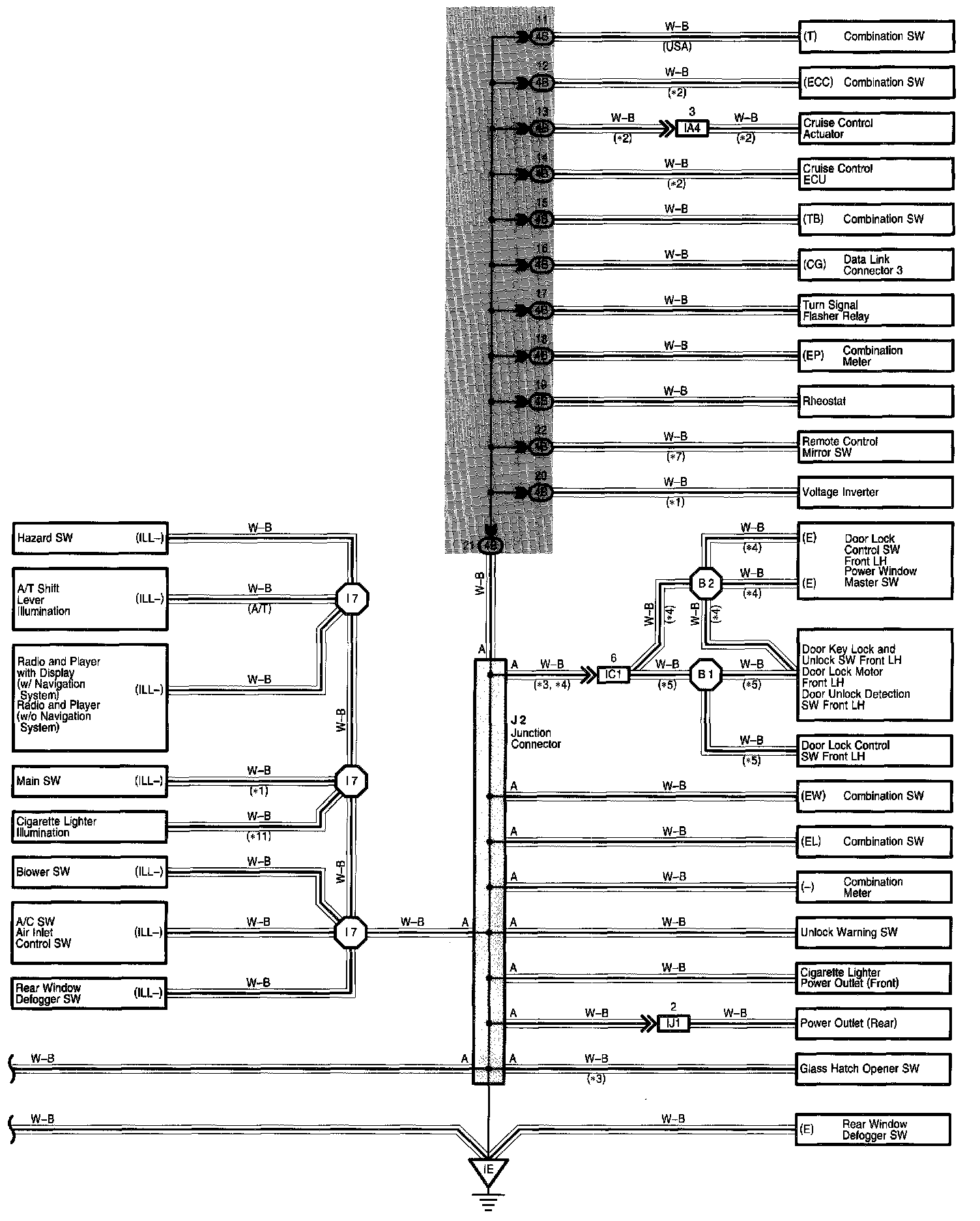

Ground Point Part 3:

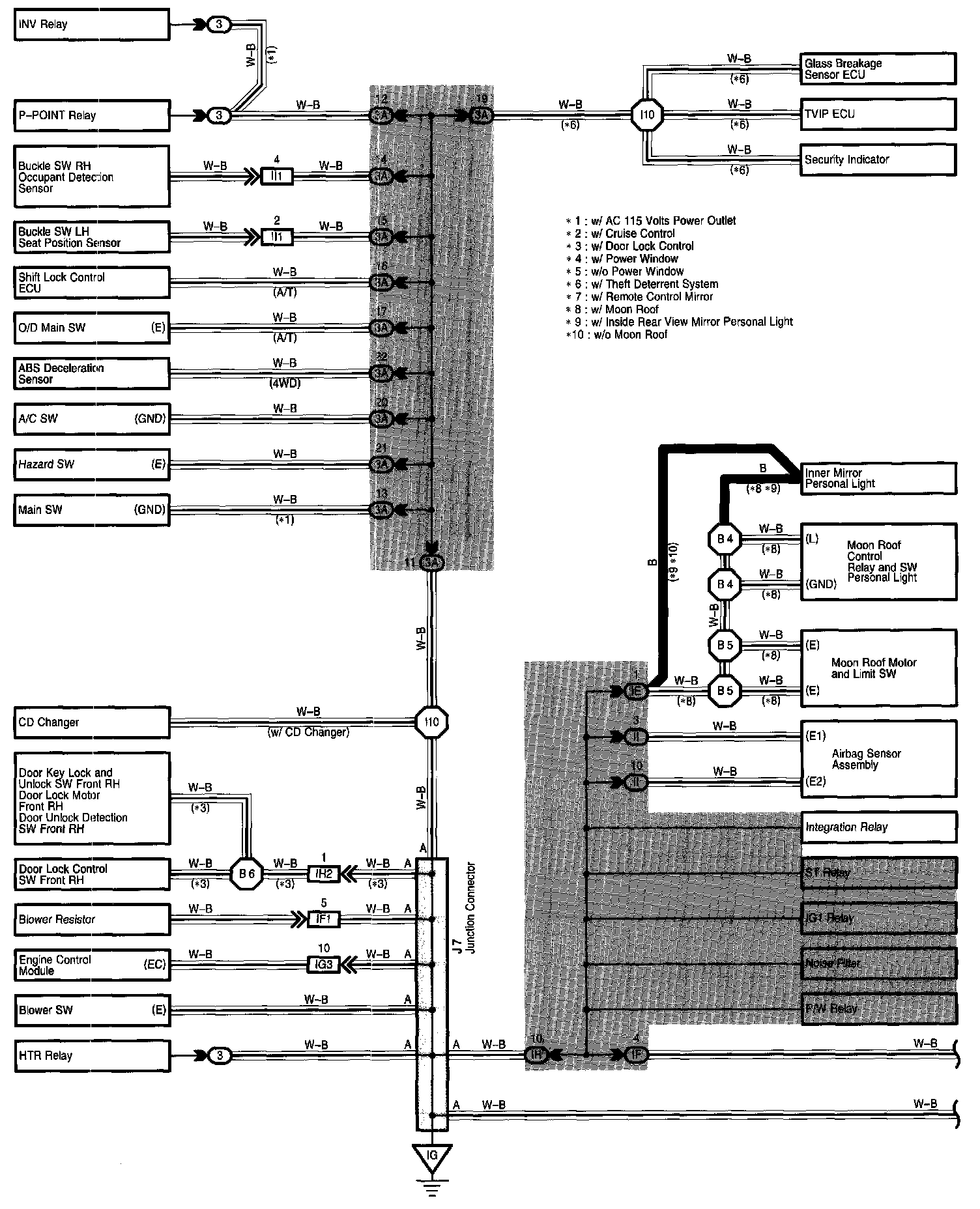

Ground Point Part 4:

Diagram Legend:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations

Connector Views: The connector views for connectors referred to within these diagrams can be found at the Vehicle level Connector Views. Connector Views
