Ignition Switch Power Source Circuit
Ignition Switch Power Source CircuitCIRCUIT DESCRIPTION
When the ignition switch is turned to the ON position, battery voltage is applied to terminal IG of the passenger side J/B ECU.
Wiring Diagram:
Step 1:
Step 2 - 4:

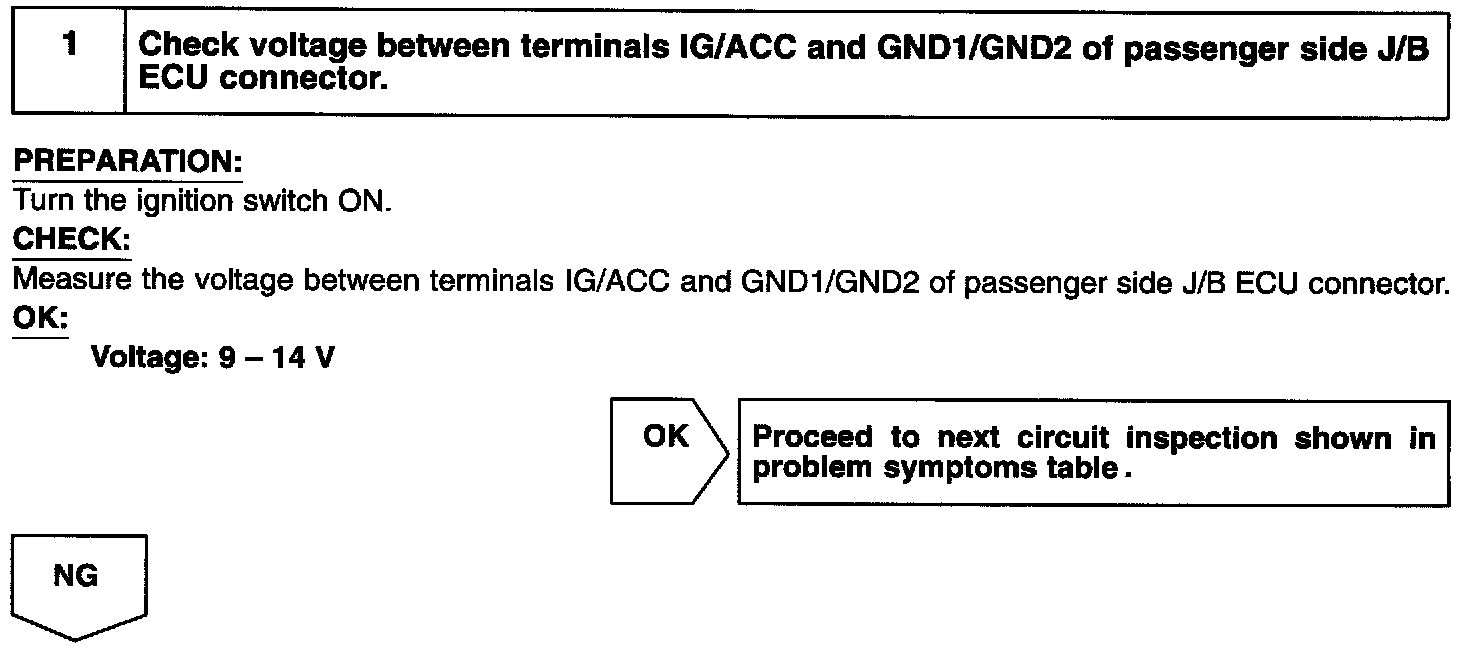

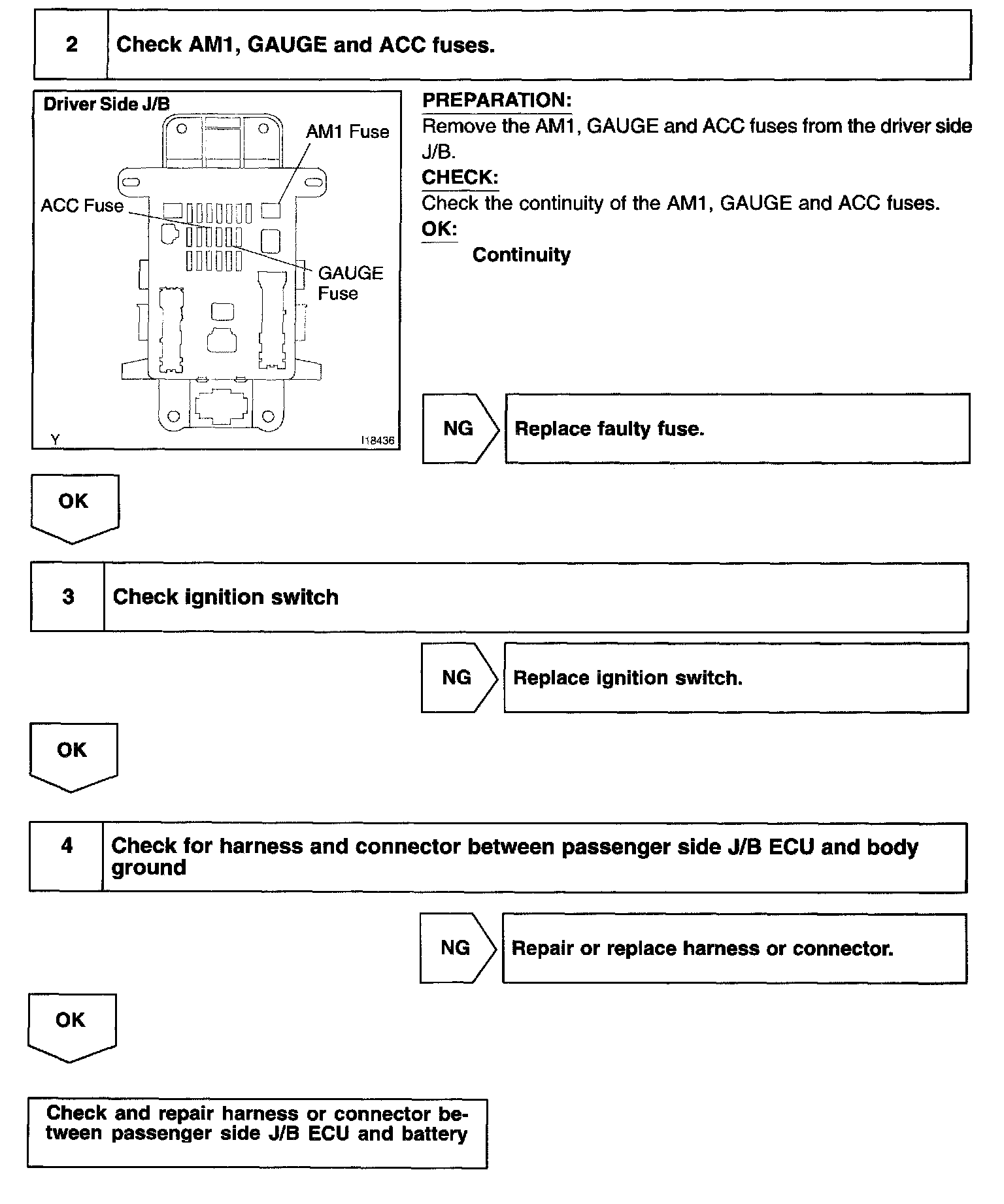

INSPECTION PROCEDURE
