Symptom Related Diagnostic Procedures

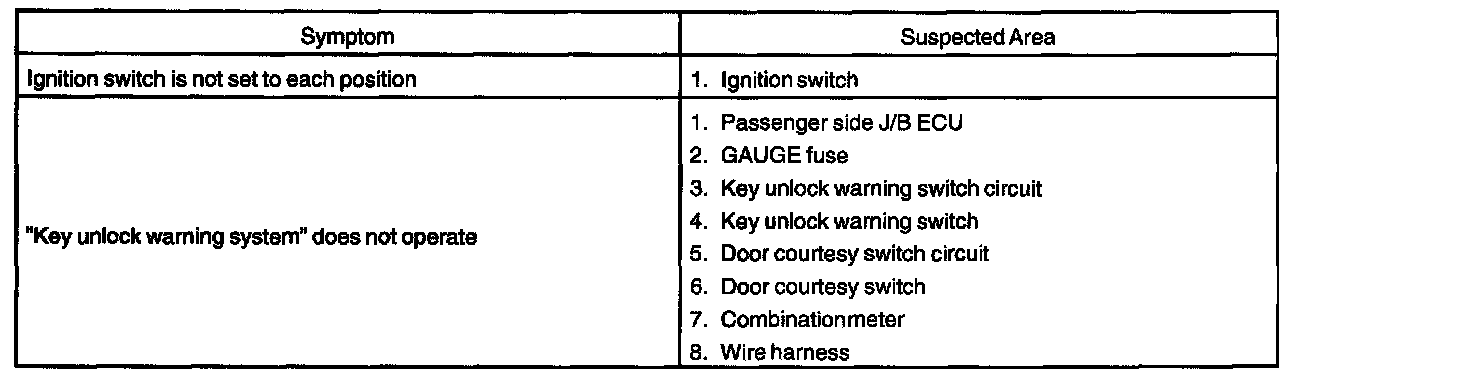

Problem Symptoms Table - Ignition Switch And Key Unlock Warning Switch:

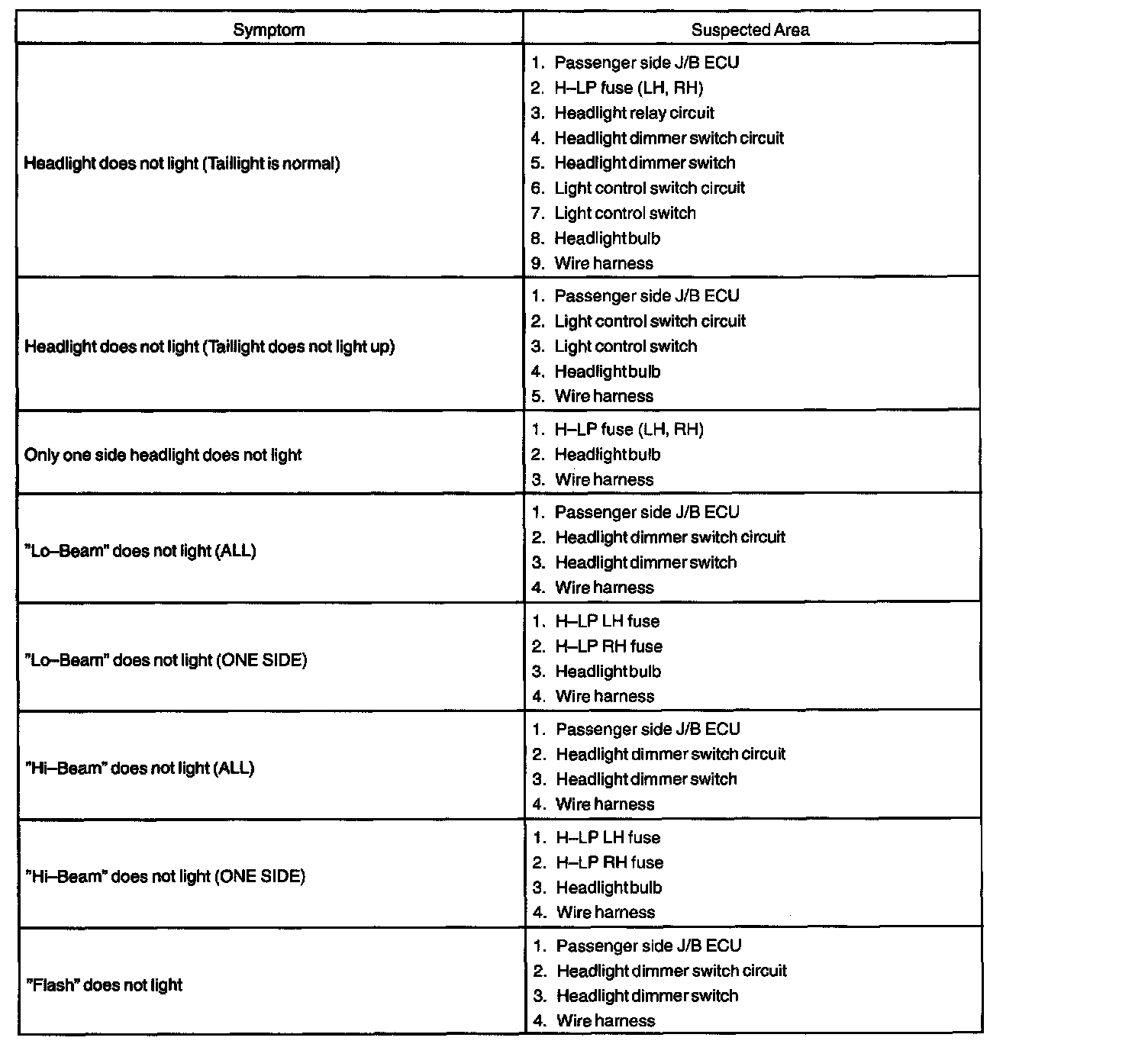

Problem Symptoms Table - Headlight And Taillight System:

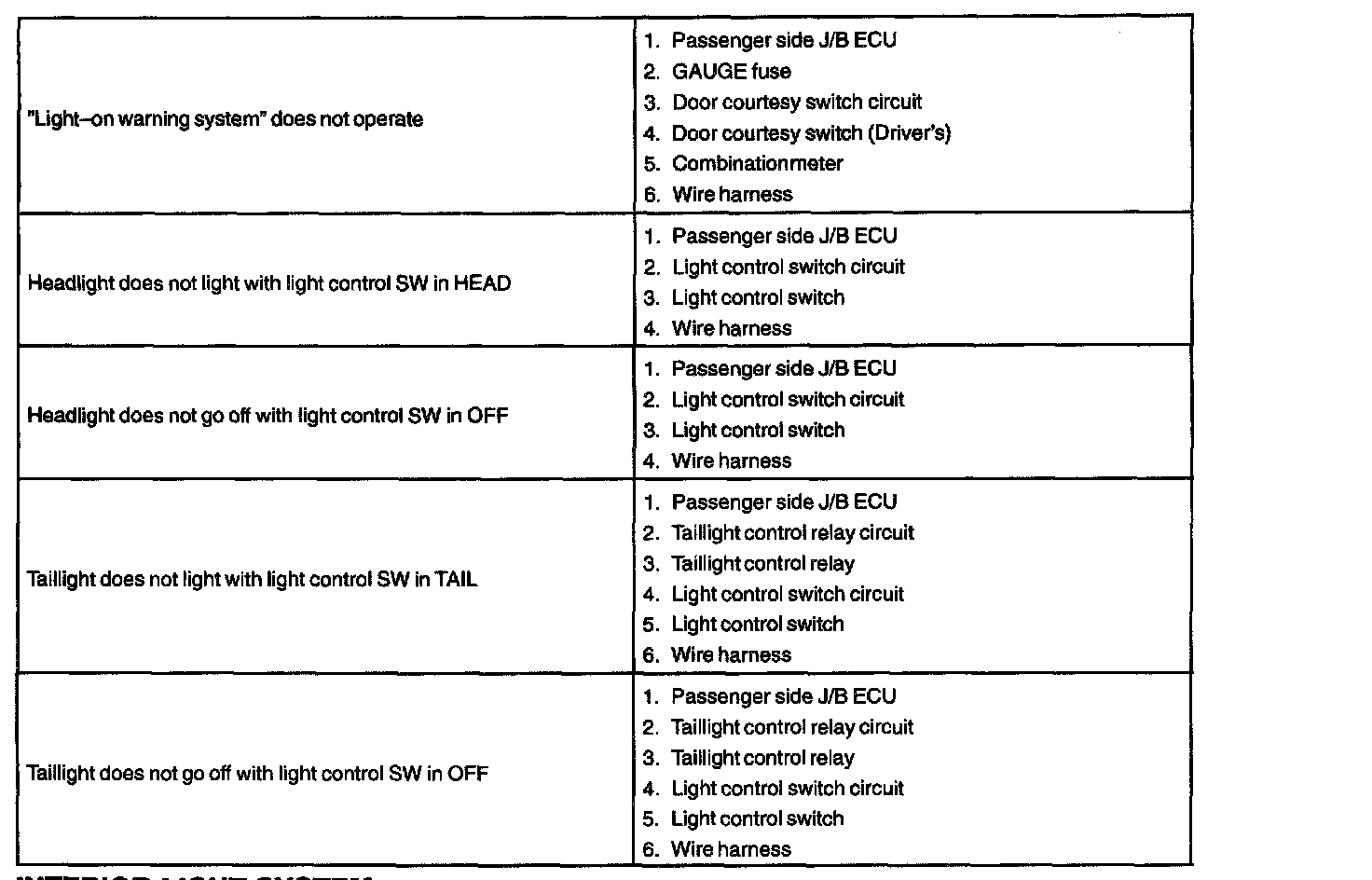

Problem Symptoms Table - Headlight And Taillight System (Continued):

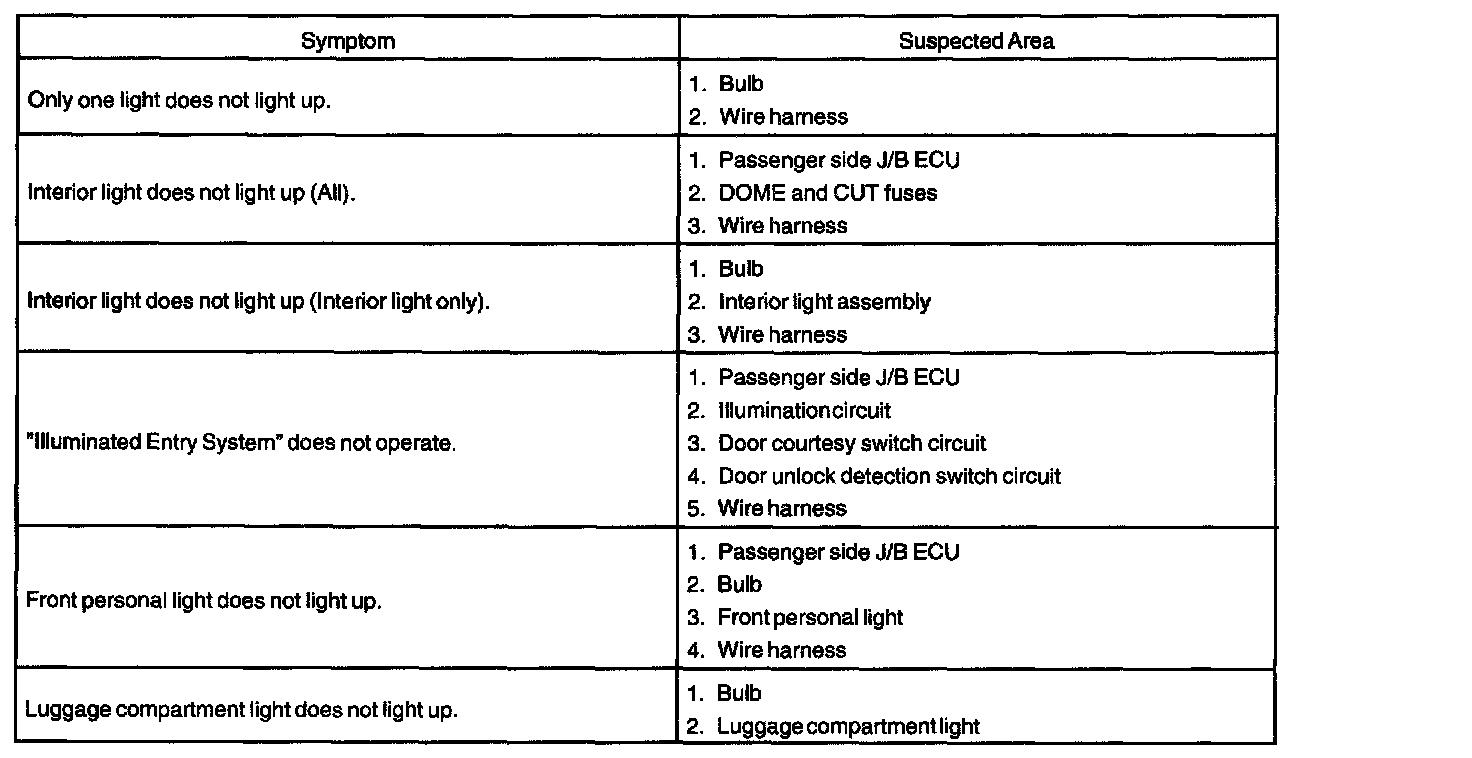

Problem Symptoms Table - Interior Light System:

Problem Symptoms Table - Combination Meter (Warning Lights):

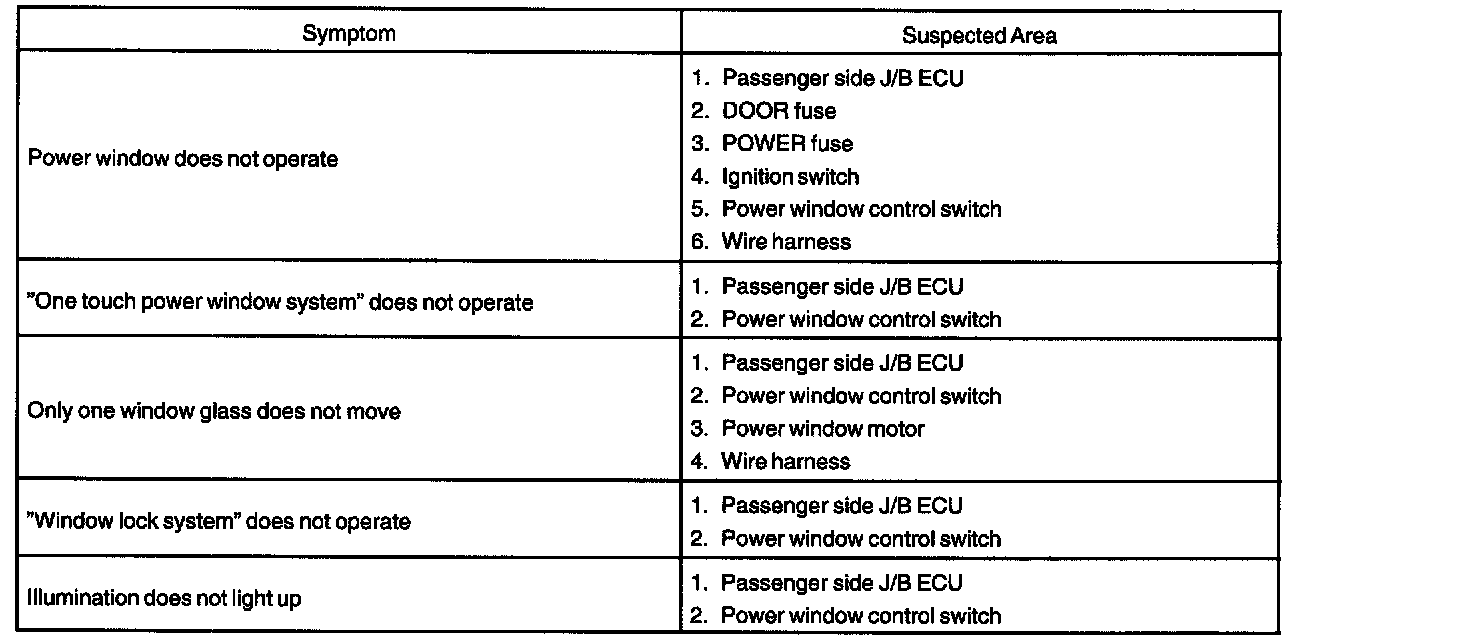

Problem Symptoms Table - Power Window Control System:

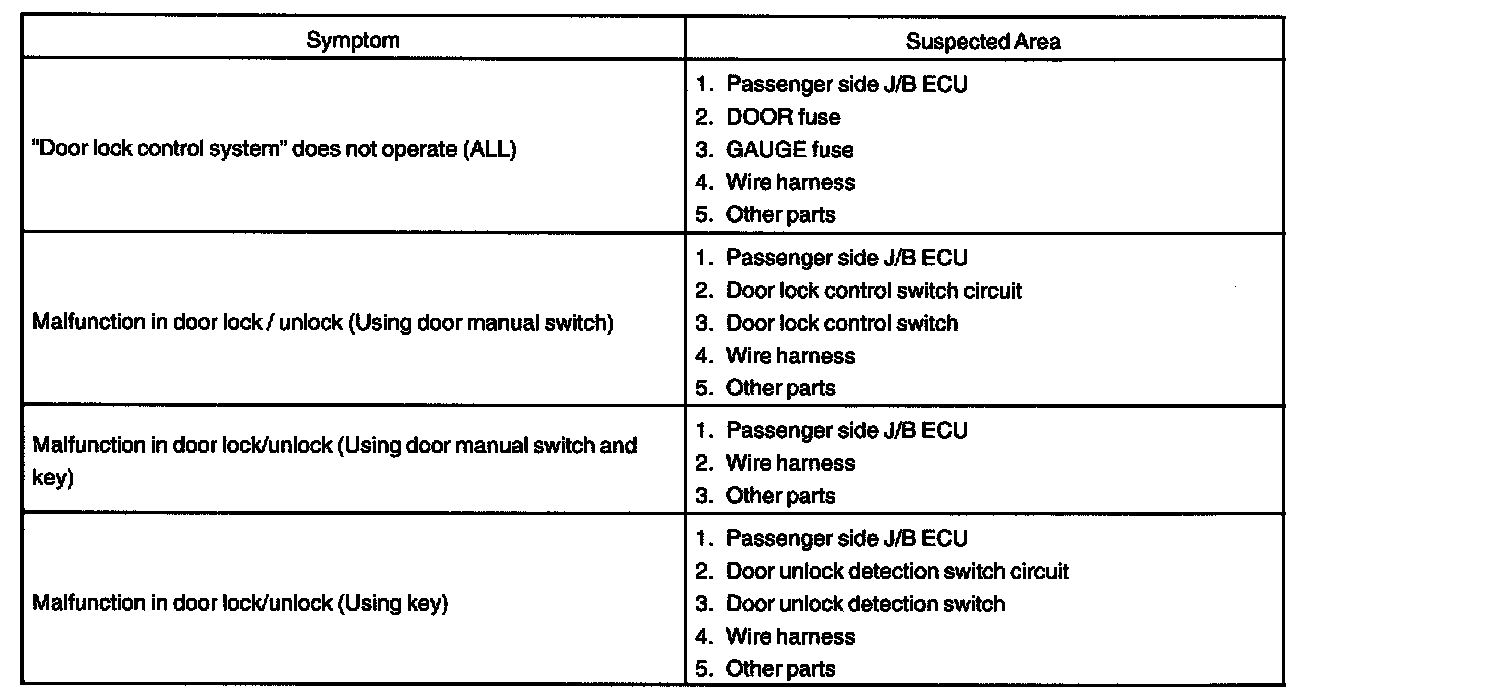

Problem Symptoms Table - Power Door Lock Control System:

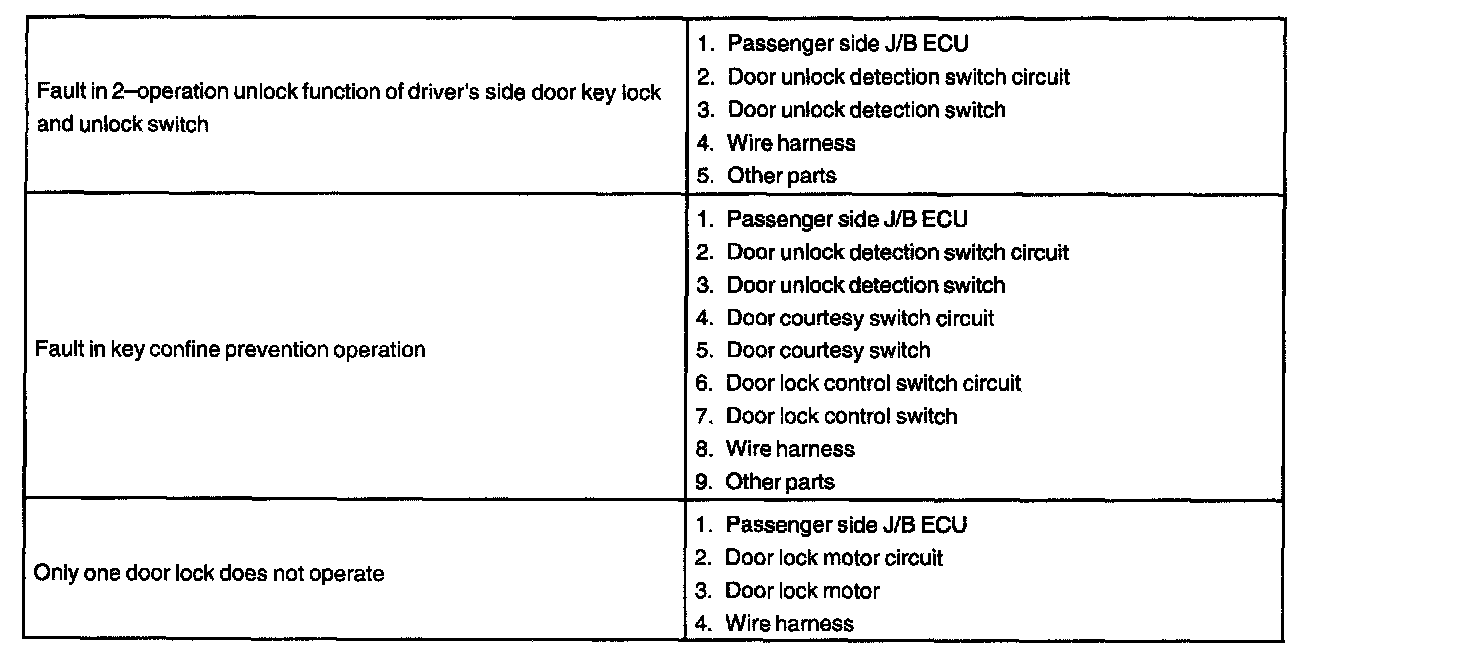

Problem Symptoms Table - Power Door Lock Control System (Continued):

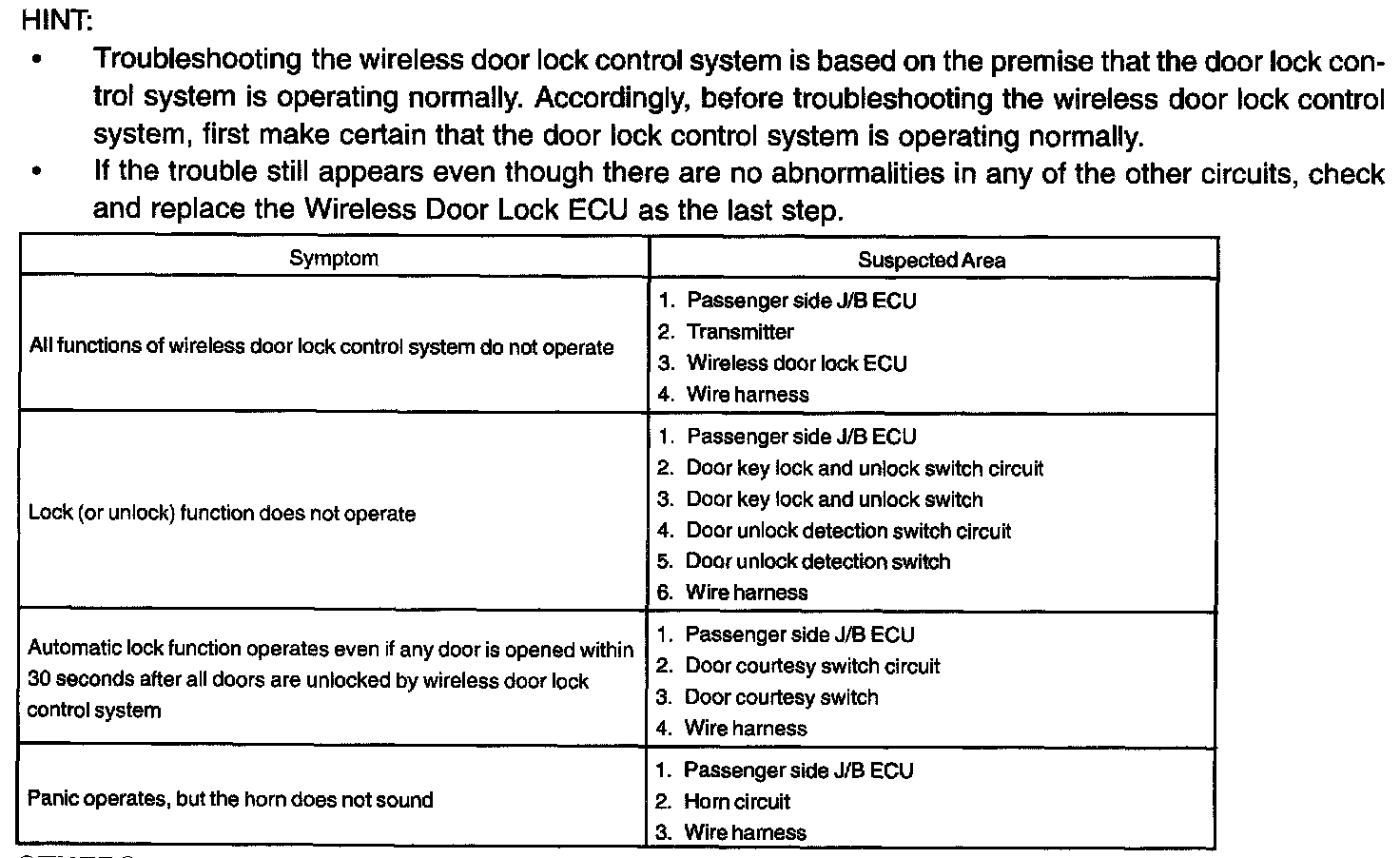

Problem Symptoms Table - Wireless Door Lock Control System:

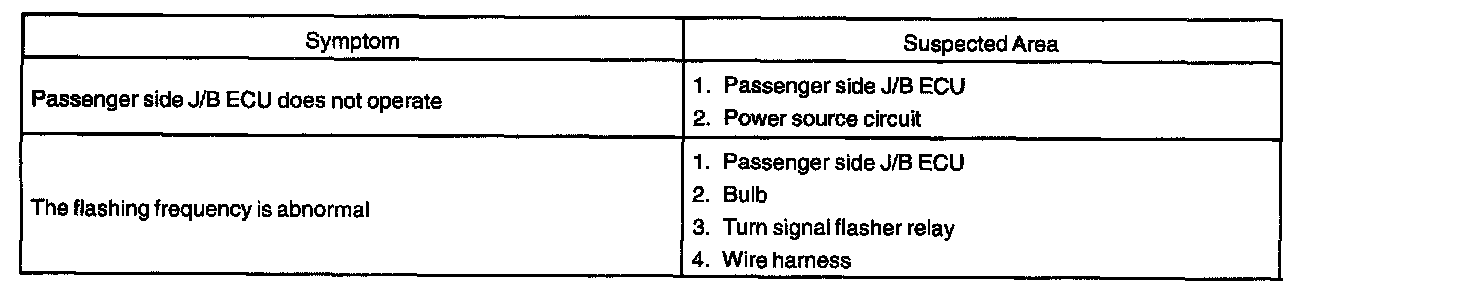

Problem Symptoms Table - Others:
