RAV4 2WD L4-2.0L (1AZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Automatic Transmission/Transaxle
>>
System Diagram
>>
Removal and Installation
Removal and Installation

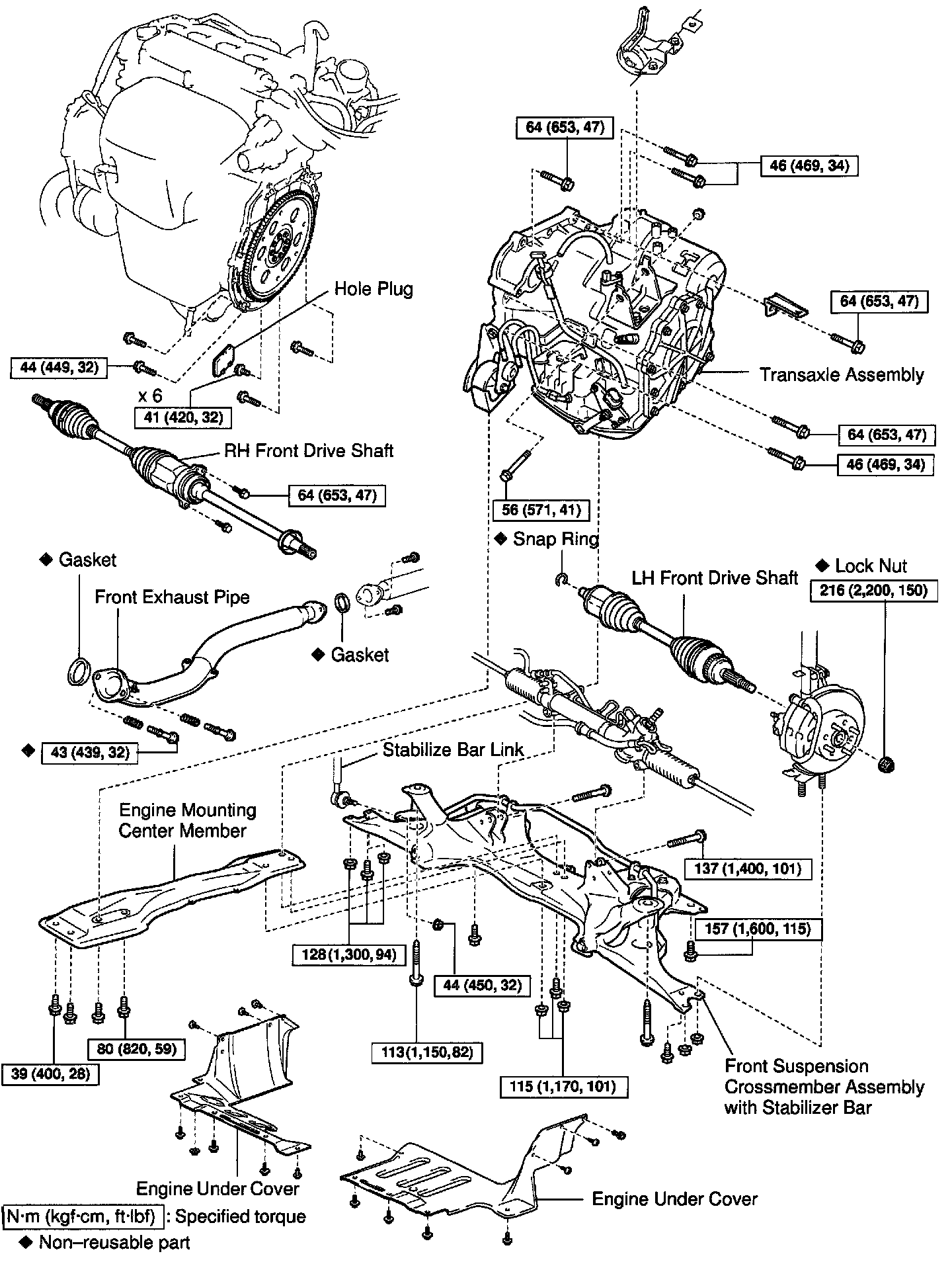

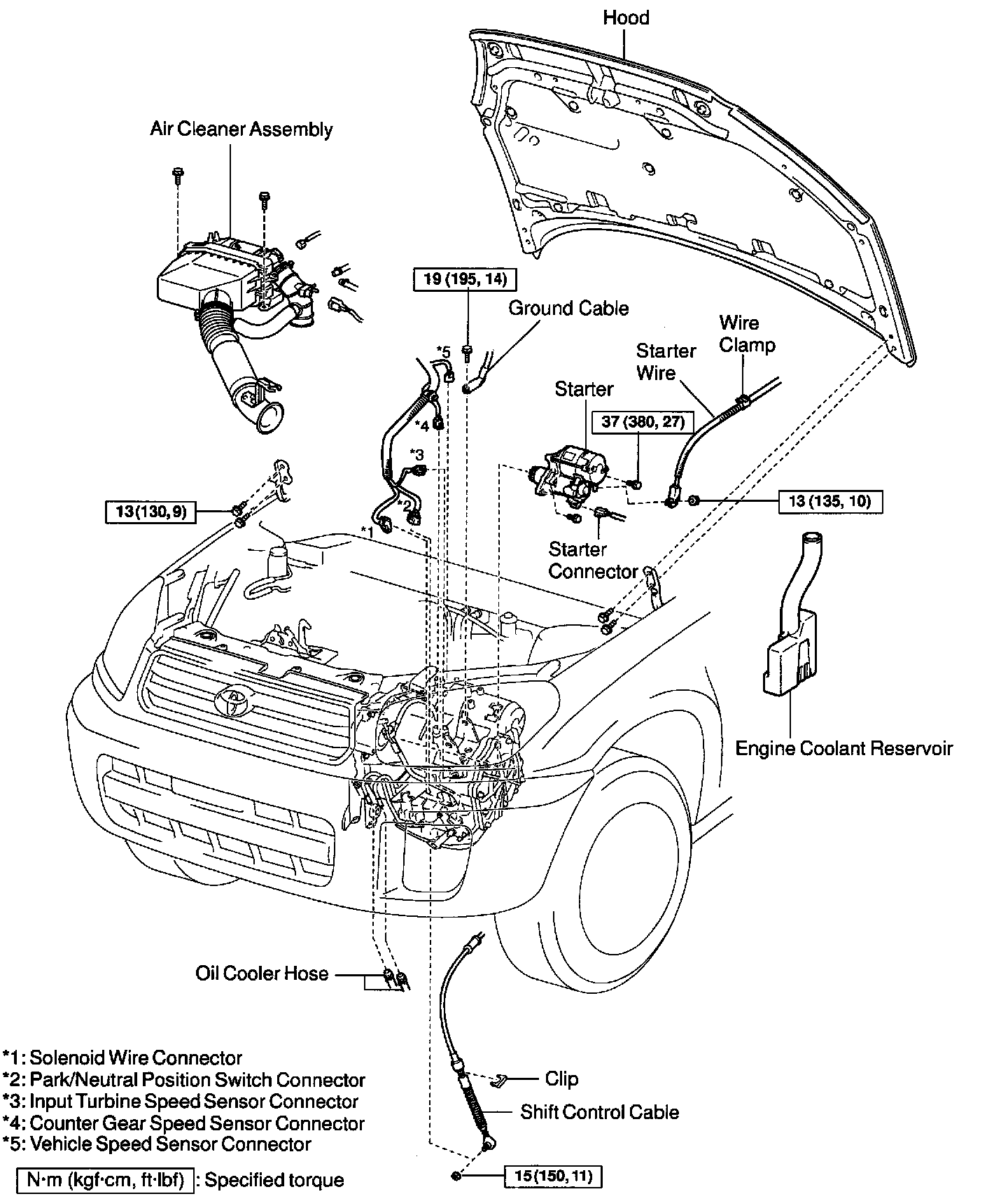

AUTOMATIC TRANSAXLE UNIT [U241E]:
AUTOMATIC TRANSAXLE UNIT [U241E]:
