Operation CHARM
: Car repair manuals for everyone.
Home
>>
Toyota
>>
2003
>>
RAV4 2WD L4-2.0L (1AZ-FE)
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Automatic Transmission/Transaxle
>>
System Specifications
>>
Overhaul (Unit Repair)
Overhaul (Unit Repair)

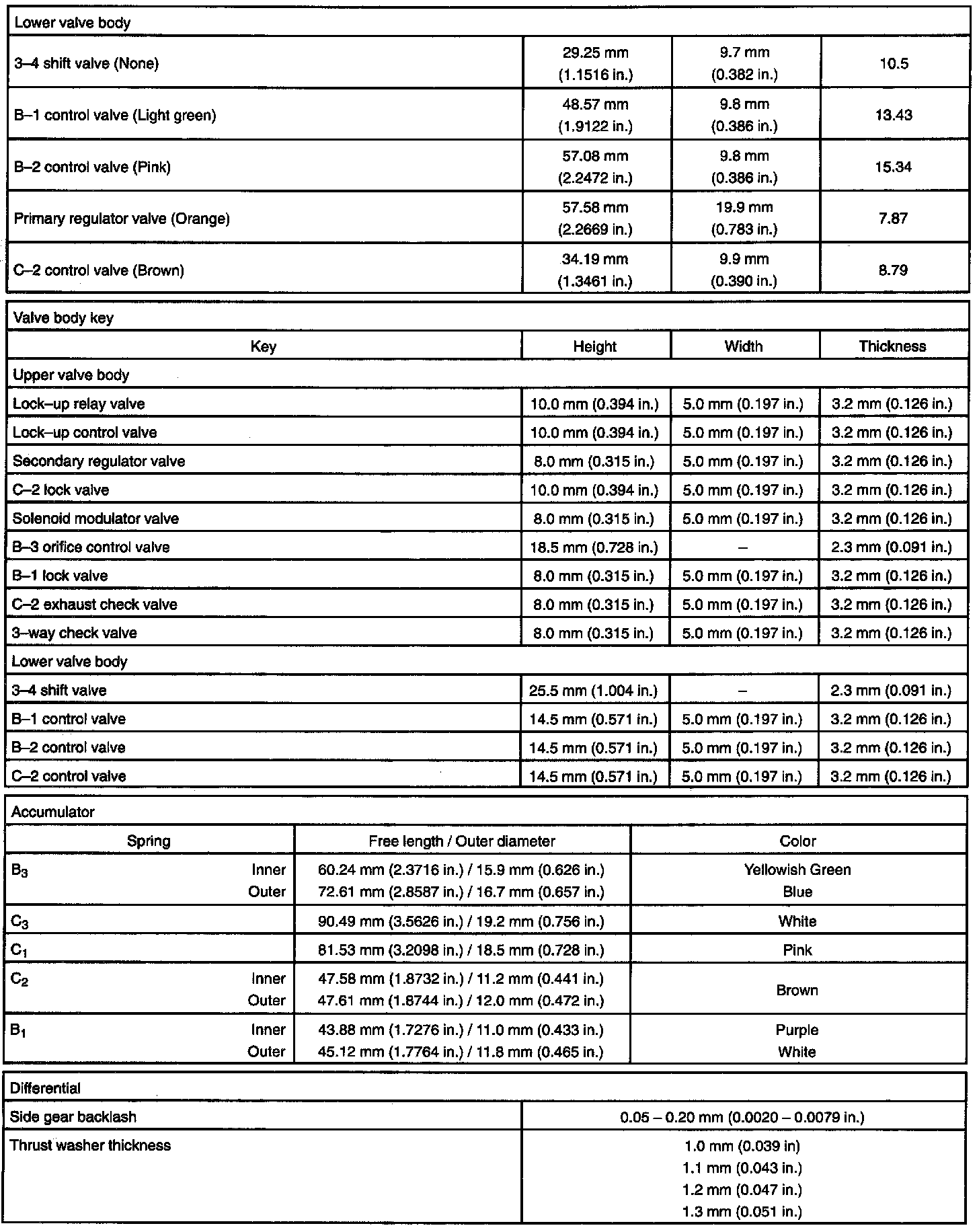

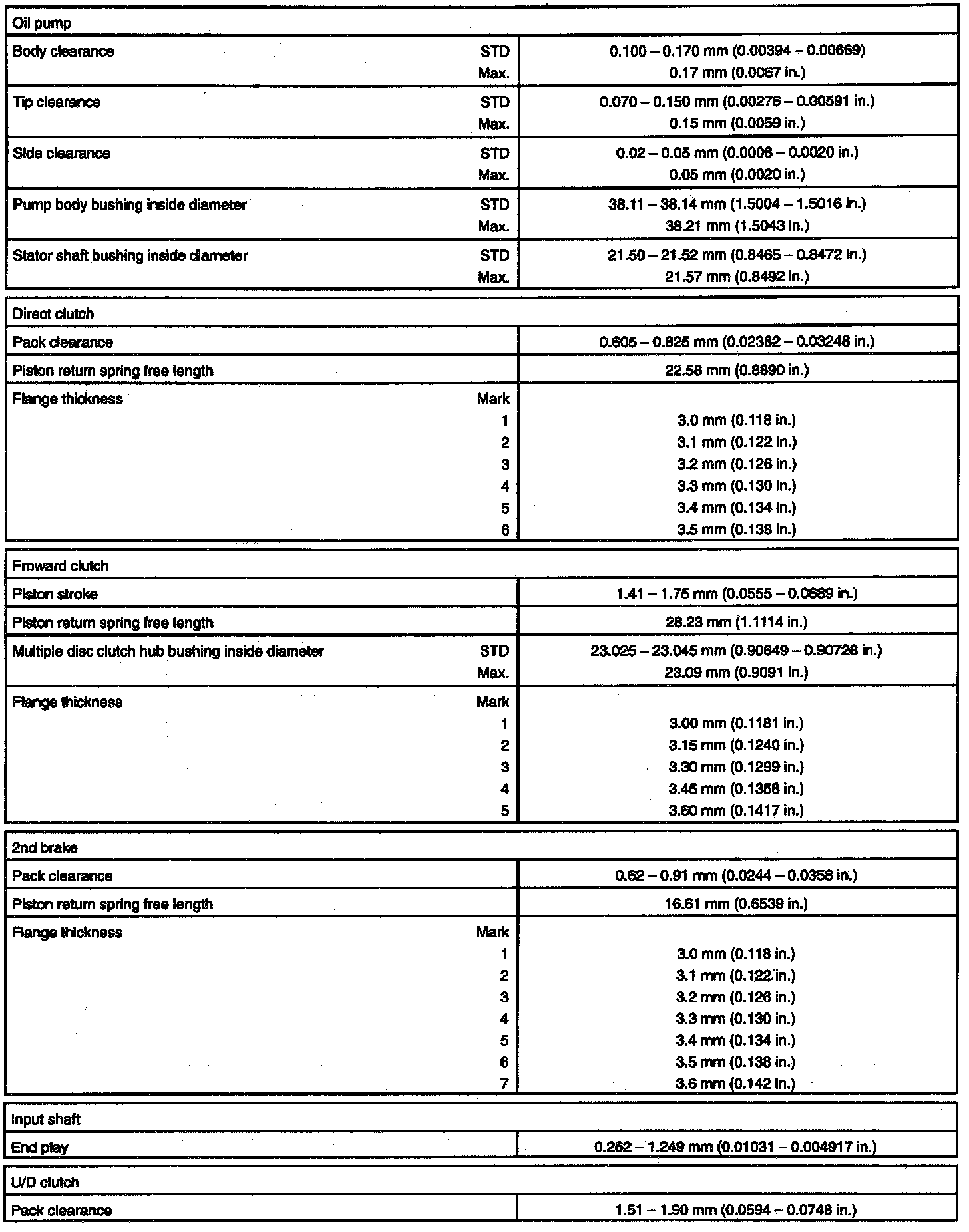

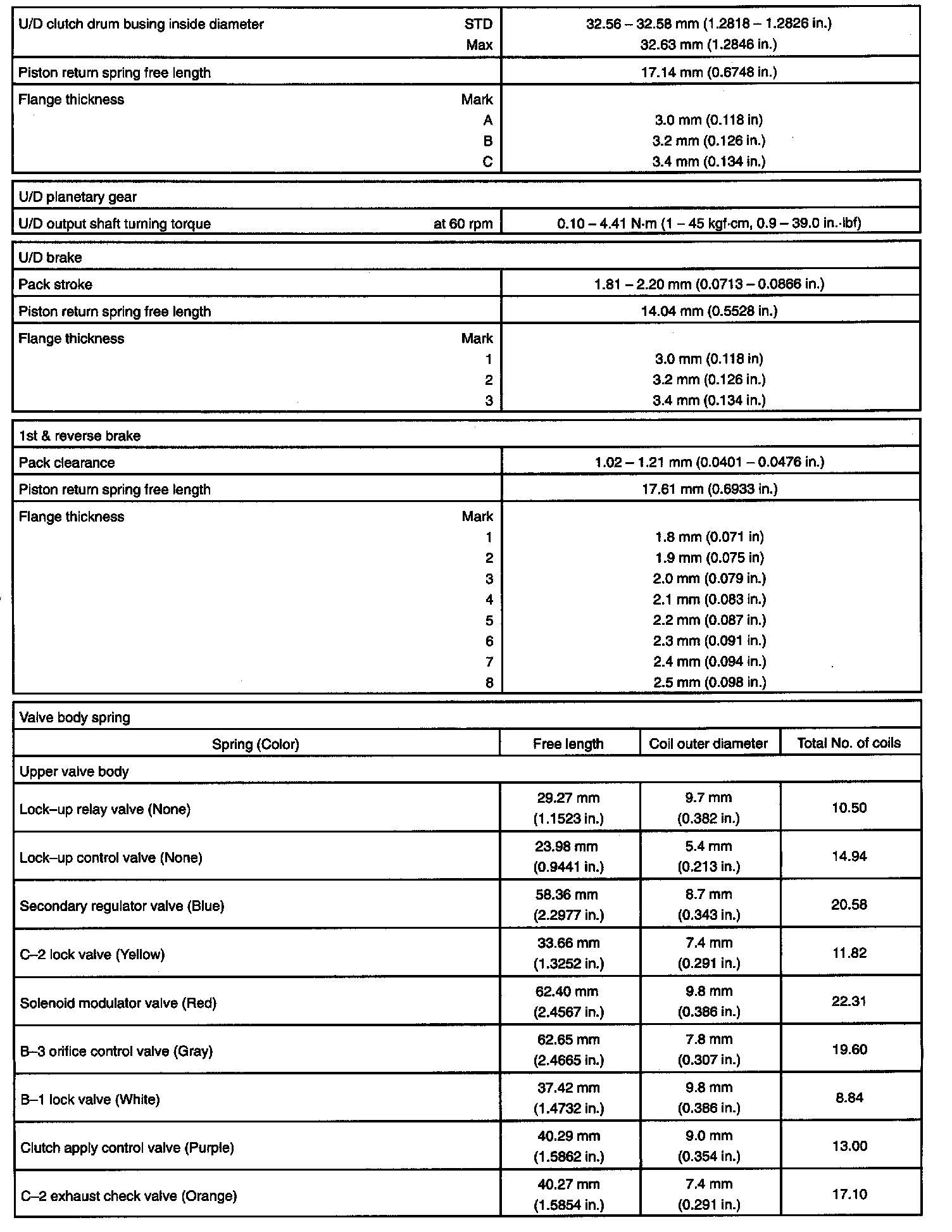

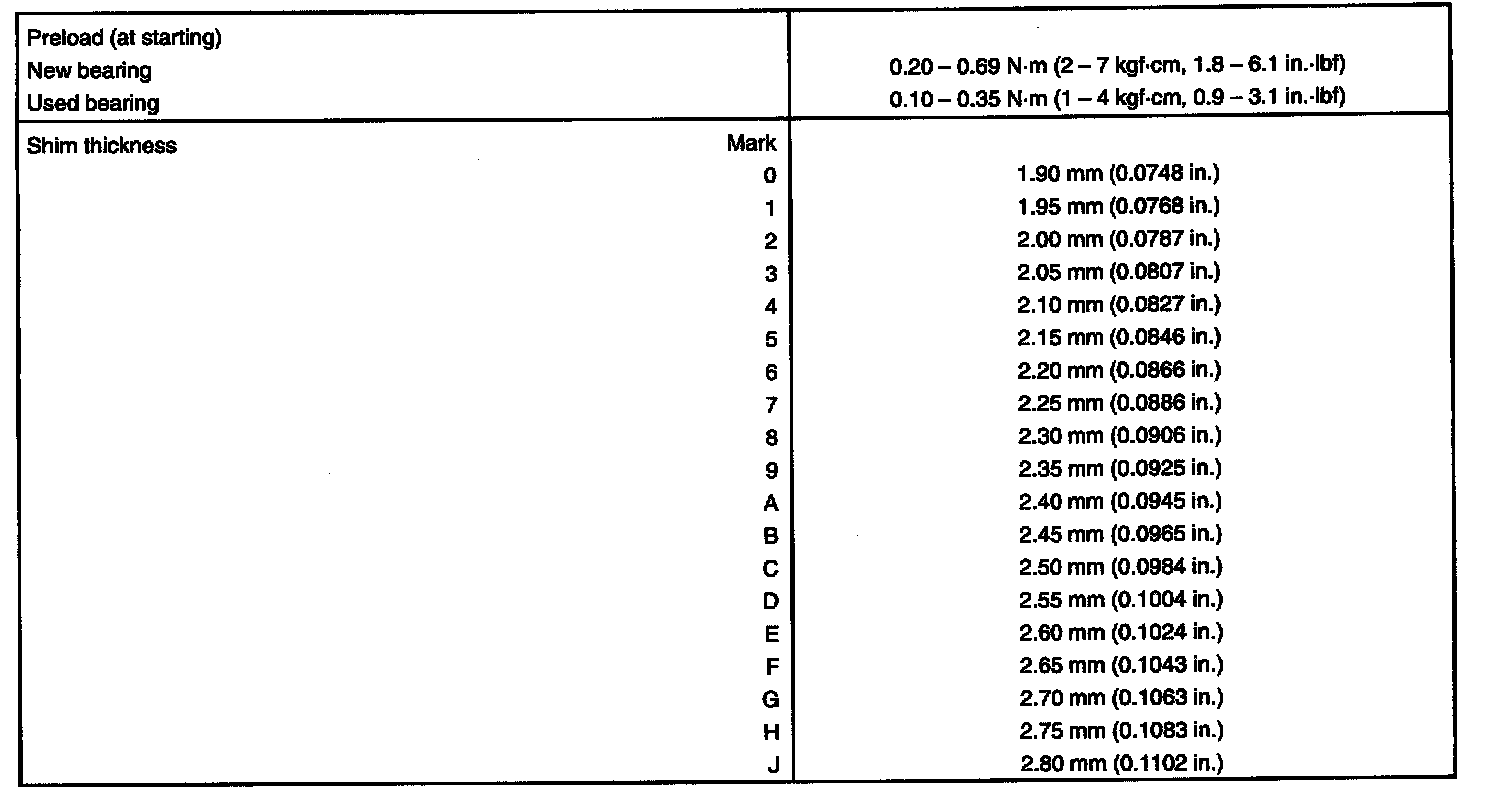

SERVICE DATA

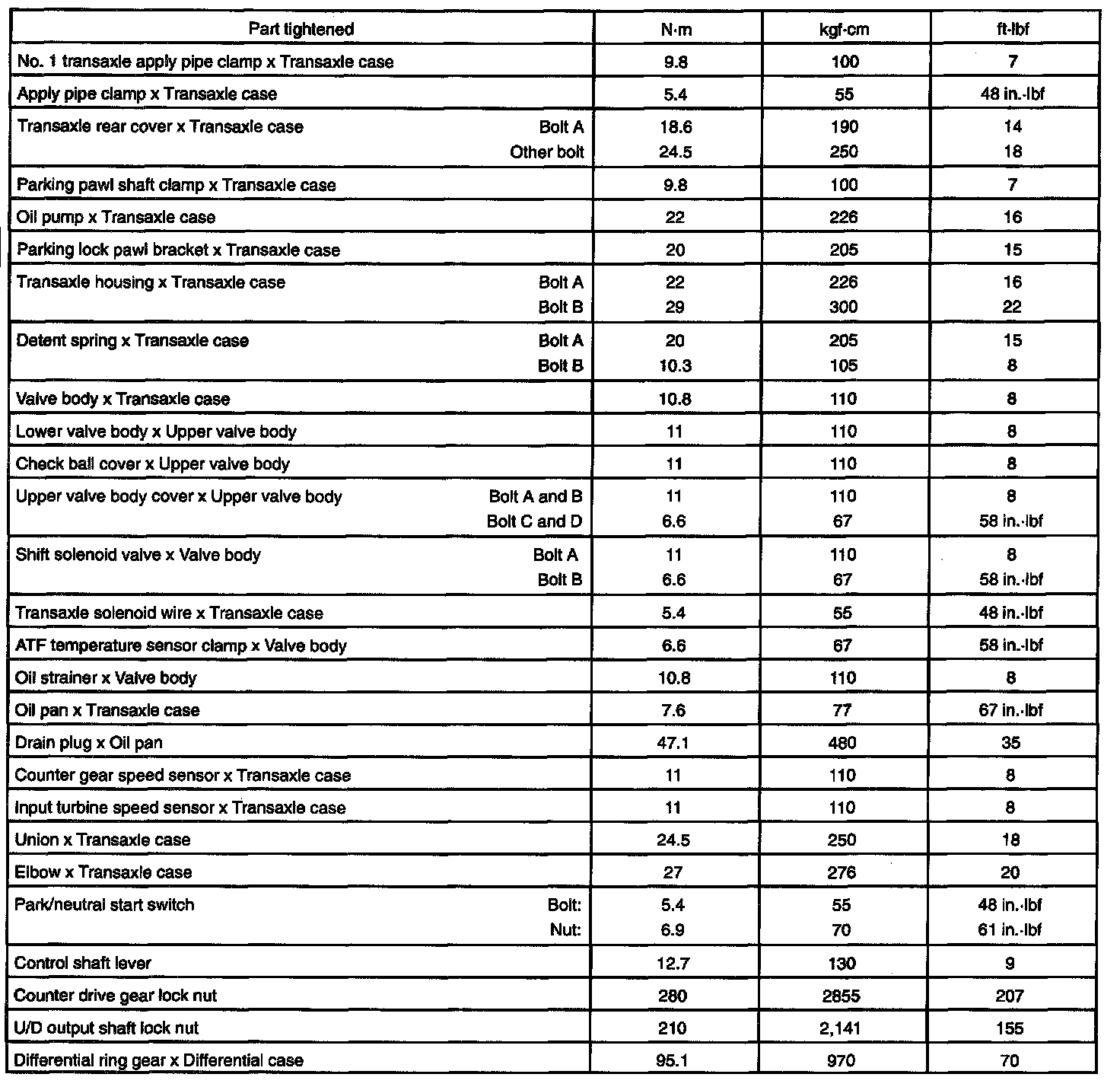

TORQUE SPECIFICATION
