P1600

DTC P1600 ECM BATT Malfunction

CIRCUIT DESCRIPTION

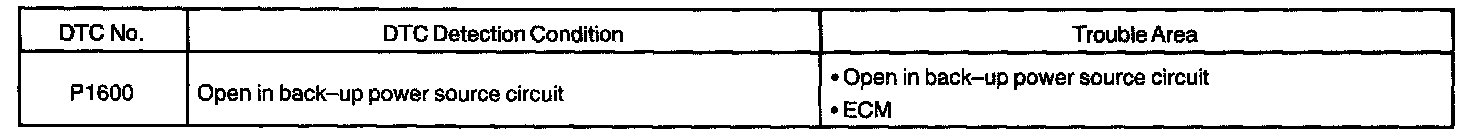

DTC Detection Condition:




Battery positive voltage is applied to terminal BATT of the ECM, even when the ignition switch is OFF for use by the DTCs memory and air-fuel ratio adaptive control value memory, etc.

HINT: If DTC P1600 is displayed, the ECM does not store another DTC.

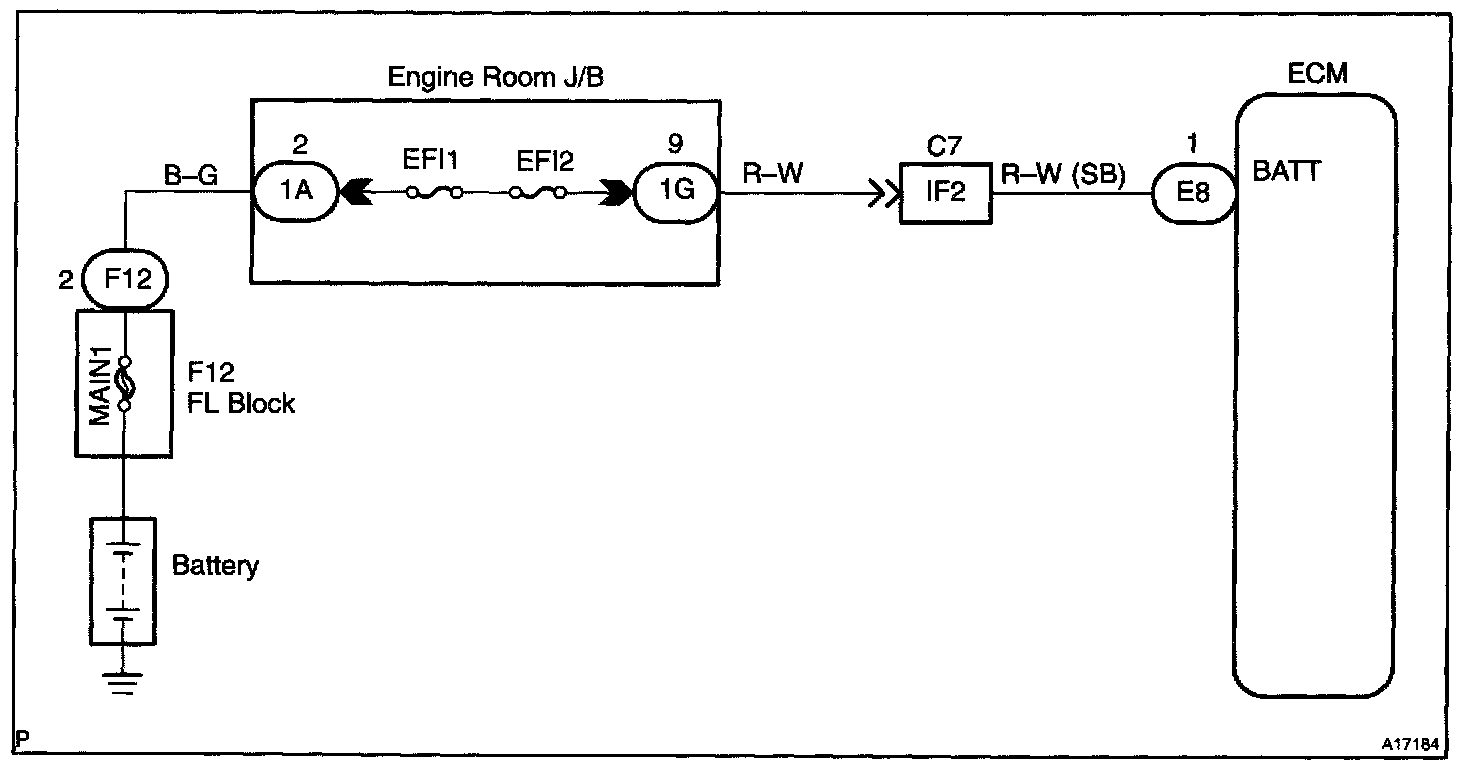

Wiring Diagram:

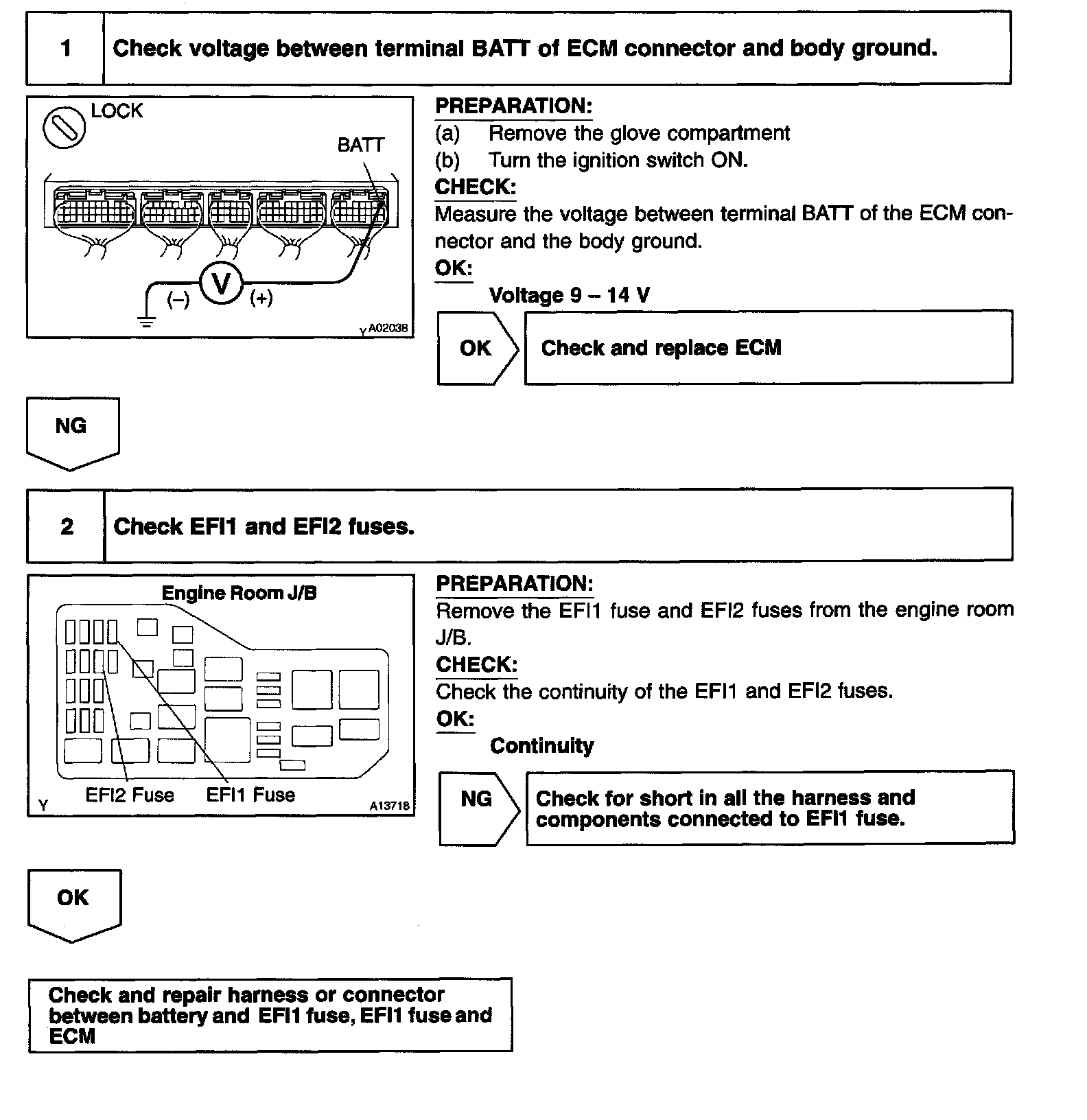

Step 1 - 2:




INSPECTION PROCEDURE

HINT: Read freeze frame data using the hand-held tester or the OBD II scan tool, as freeze frame data records the engine conditions when a malfunction is detected. When troubleshooting, this is useful for determining whether the vehicle was running or stopped, the engine was warmed up or not, the air-fuel ratio was lean or rich, etc. at the time of the malfunction.
