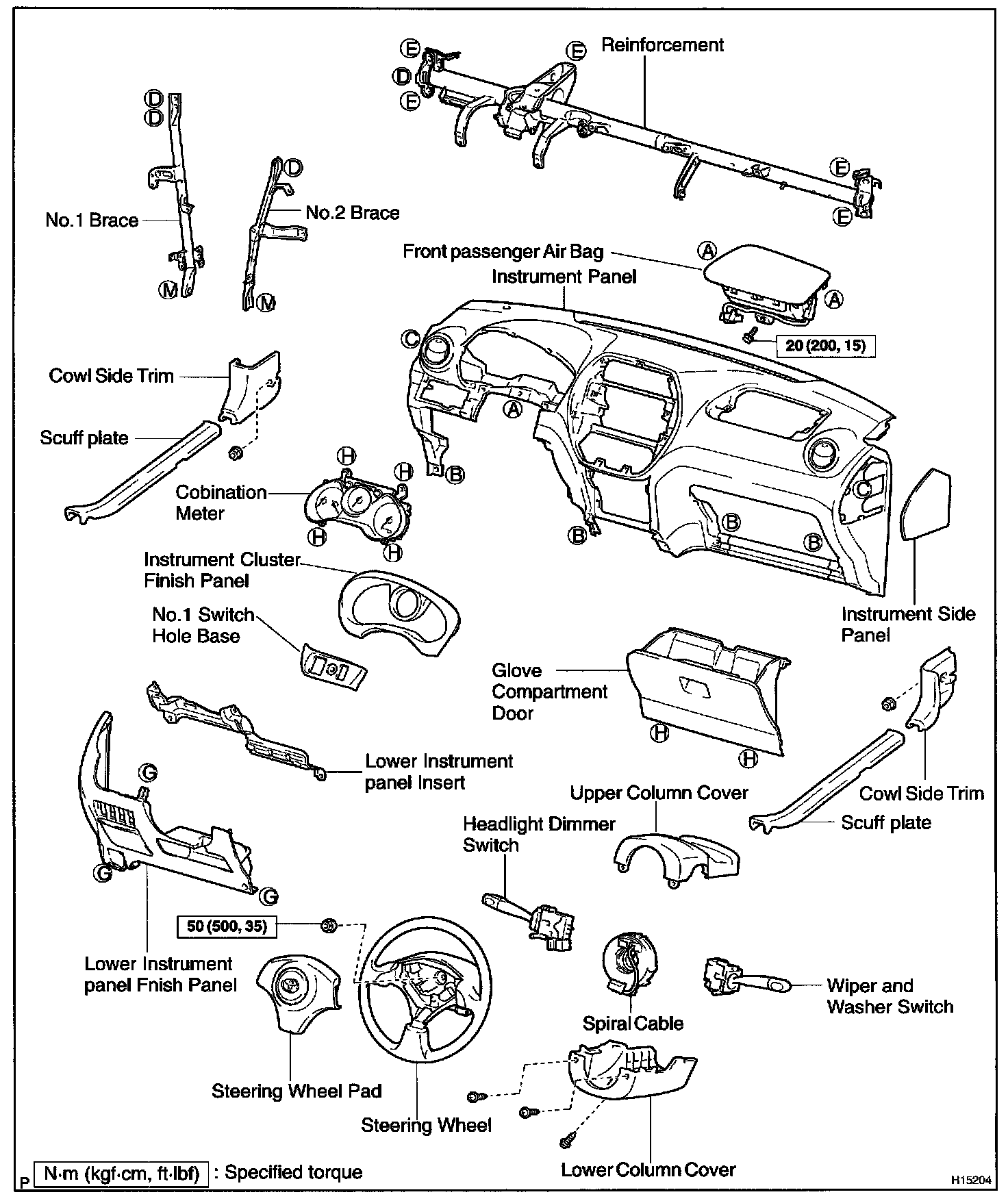

Dashboard / Instrument Panel: Specifications
Instrument Panel:
Instrument Panel:
Instrument Panel:
Instrument Panel:
