Park/Neutral Position Switch Circuit (A/T)

Park/Neutral Position Switch Circuit (A/T)

CIRCUIT DESCRIPTION

When the shift position is except D, a signal is sent from the park/neutral position switch to the ECM. When this signal is input during the cruise control driving, the ECM cancels the cruise control.

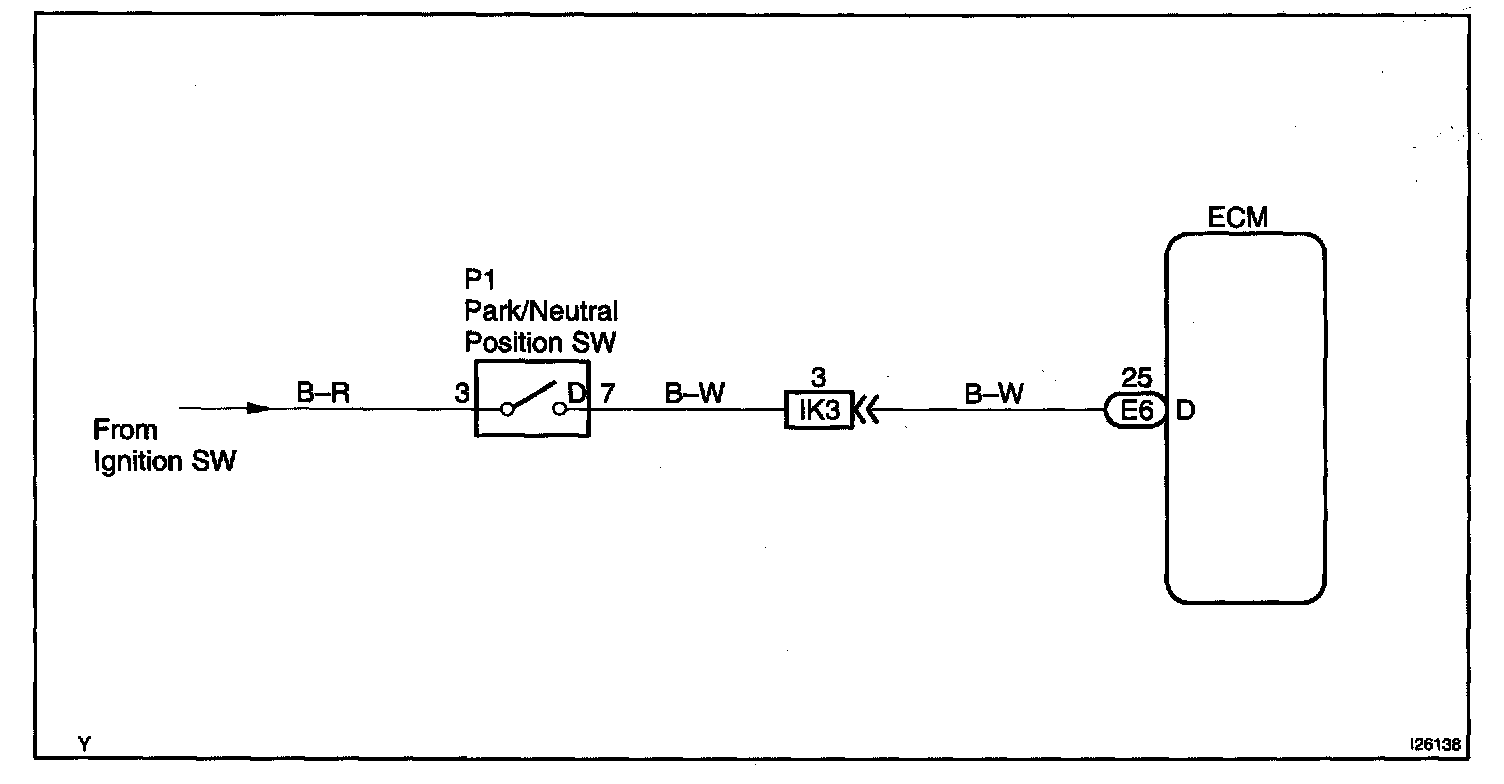

Wiring Diagram:

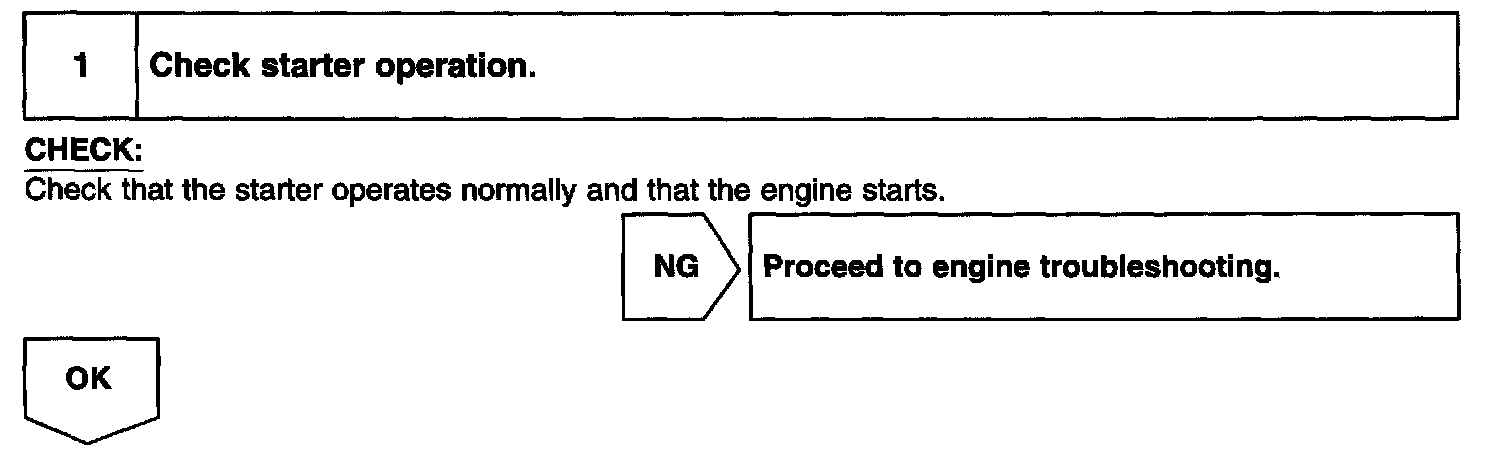

Step 1:

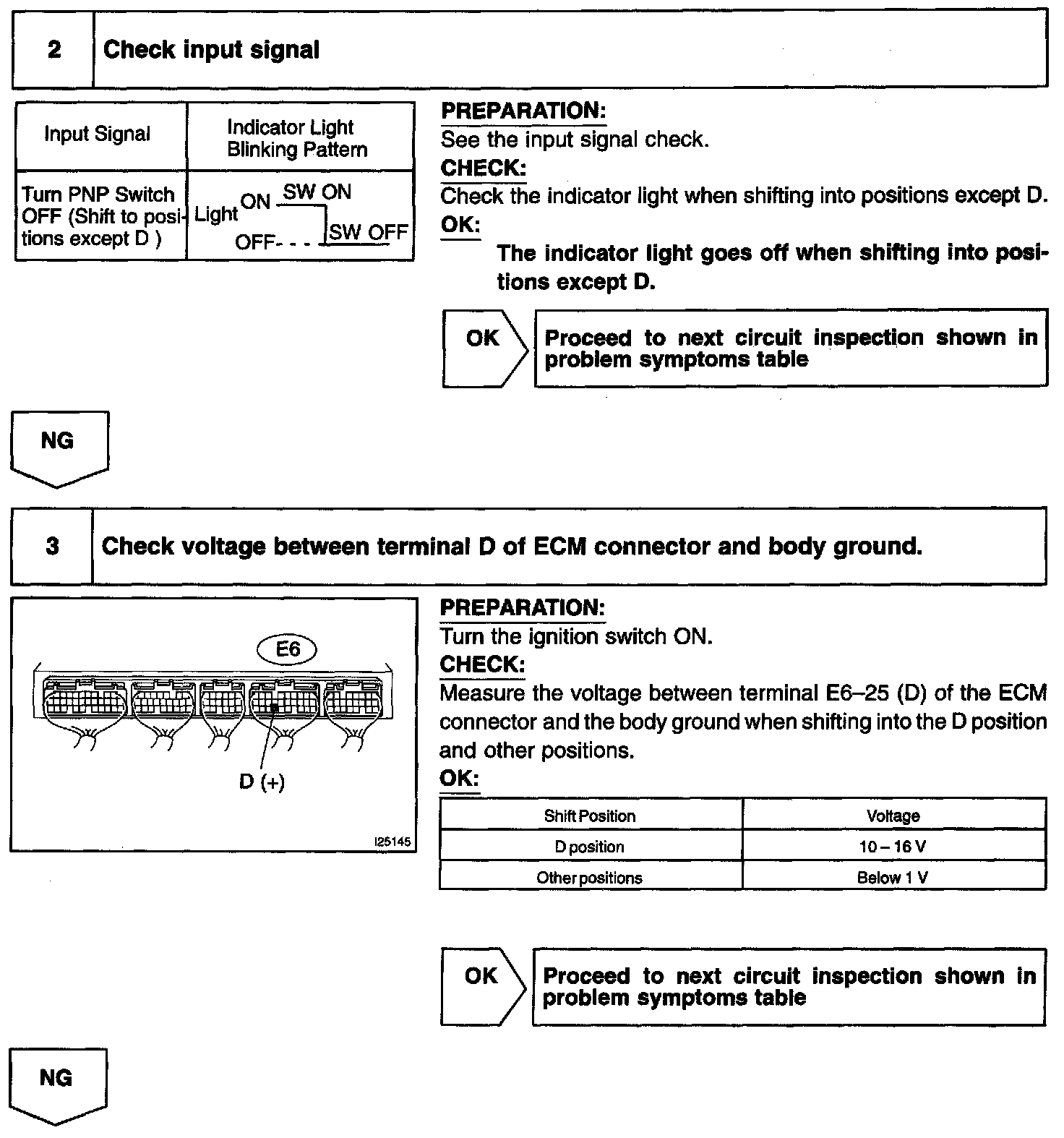

Step 2 - 3:

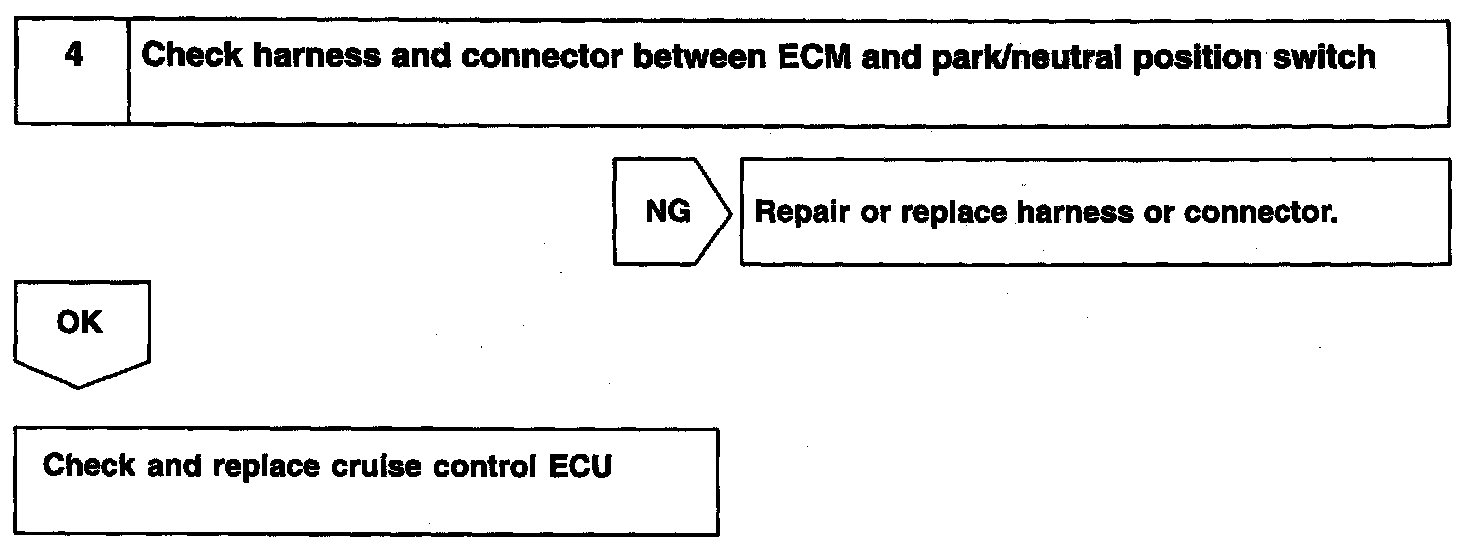

Step 4:

INSPECTION PROCEDURE
