Cruise Control (5VZ-FE 2WD M/T, 3RZ-FE and 2RZ-FE)

Cruise Control Part 1:

Cruise Control Part 2:

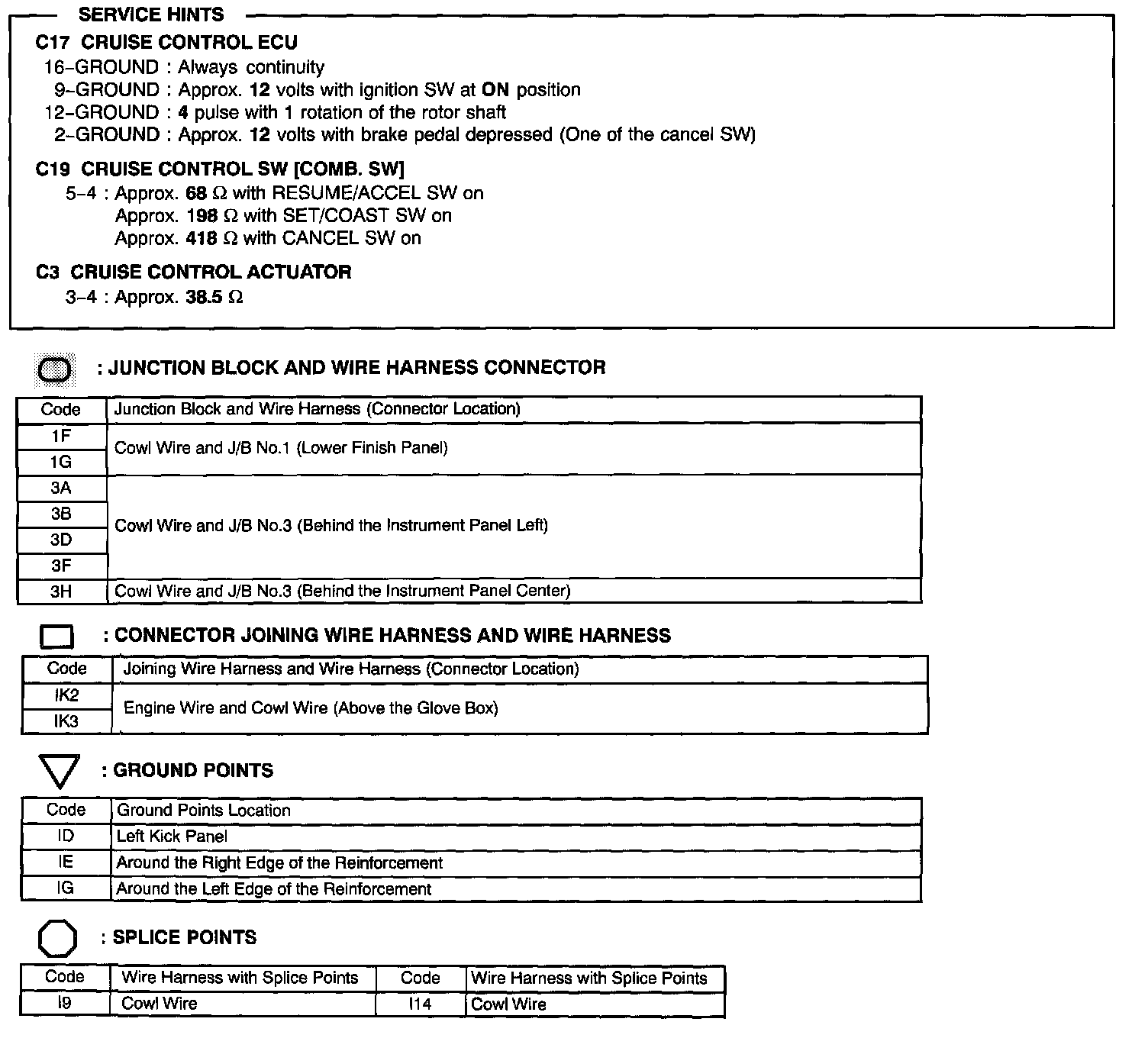

Diagram Legend:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations.

Connector Views: The connector views for connectors referred to within these diagrams can be found at the Vehicle level Connector Views.
