System Diagram

Combination Meter Part 1:

Combination Meter Part 2:

Combination Meter Part 3:

Combination Meter Part 4:

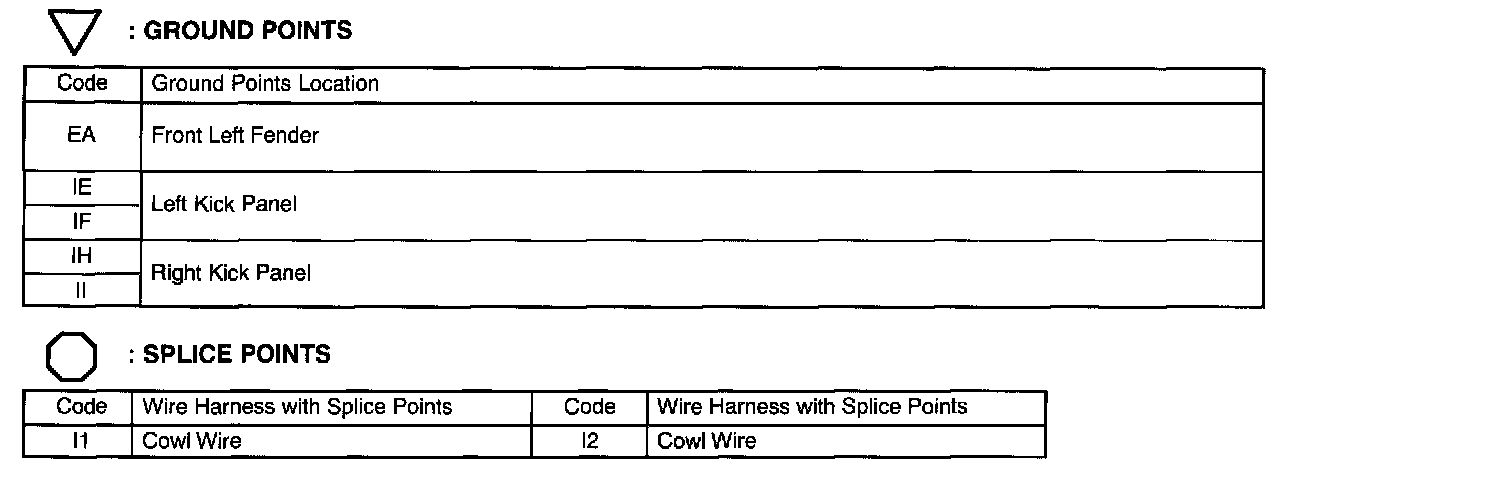

Diagram Legend Part 1:

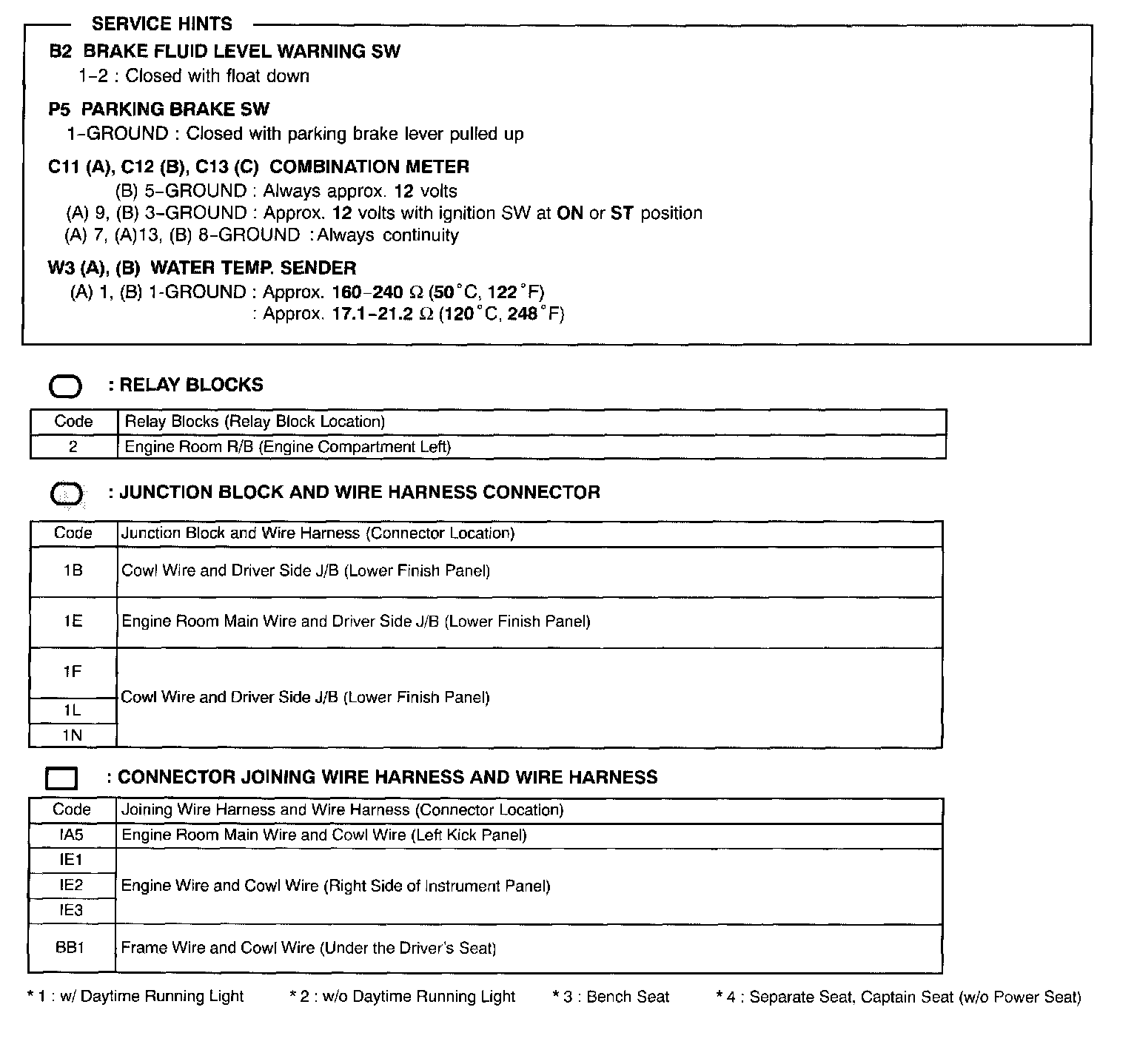

Diagram Legend Part 2:

Locations: The locations of components, connectors, ground points and splices referred to within these diagrams can be found at Vehicle Locations.

Connector Views: The connector views for connectors referred to within these diagrams can be found at the Vehicle level Connector Views.
