Problem Symptom Confirmation (Road Test)

PROBLEM SYMPTOM CONFIRMATION (ROAD TEST)




a. Inspect the SET switch.
1. Push the main switch ON.
2. Drive at the see speed (40 km/h (25 mph) or higher).
3. Press the control switch downward for the -/SET.
4. Release the switch, and check that the vehicle cruises at the set speed.

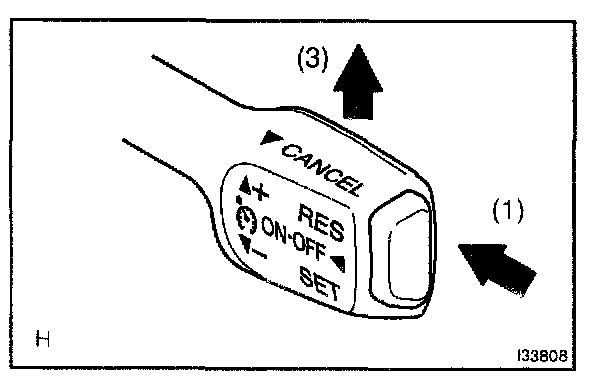

b. Inspect the ACCEL switch.
1. Push the main switch ON
2. Drive at the see speed (40 km/h (25 mph) or higher).
3. Check that the vehicle speed increases while the control switch is turned to +/RES, and that the vehicle cruises at the set speed when the switch is released.
4. Momentarily push the control switch upward in the +/RES direction and then immediately release it. Check that the vehicle speed increases by about 1.5 km/h (Tap-up function).

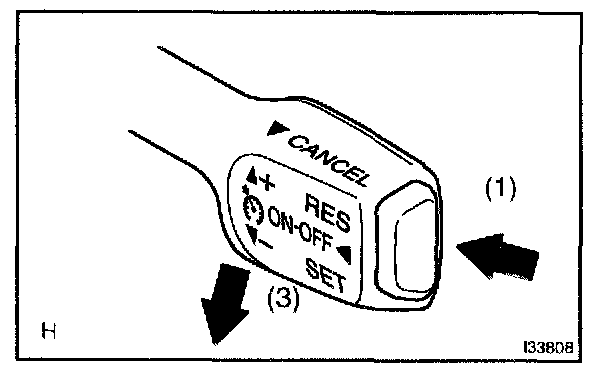

c. Inspect the COAST switch.
1. Push the main switch ON.
2. Drive at the set speed (40 km/h (25 mph) or higher).
3. Check that the vehicle speed decreases while the control switch is turned to -/SET, and the vehicle cruises at the set speed when the switch is released.
4. Momentarily push the control switch downward for the -/SET and then immediately release it. Check that the vehicle speed decreases by about 1.5 km/h (Tap-down function).




d. Inspect the CANCEL switch.
1. Push the main switch ON.
2. Drive at the set speed (40 km/h (25 mph) or higher).
3. When operating one of the followings, check that the cruise control system is cancelled and that the normal driving mode is reset.
- Depress the brake pedal.
- Shift into any positions except the D position.
- Push the main switch OFF.
- Pull the cruise control switch for CANCEL.




e. Inspect the RESUME switch.
1. Push the main switch ON.
2. Drive at the set speed (40 km/h (25 mph) or higher).
3. When operating one of the followings, check that the cruise control system is cancelled and that the normal driving mode is reset.
- Depress the brake pedal.
- Shift into any positions except the D position.
- Pull the cruise control switch for CANCEL.

4. Turn the control switch to +/RES at the driving speed of more than 40 km/h (25 mph), and check that the vehicle restores the speed before the cancellation.
