Disassembly and Reassembly
HEATER CONTROL ASSEMBLYDISASSEMBLY
1. REMOVE HEATER CONTROL CABLES

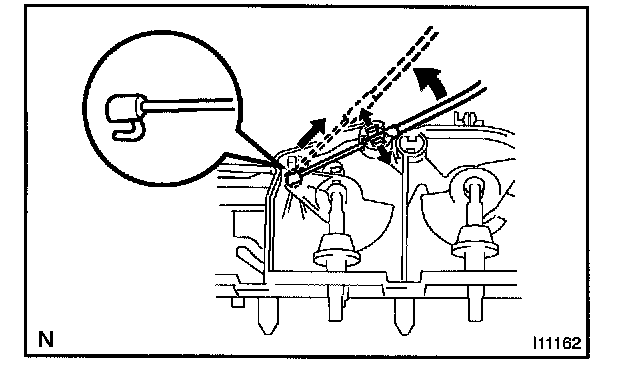

a. Using a screwdriver, spread the claw of the cable clamp and disconnect the outer cable.
HINT: Tape the screwdriver tip before use.
b. Remove the inner cable from the heater control assembly.

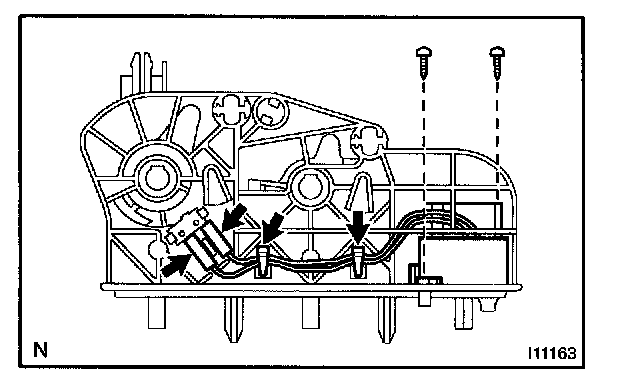

2. REMOVE BLOWER SPEED CONTROL SWITCH
a. Disconnect the connector.
b. Remove the 2 screws.
c. Remove the switch.

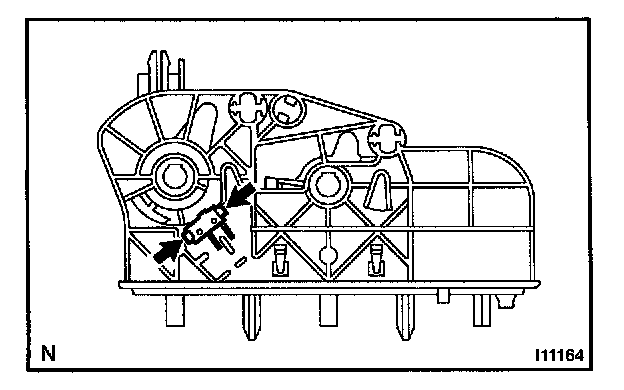

3. REMOVE DEF. MODE SWITCH
Release the 2 claws, then remove the switch.
HINT: Tape the screwdriver tip before use.
REASSEMBLY
1. INSTALL DEF. MODE SWITCH
Install the switch.
HINT: After installation, check the fitting 2 claws.
2. INSTALL BLOWER SPEED CONTROL SWITCH
a. Install the switch with the 2 screws.
b. Connect the connector.
3. INSTALL HEATER CONTROL CABLES
Install the heater control cables to the heater control assembly.
