Electrical Specifications

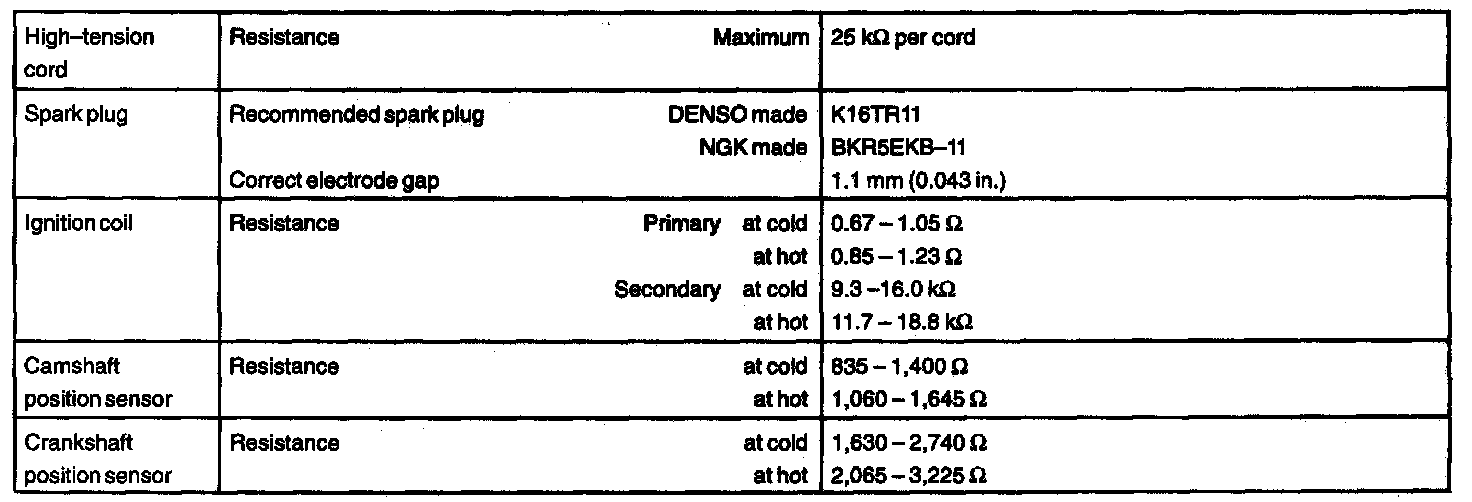

Service Data:





Ignition timing
w/ Terminals TC and CG connected of DLC3 8 - 12° BTDC @ idle
