Tc Terminal Circuit

Tc Terminal Circuit

CIRCUIT DESCRIPTION

By connecting terminals Tc and CG of the DLC3 the airbag sensor assembly is set in the DTC output mode.

The DTCs are displayed by blinking the SRS warning light.

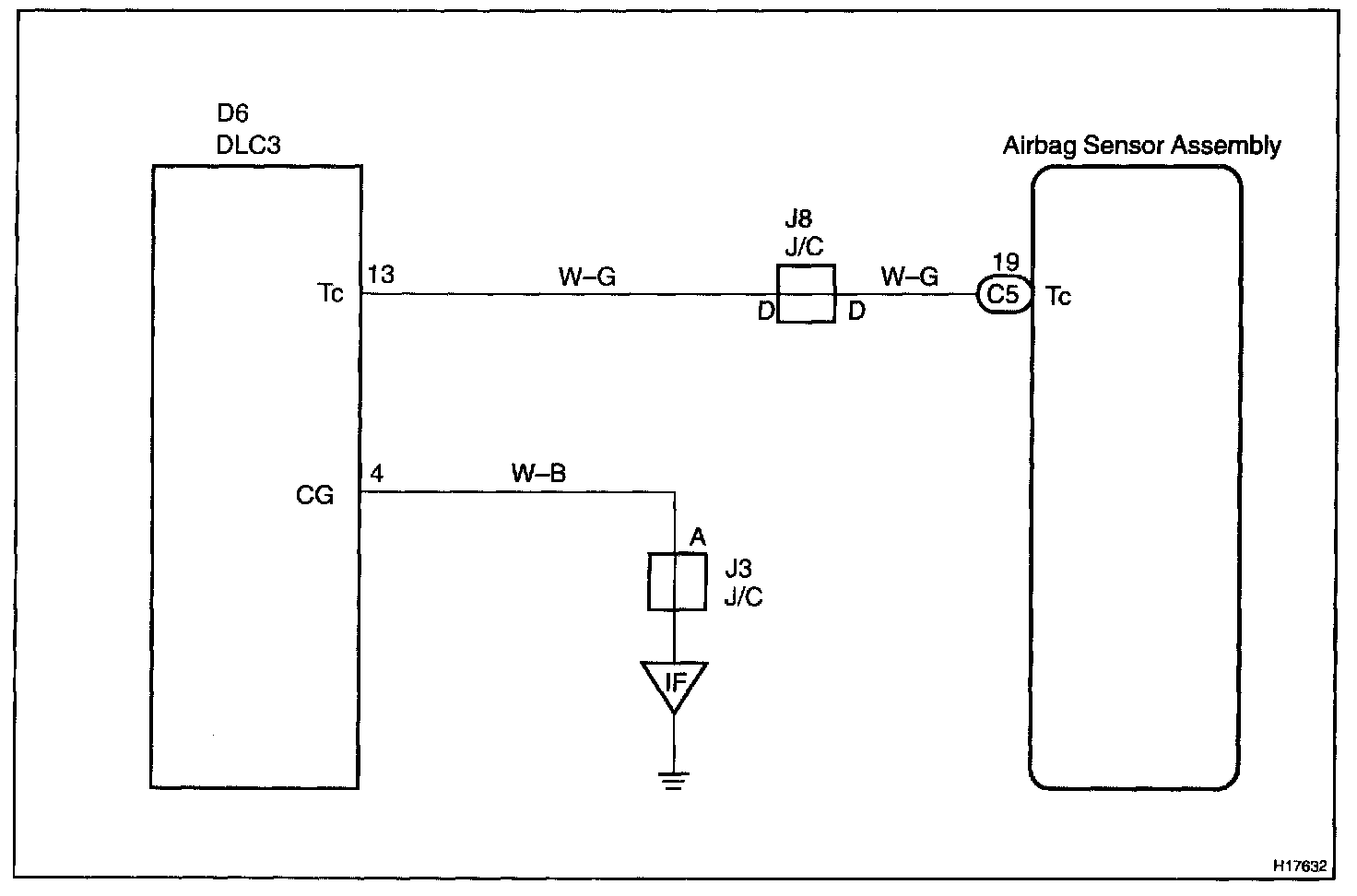

Wiring Diagram:

INSPECTION PROCEDURE

Step 1 - 2:

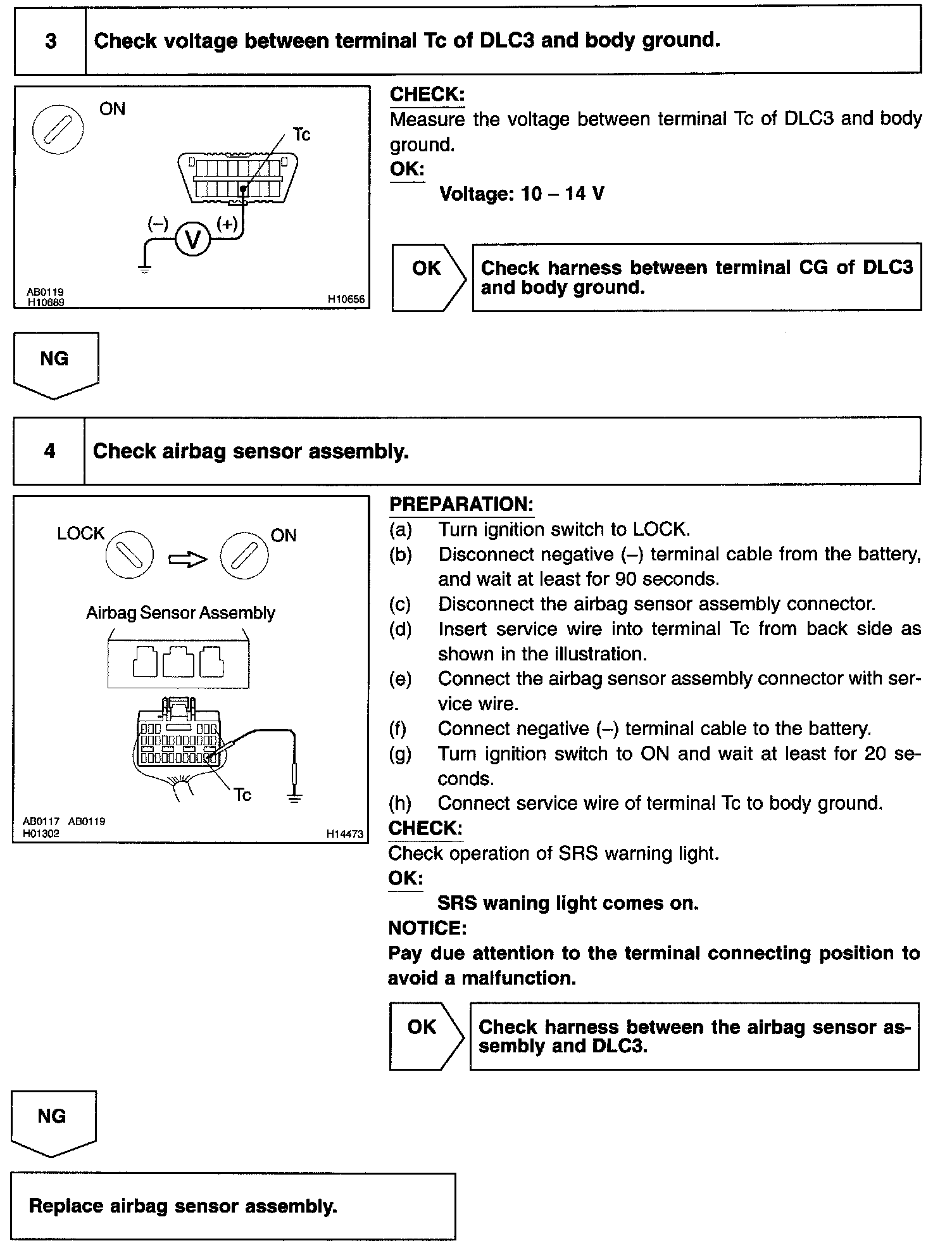

Step 3 - 4:

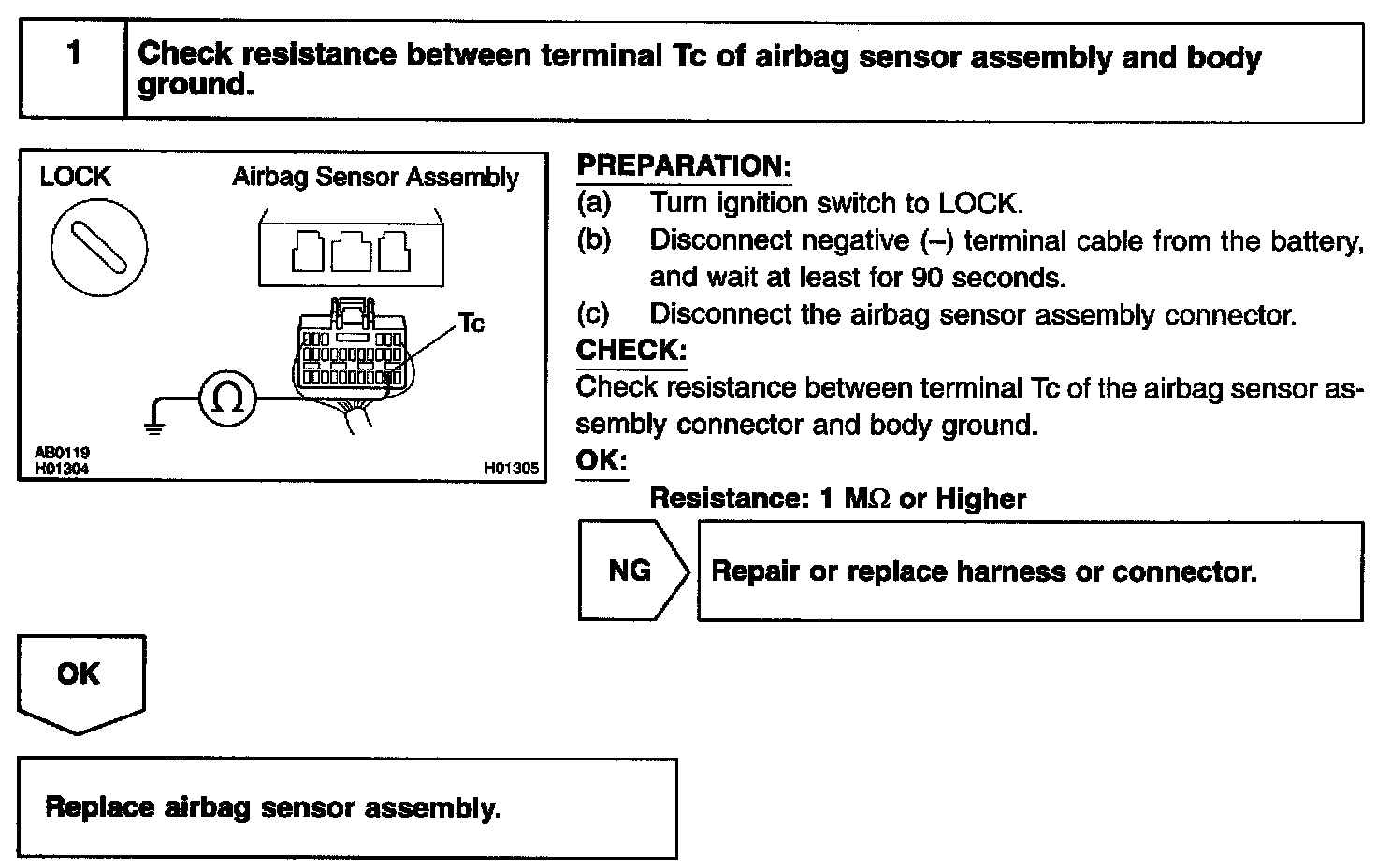

If the DTC is not displayed, do the troubleshooting provided.

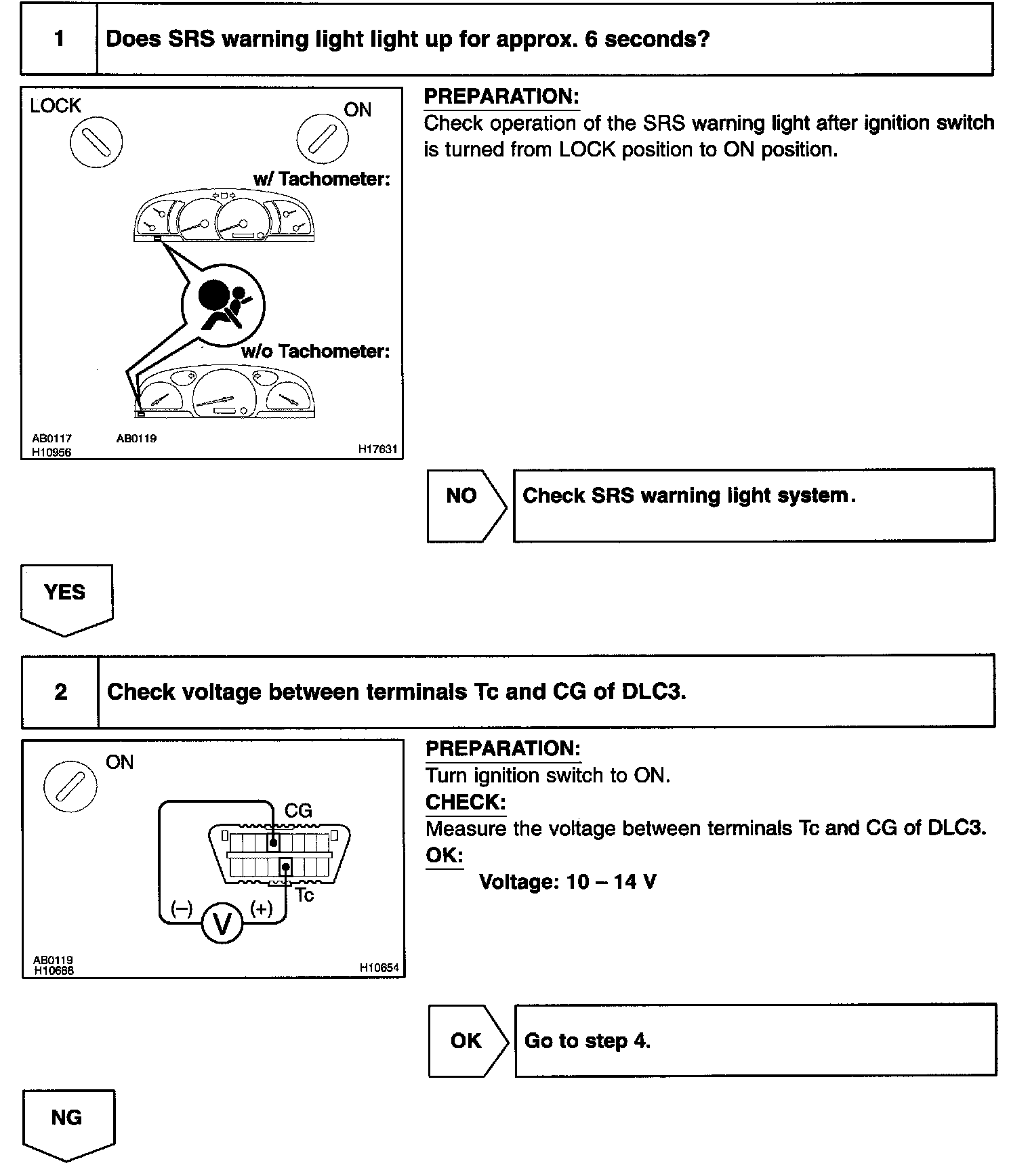

Step 1:

If the DTC is displayed without a DTC check procedure, perform the troubleshooting provided.
