Tundra 4WD V8-4.7L (2UZ-FE)
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Engine
>>
System Specifications
>>
Engine Service Data

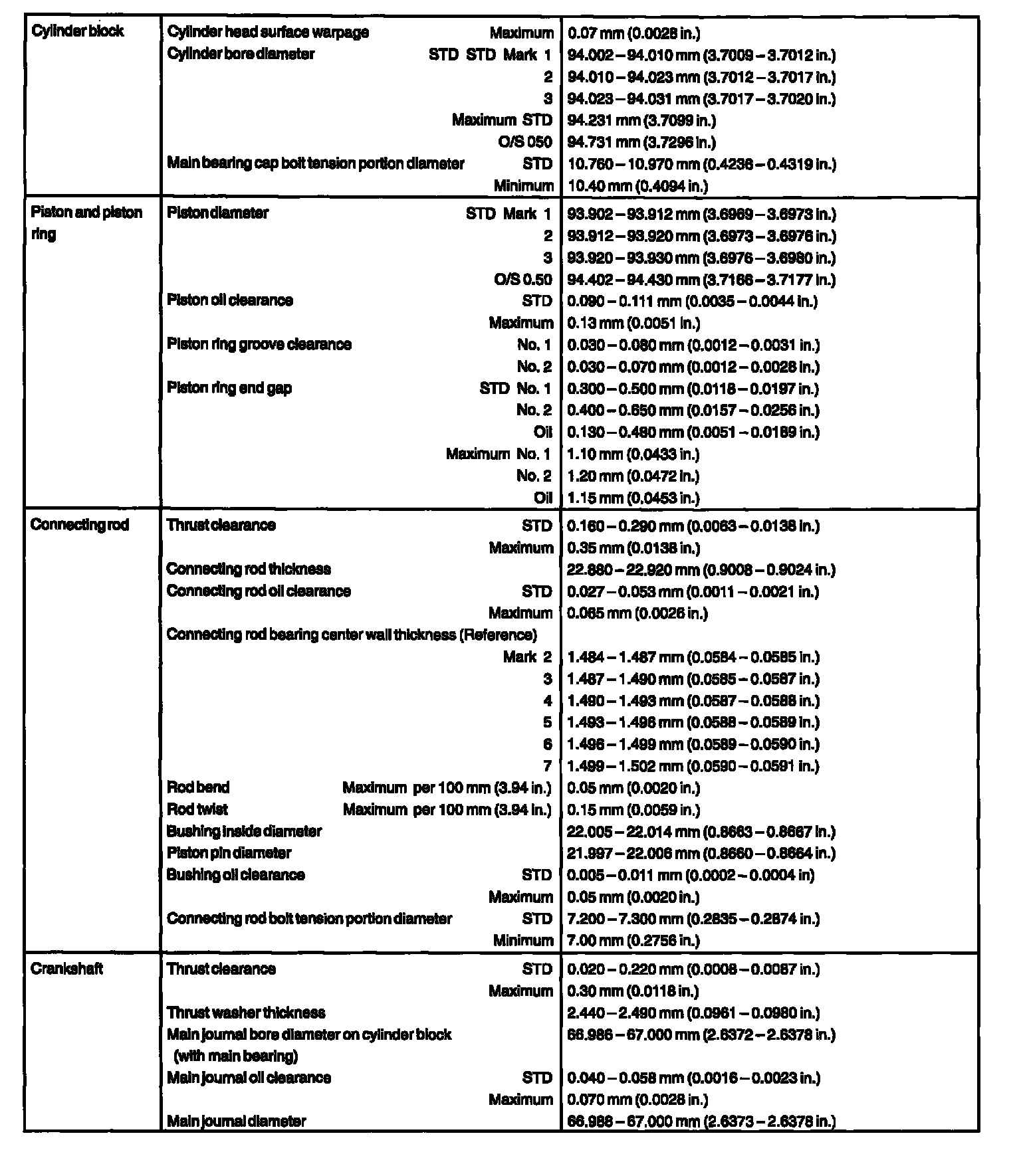

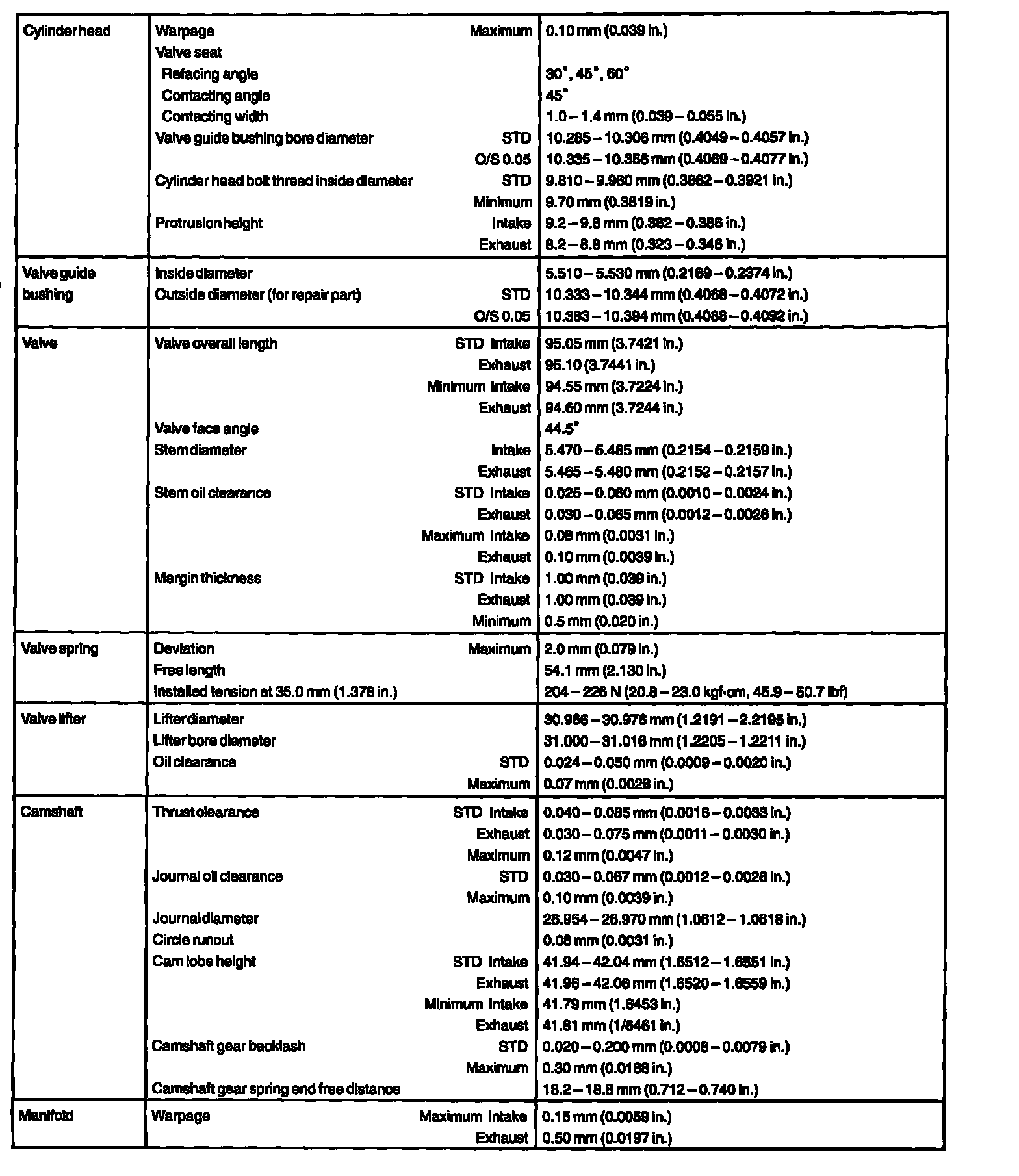

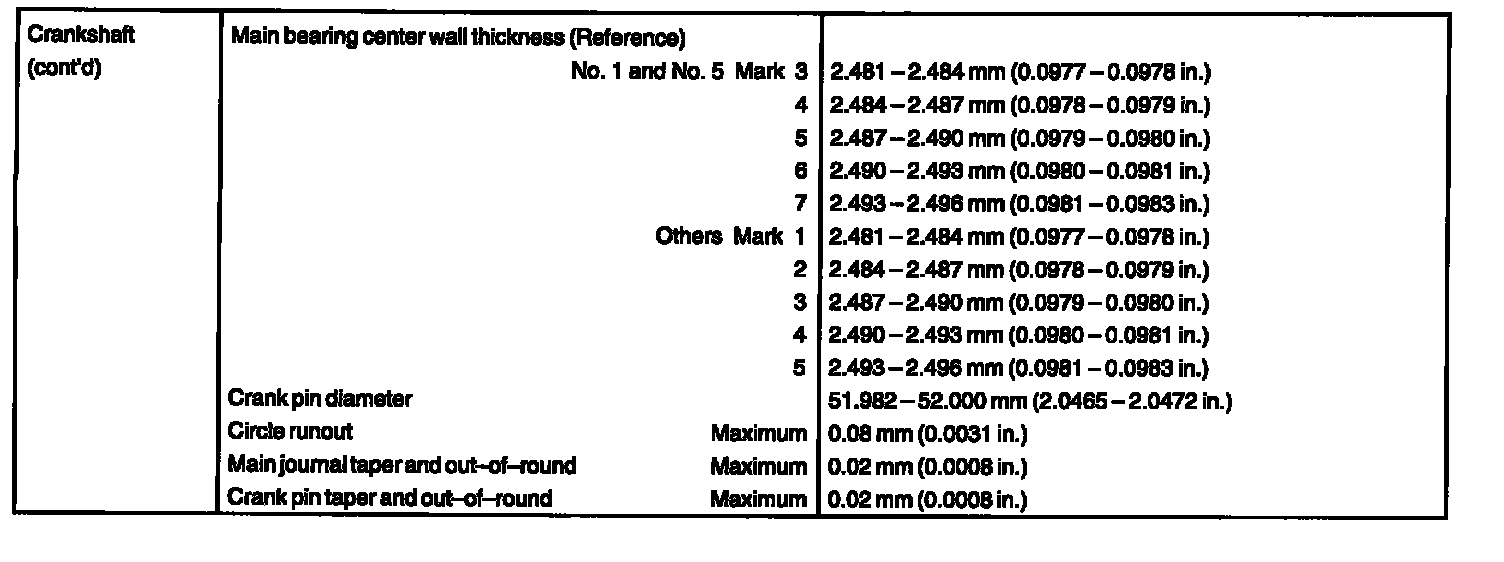

Engine Service Data
Part 1 Of 4:
Part 2 Of 4:
Part 3 Of 4:
Part 4 Of 4:
SERVICE DATA
