Ground Circuits

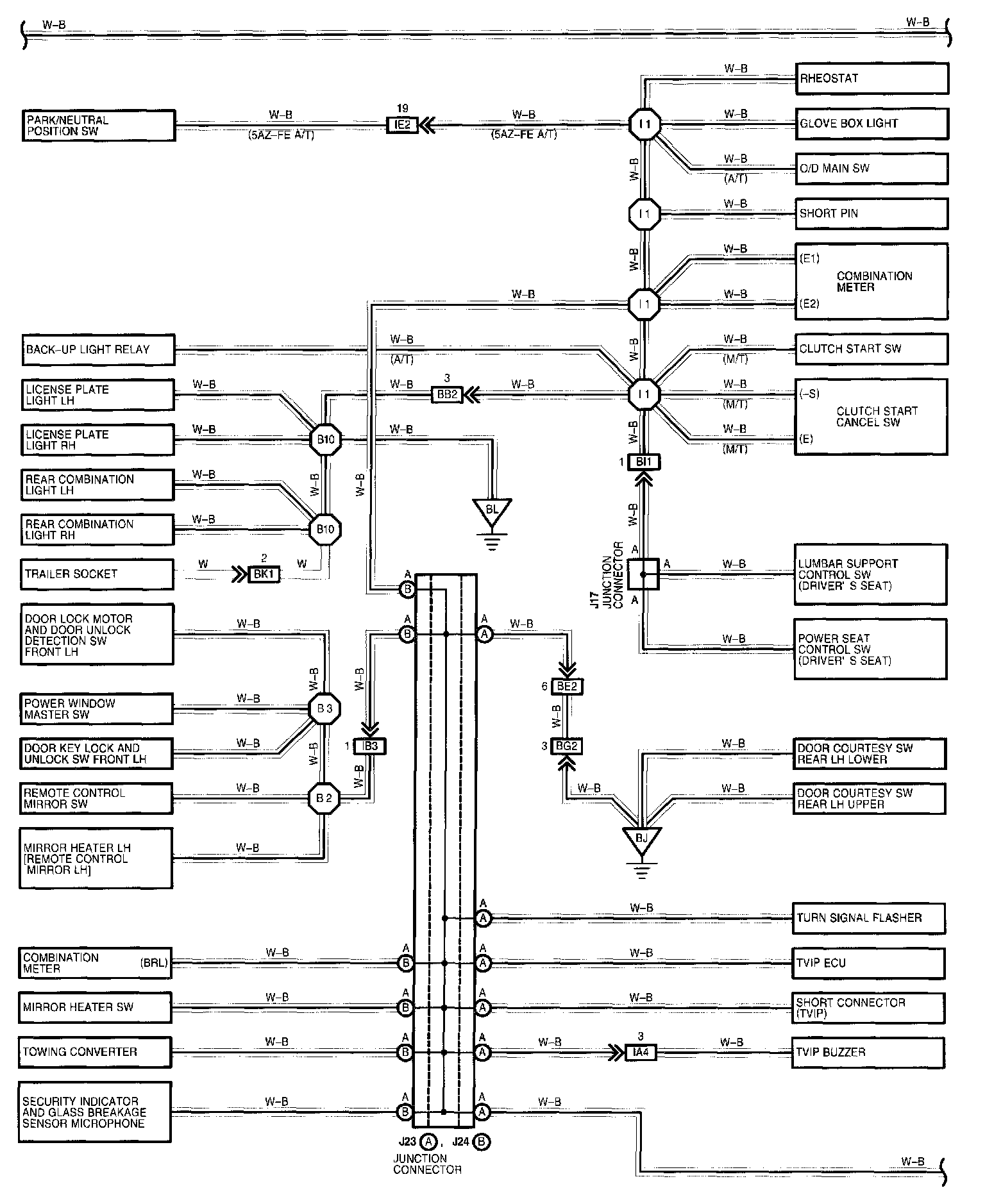

Ground Point Part 1:

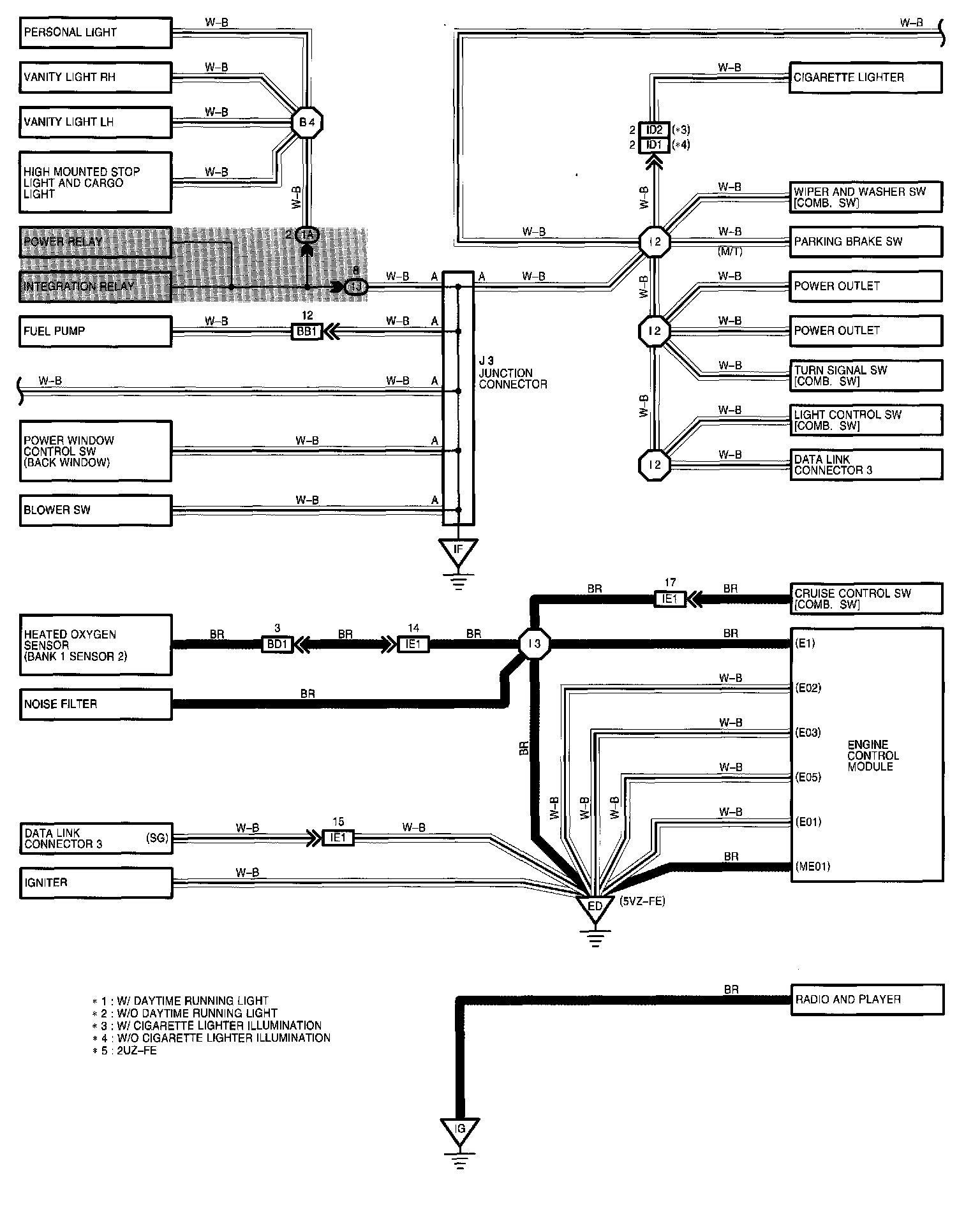

Ground Point Part 2:
Ground Point Part 3:
Ground Point Part 4:

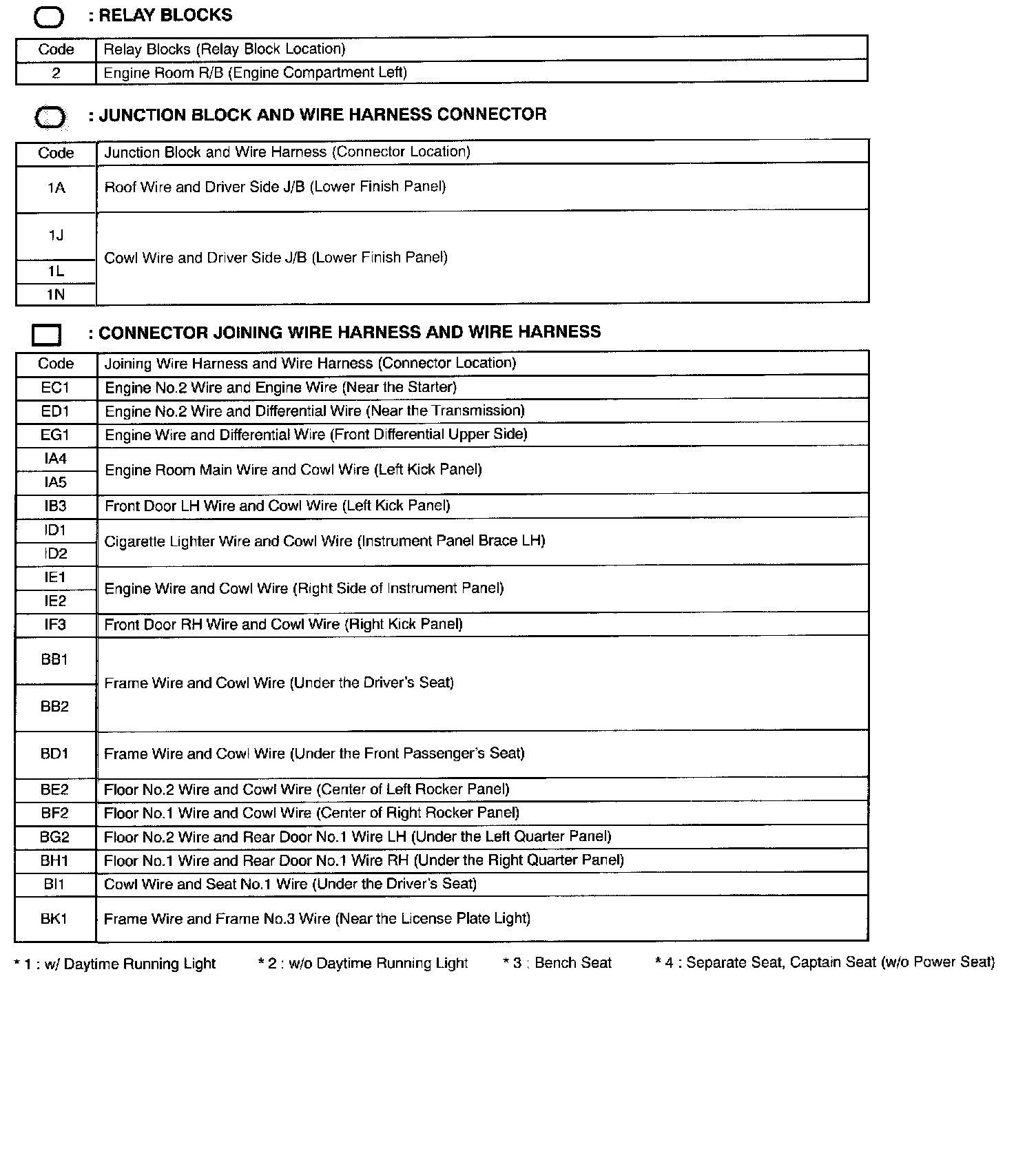

Diagram Legend Part 1:

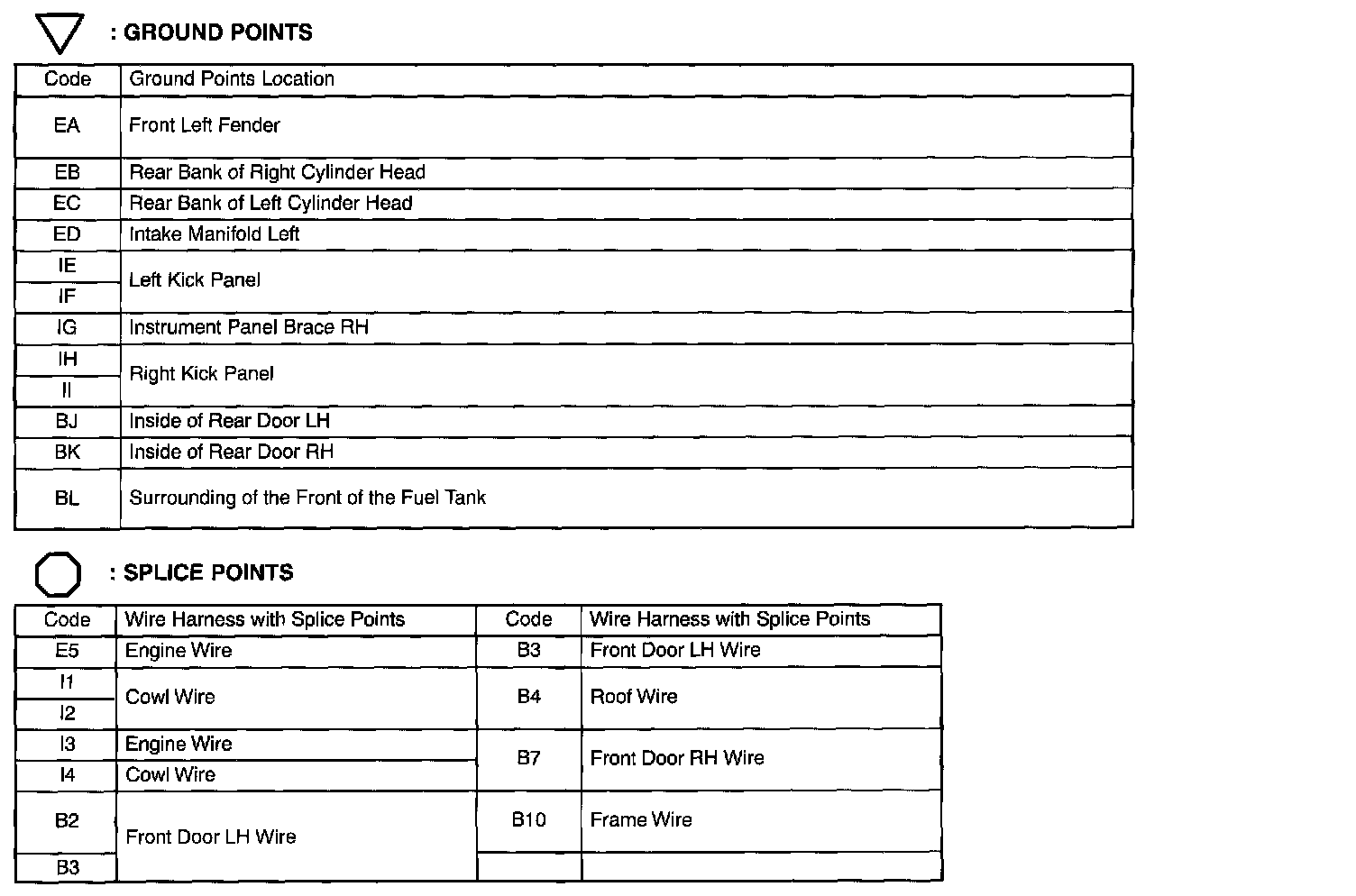

Diagram Legend Part 2:
Locations: The locations of components, connectors, ground points and splices referred to within these diagrams can be found at Vehicle Locations. Locations
Connector Views: The connector views for connectors referred to within these diagrams can be found at the Vehicle level Connector Views. Connector Views
