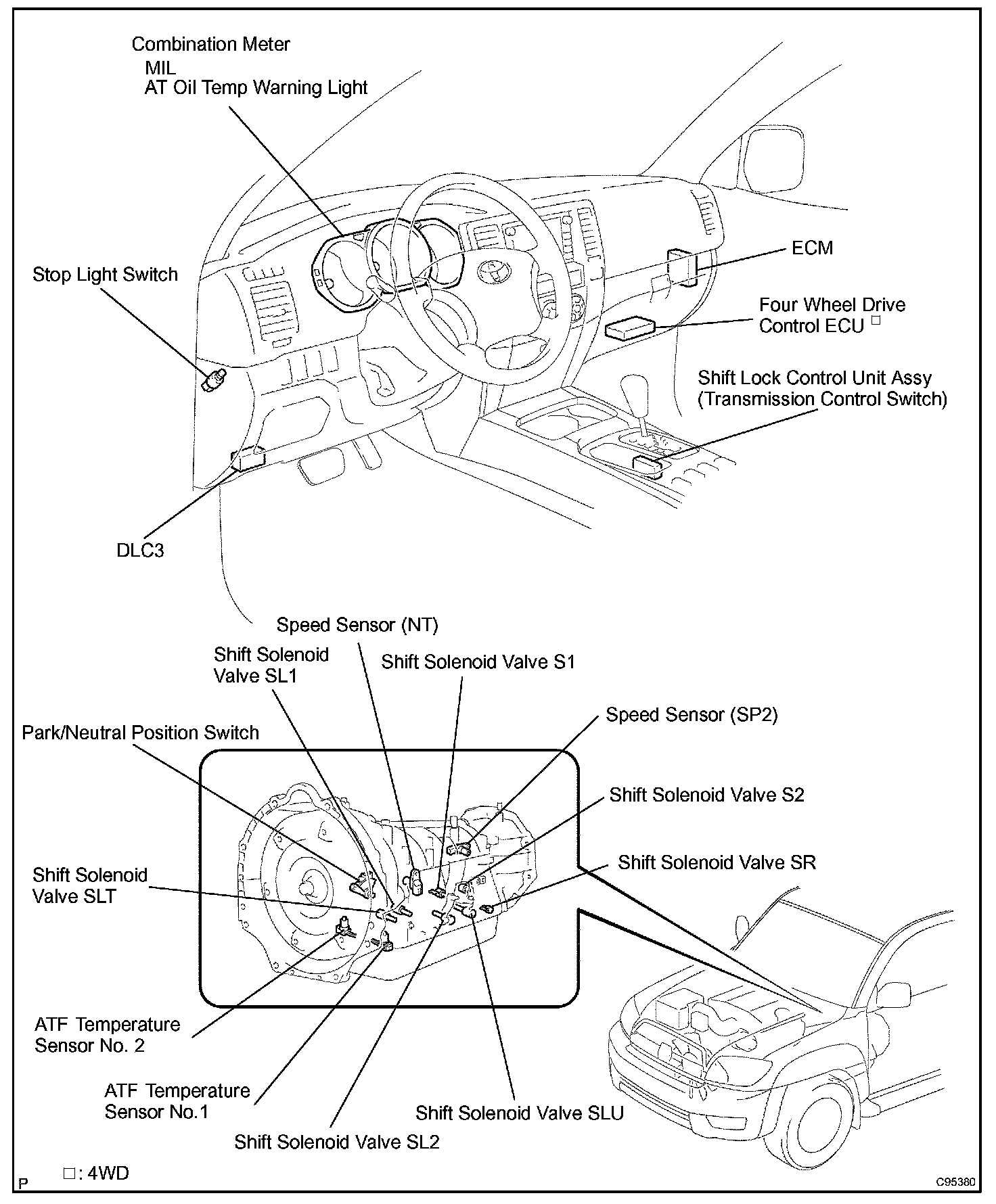

Transmission Control Systems: Locations

Electronic Controlled Automatic Transmission [ECT] (A750E/A750F):
