System Specifications

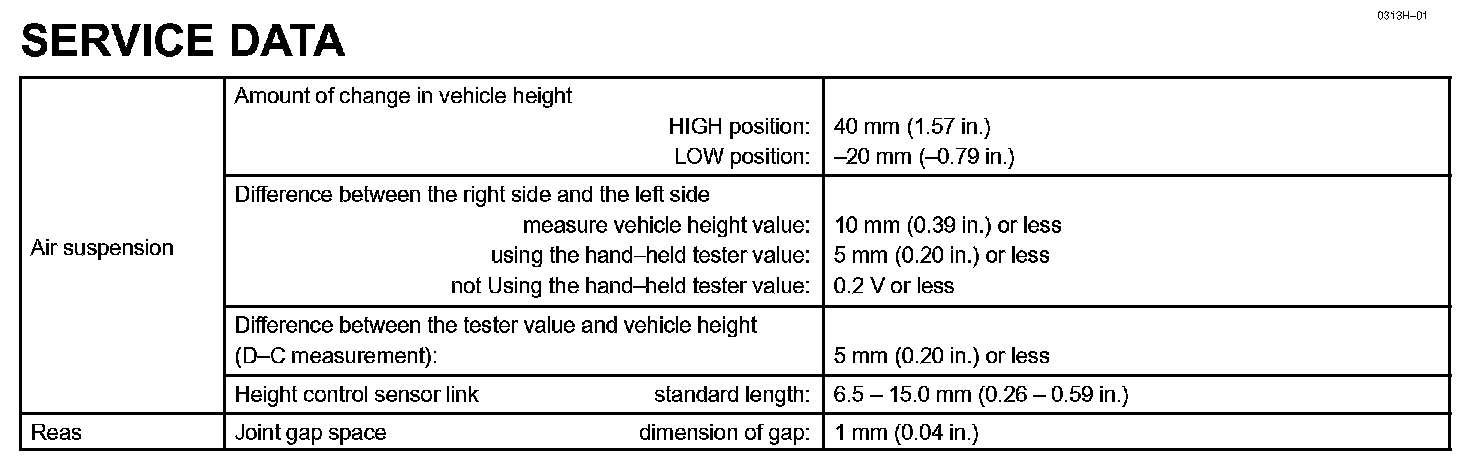

Suspension Control System - Service Data:

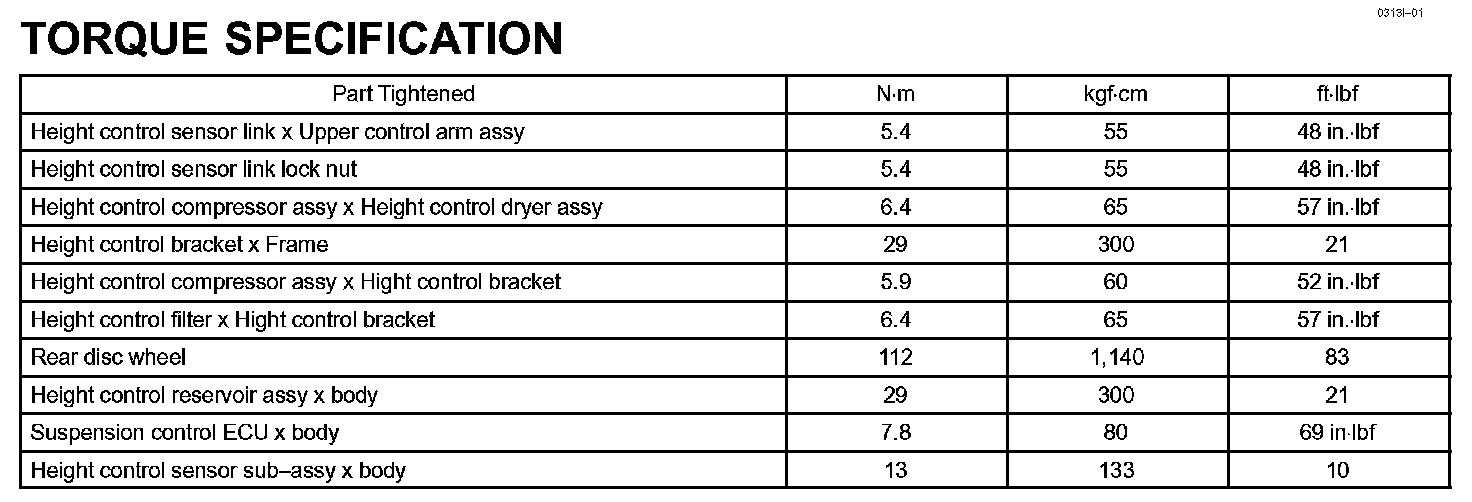

Suspension Control System - Torque Specification:

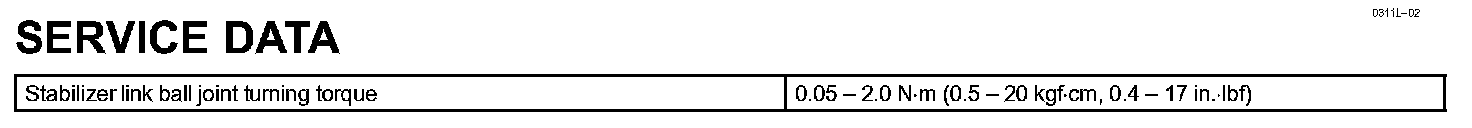

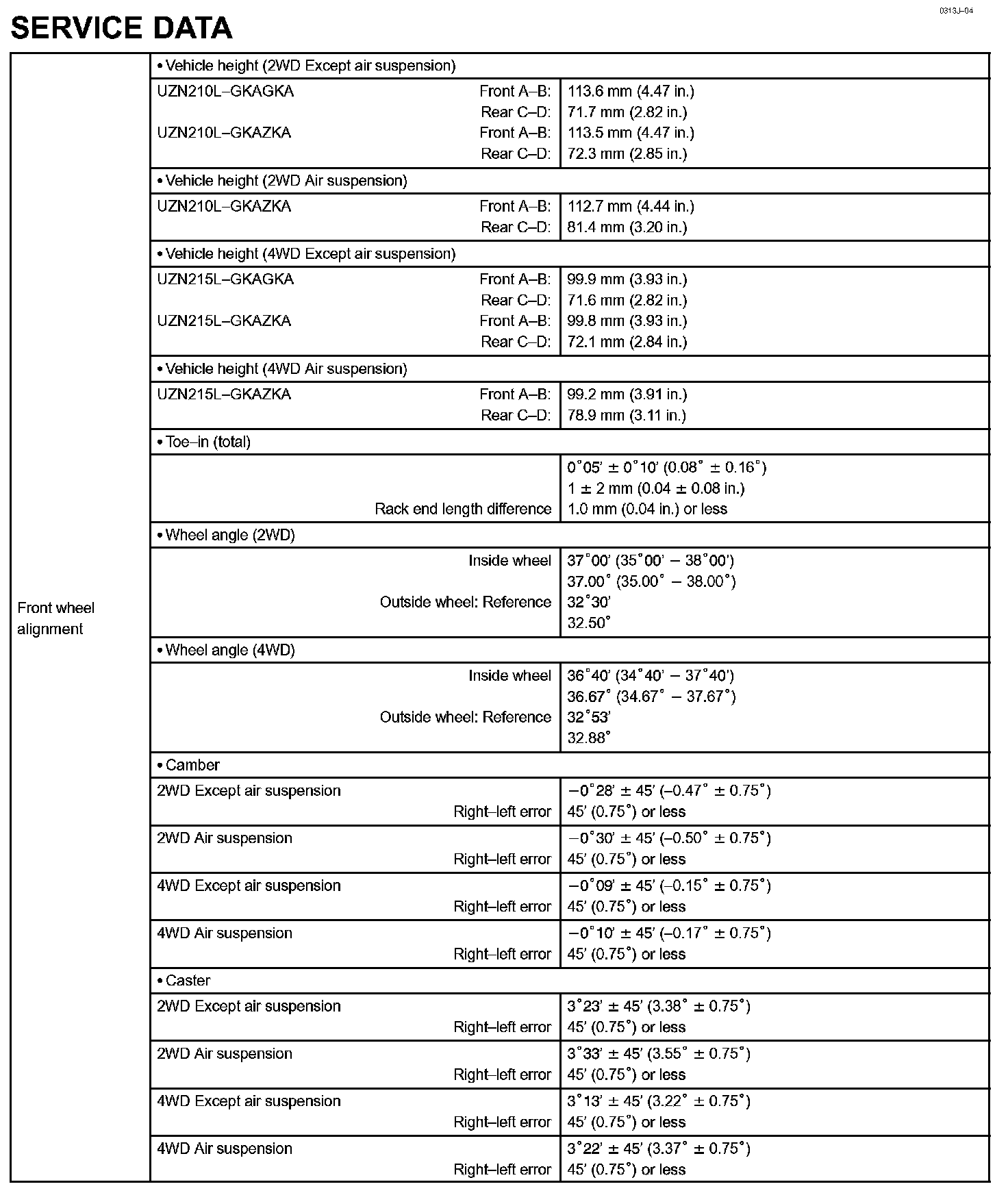

Front Suspension - Service Data Part 1:

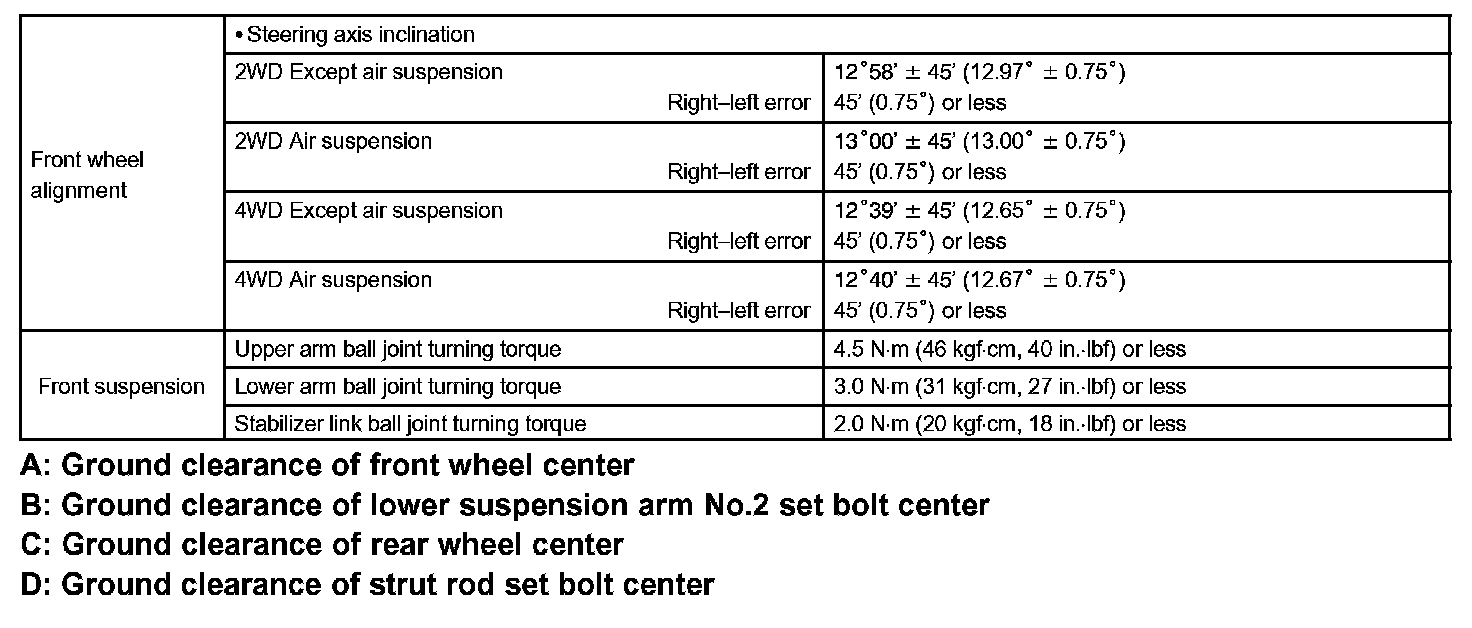

Front Suspension - Service Data Part 2:

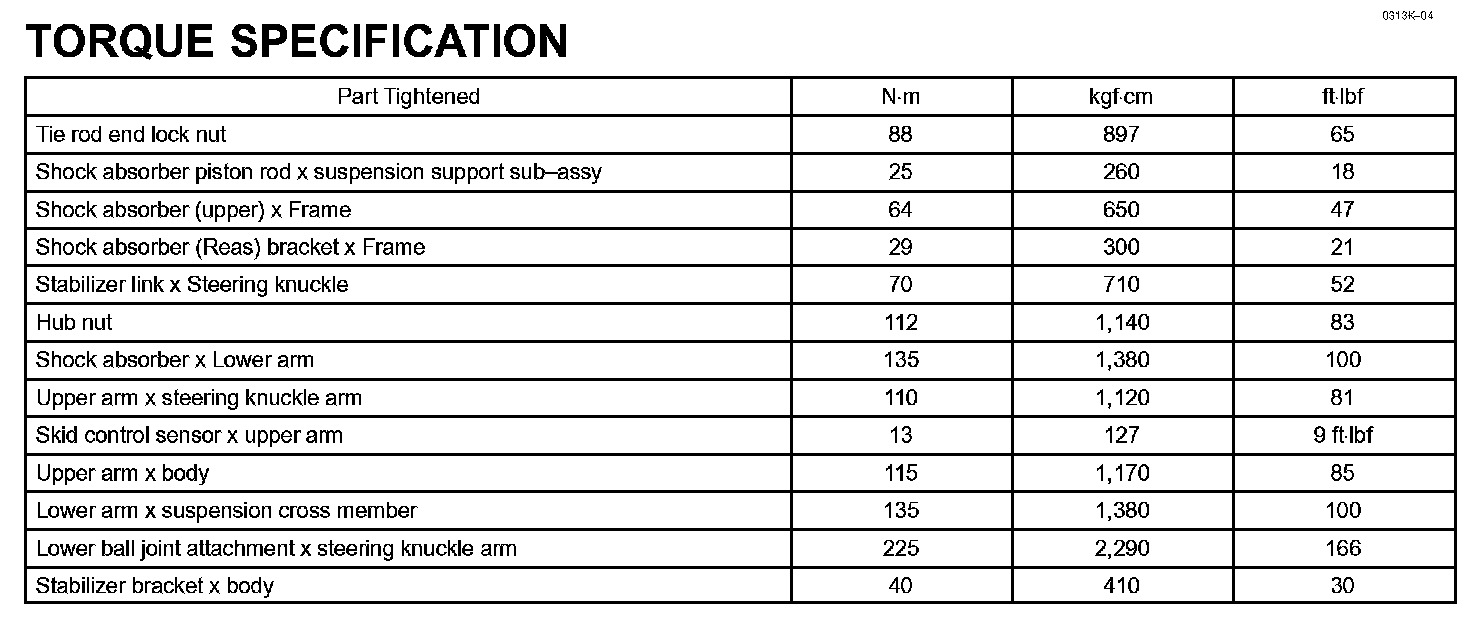

Front Suspension - Torque Specification:

Rear Suspension - Service Data:

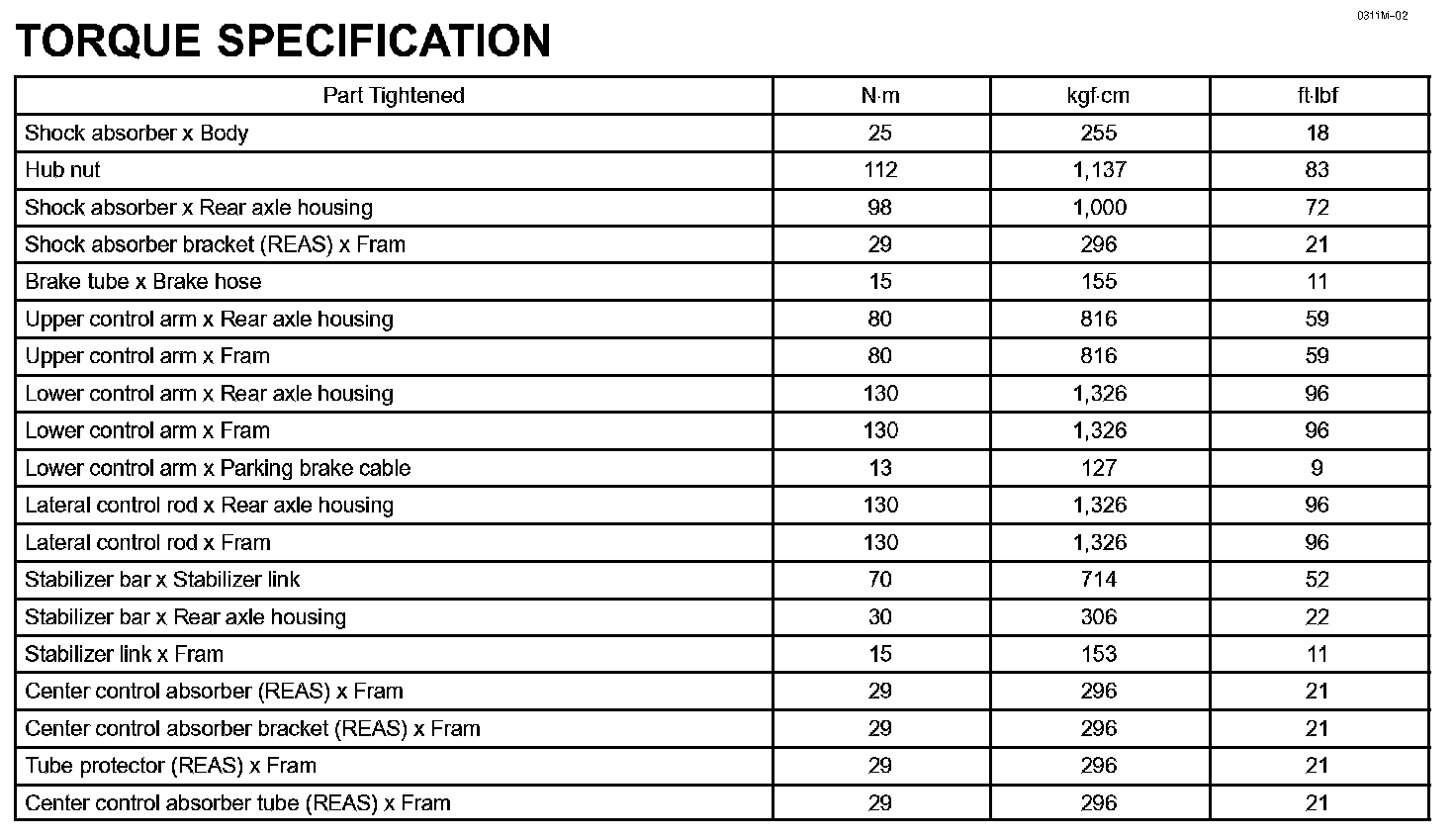

Rear Suspension - Torque Specification:
