Component Tests and General Diagnostics
CIRCUIT DESCRIPTIONThe ECU power source supplies power to the actuator and sensors, etc., when terminal GND and the cruise control ECU case are grounded.

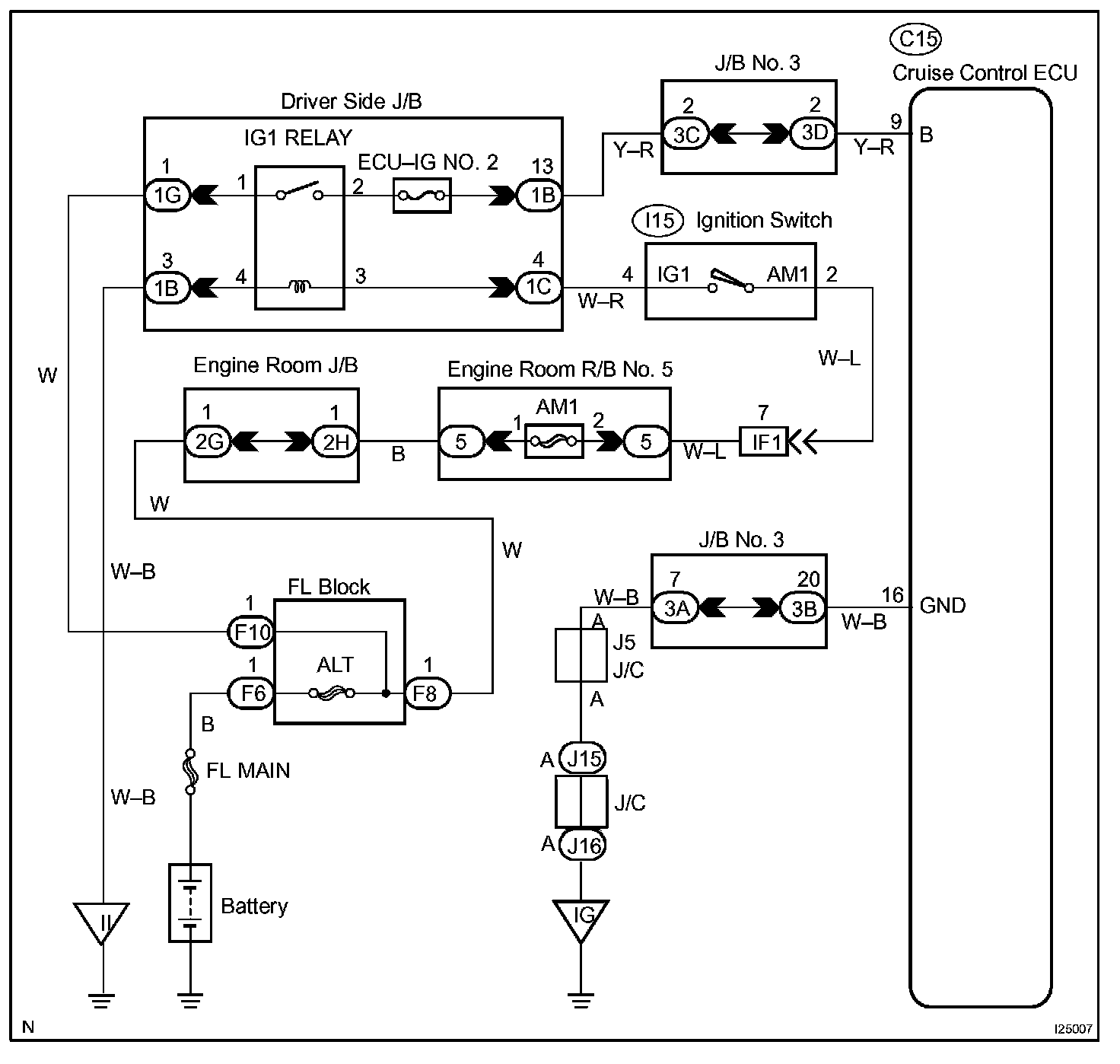

Wiring Diagram:

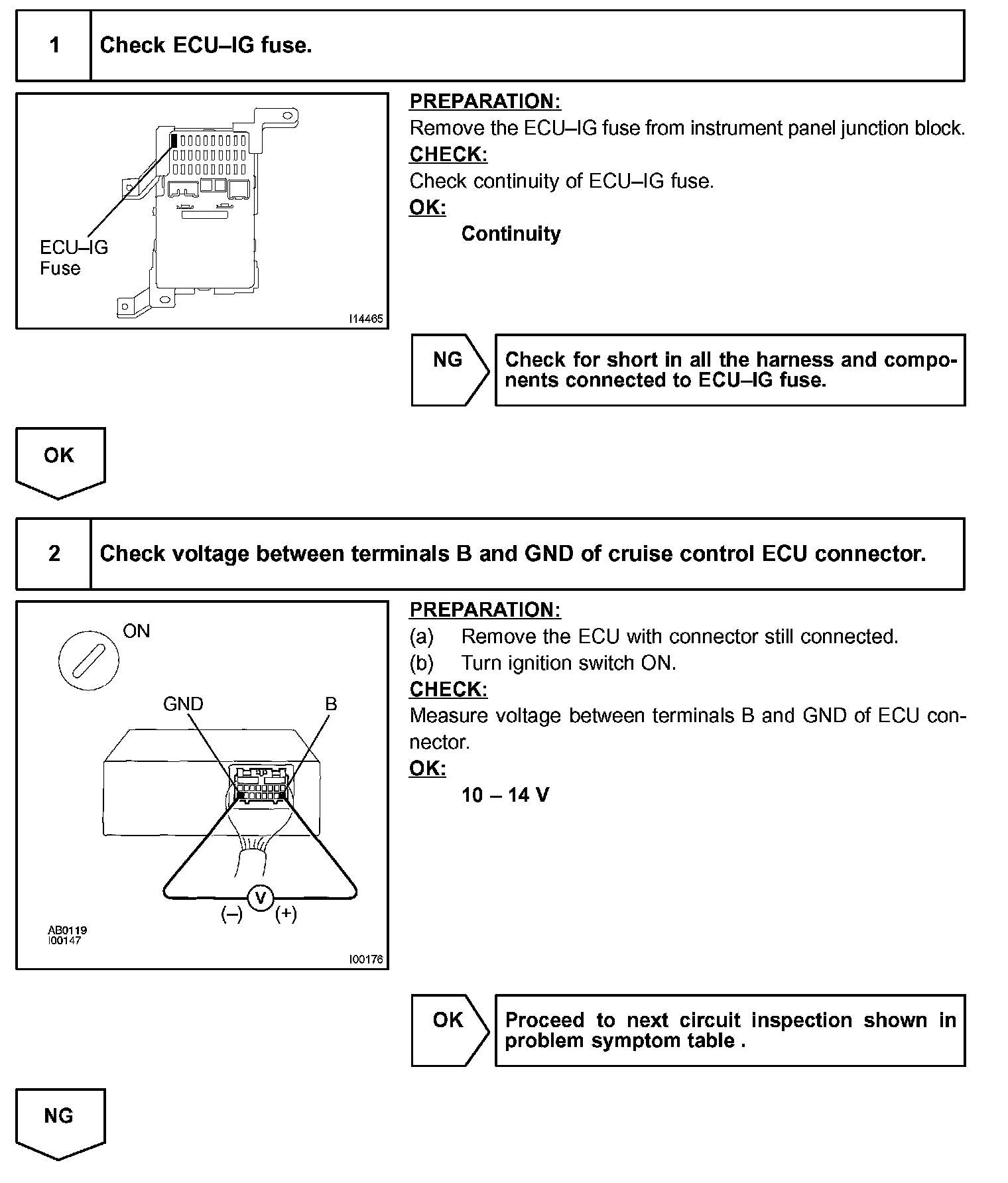

Step 1 - 2:

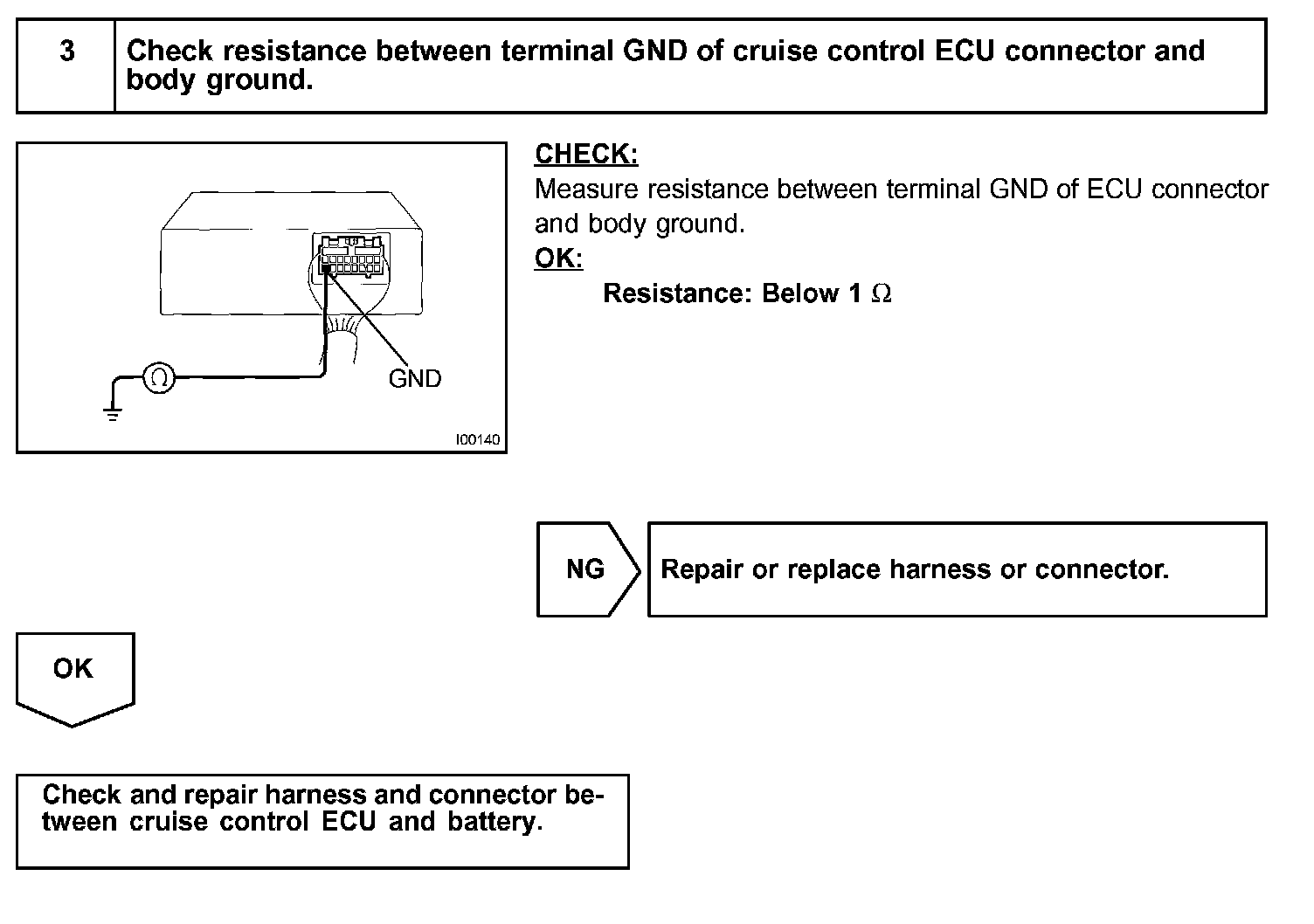

Step 3:
INSPECTION PROCEDURE
