Intake Manifold
Intake manifold Warpage (Maximum)
0.10 mm (0.0039 inch)
Intake manifold x Cylinder head

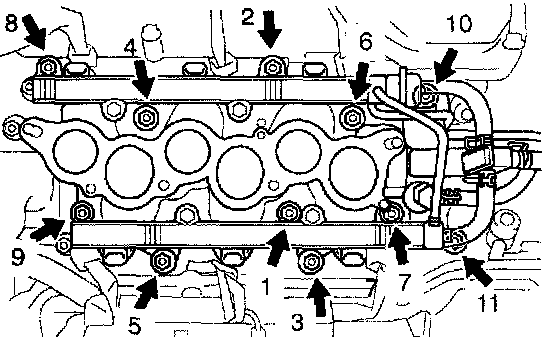

15 Nm (150 kgf-cm, 11 ft. lbs.)
Air intake chamber x
Intake manifold 43 Nm (440 kgf-cm, 32 ft. lbs.)
Throttle body x Throttle body bracket
19.5 Nm (200 kgf-cm, 14 ft. lbs.)
Throttle body x Air intake chamber
19.5 Nm (200 kgf-cm, 14 ft. lbs.)
Throttle body x No.1 intake air control valve
6.9 Nm (70 kgf-cm, 61 inch lbs.)
