Electronic Brake Control Module: Locations

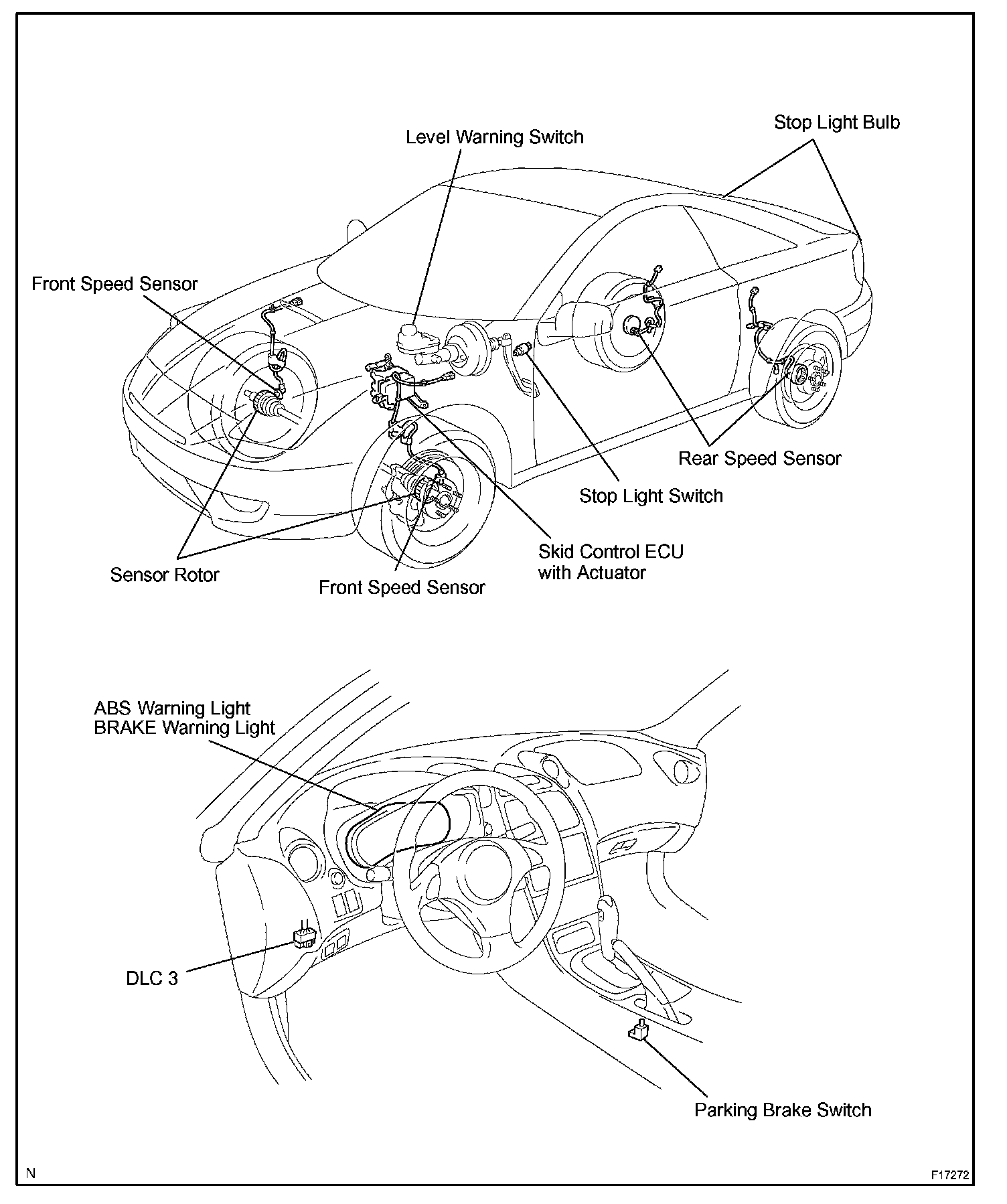

Anti Lock Brake System With Electronic Brake Force Distribution (EBD):



A/C - He:



AB - Lu:
