System Specifications

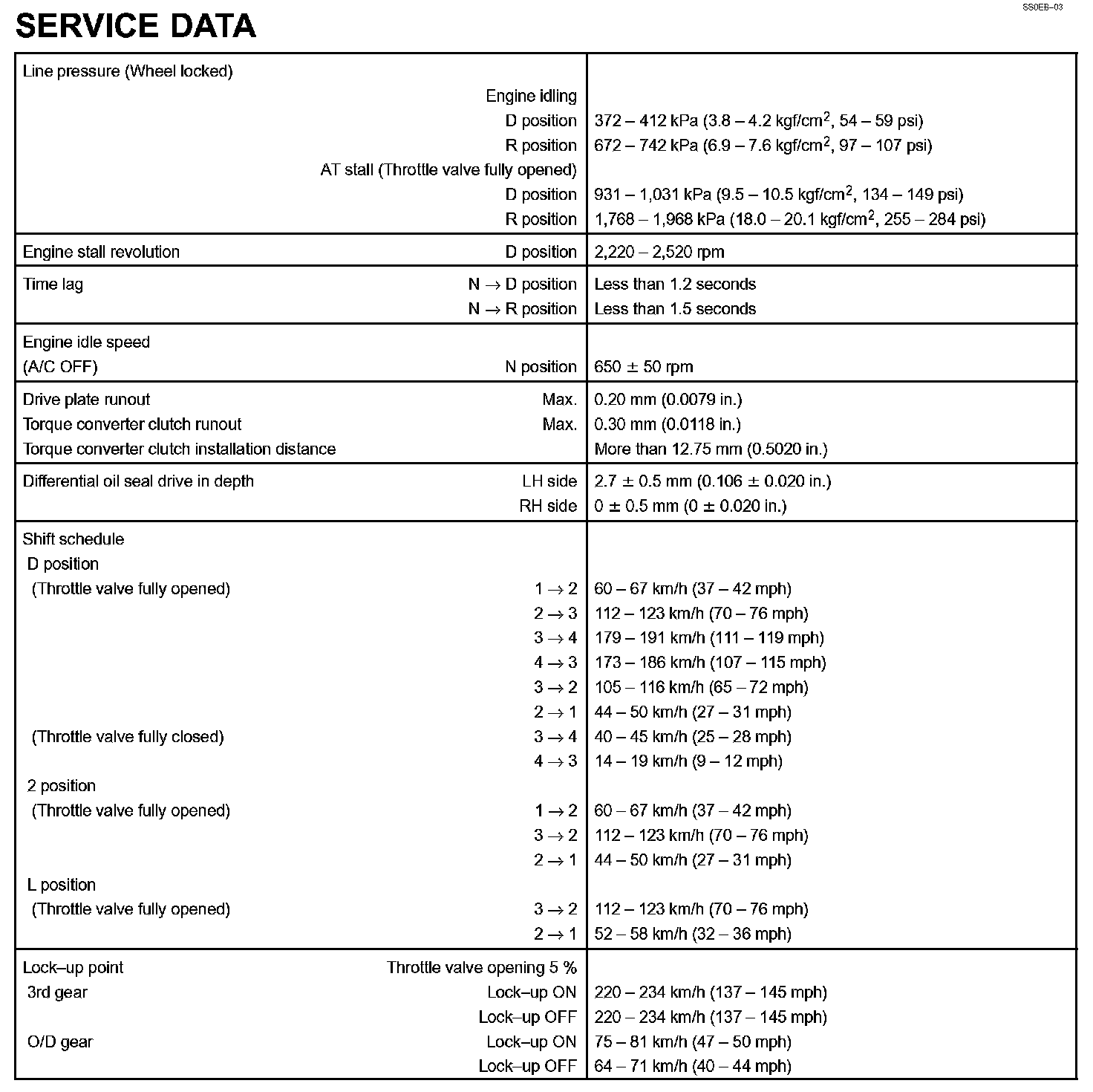

Automatic Transaxle (U240E) - Service Data:

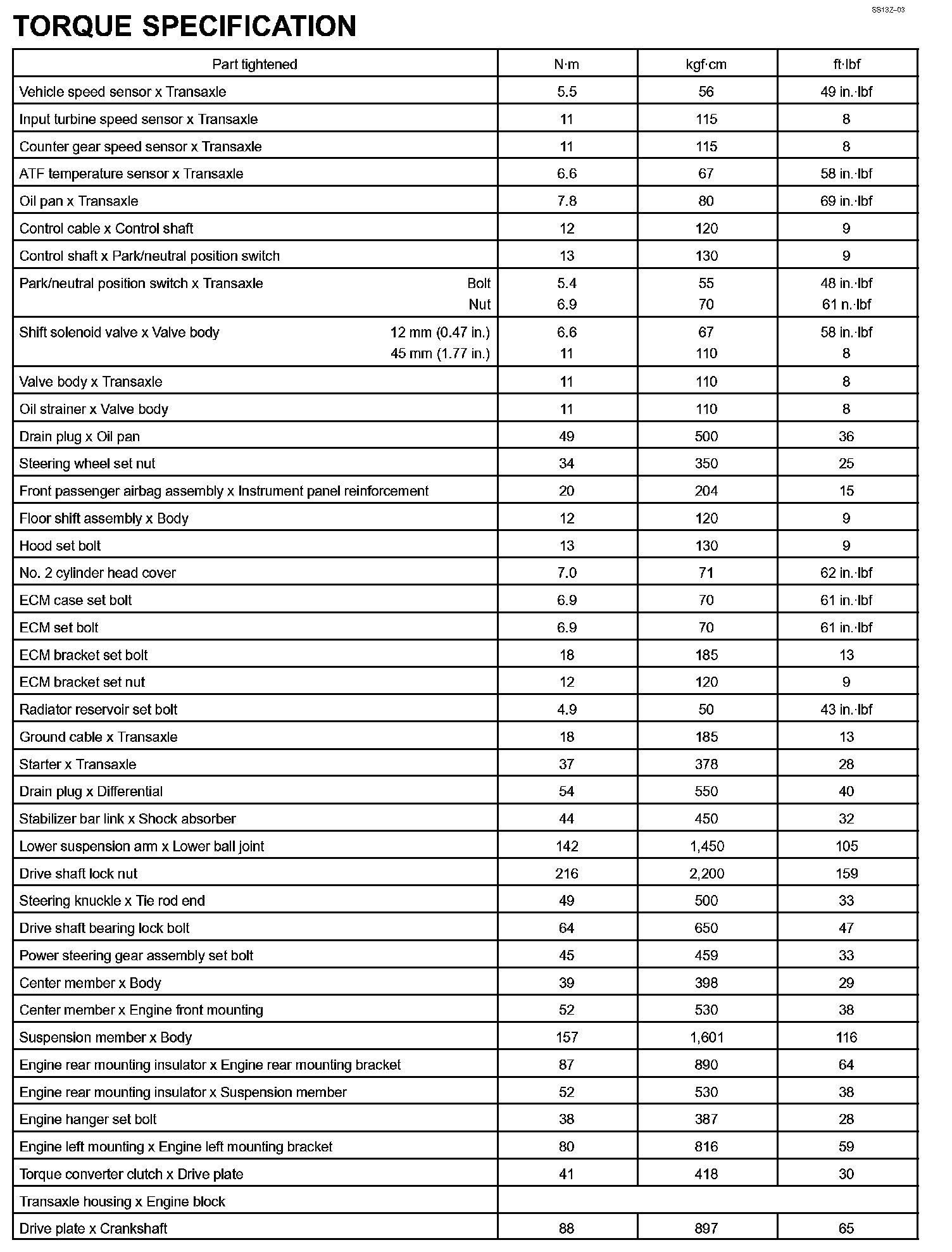

Automatic Transaxle (U240E) - Torque Specification:
