Operation CHARM
: Car repair manuals for everyone.
Home
>>
Toyota
>>
2004
>>
Corolla L4-1.8L (1ZZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Suspension
>>
Wheel Hub
>>
Front
Front

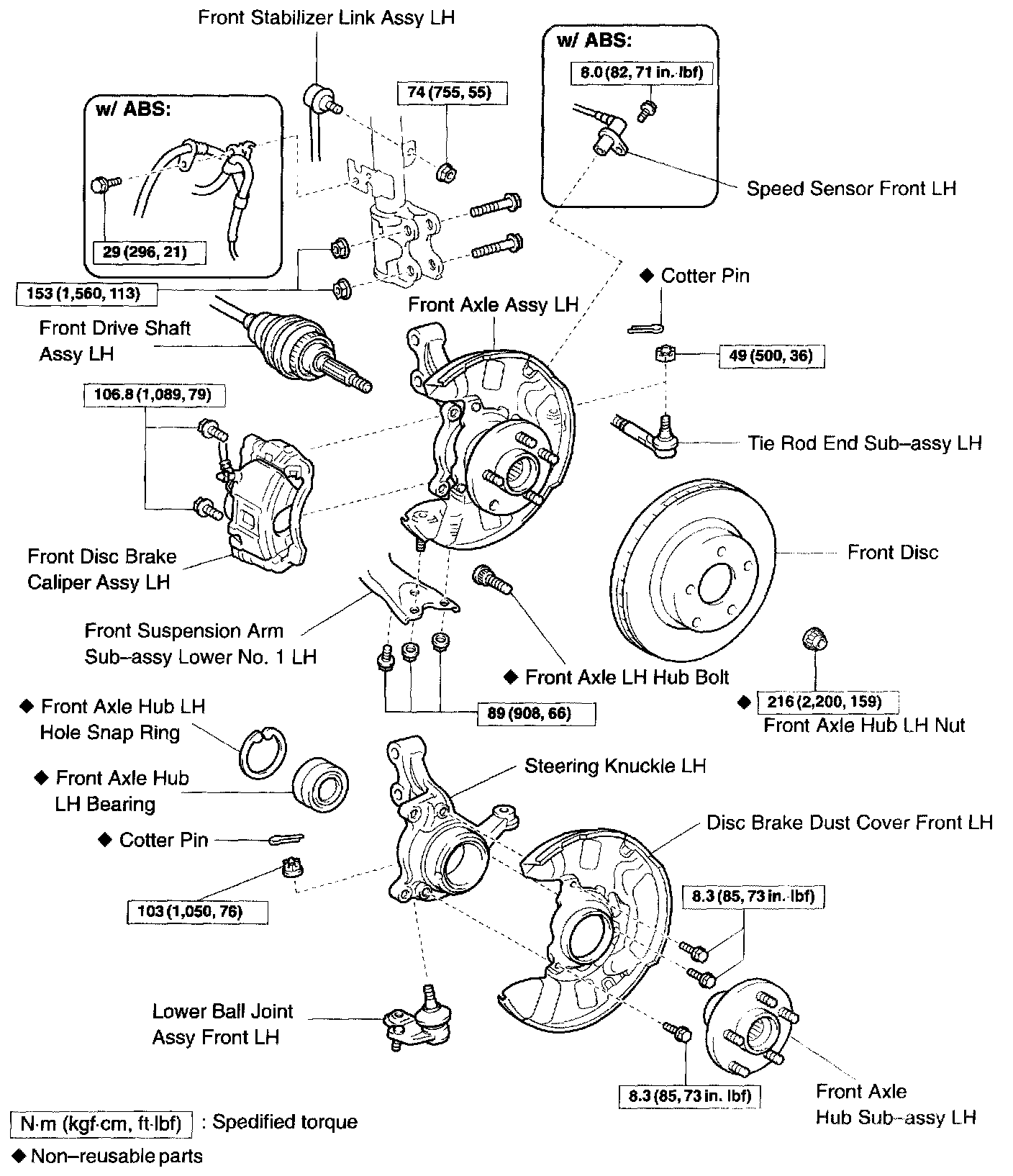

FRONT AXLE HUB SUB-ASSY LH
