Operation CHARM
: Car repair manuals for everyone.
Home
>>
Toyota
>>
2004
>>
Echo L4-1.5L (1NZ-FE)
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Automatic Transmission/Transaxle
>>
System Specifications
System Specifications

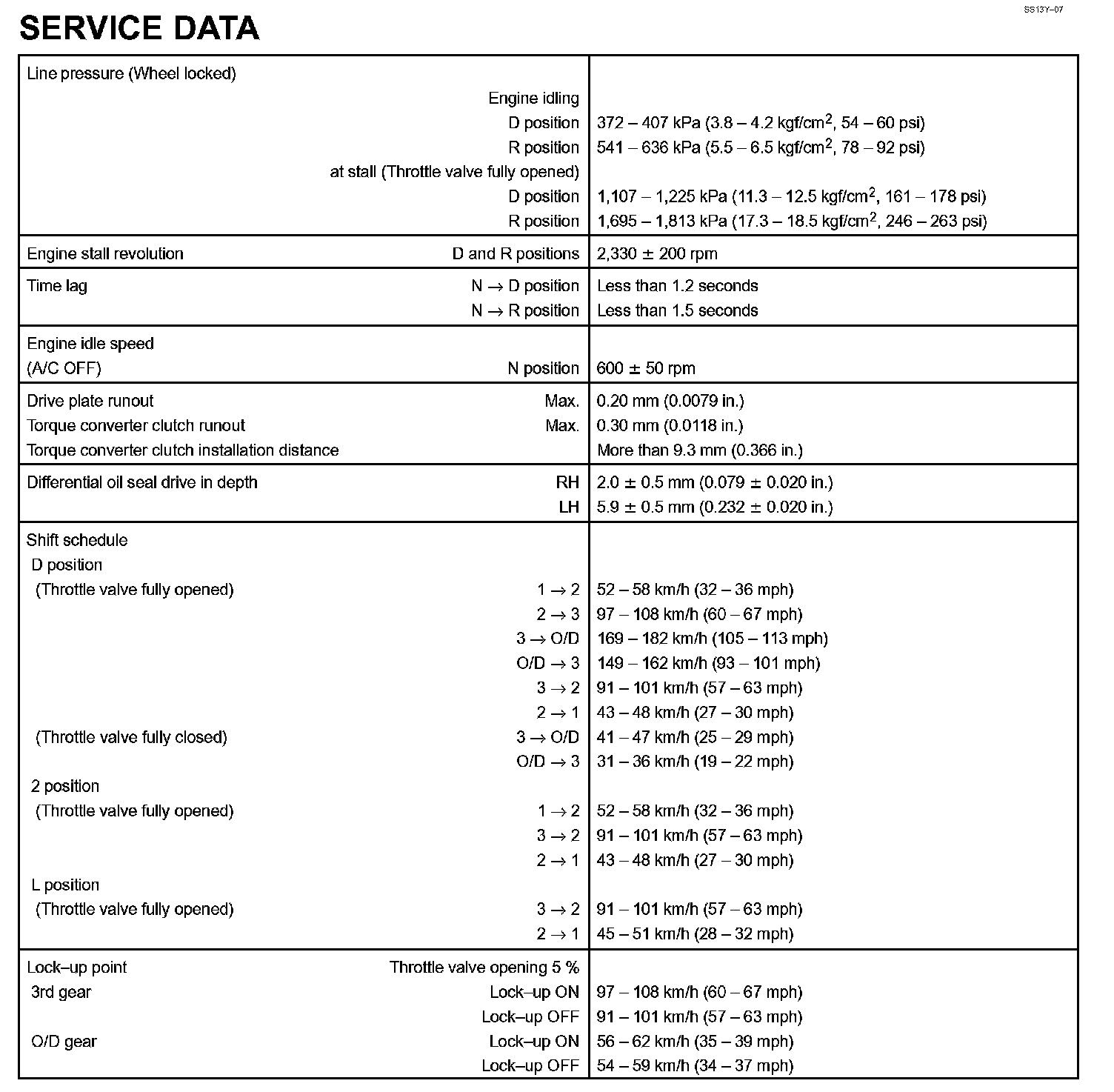

Automatic Transaxle - Service Data:

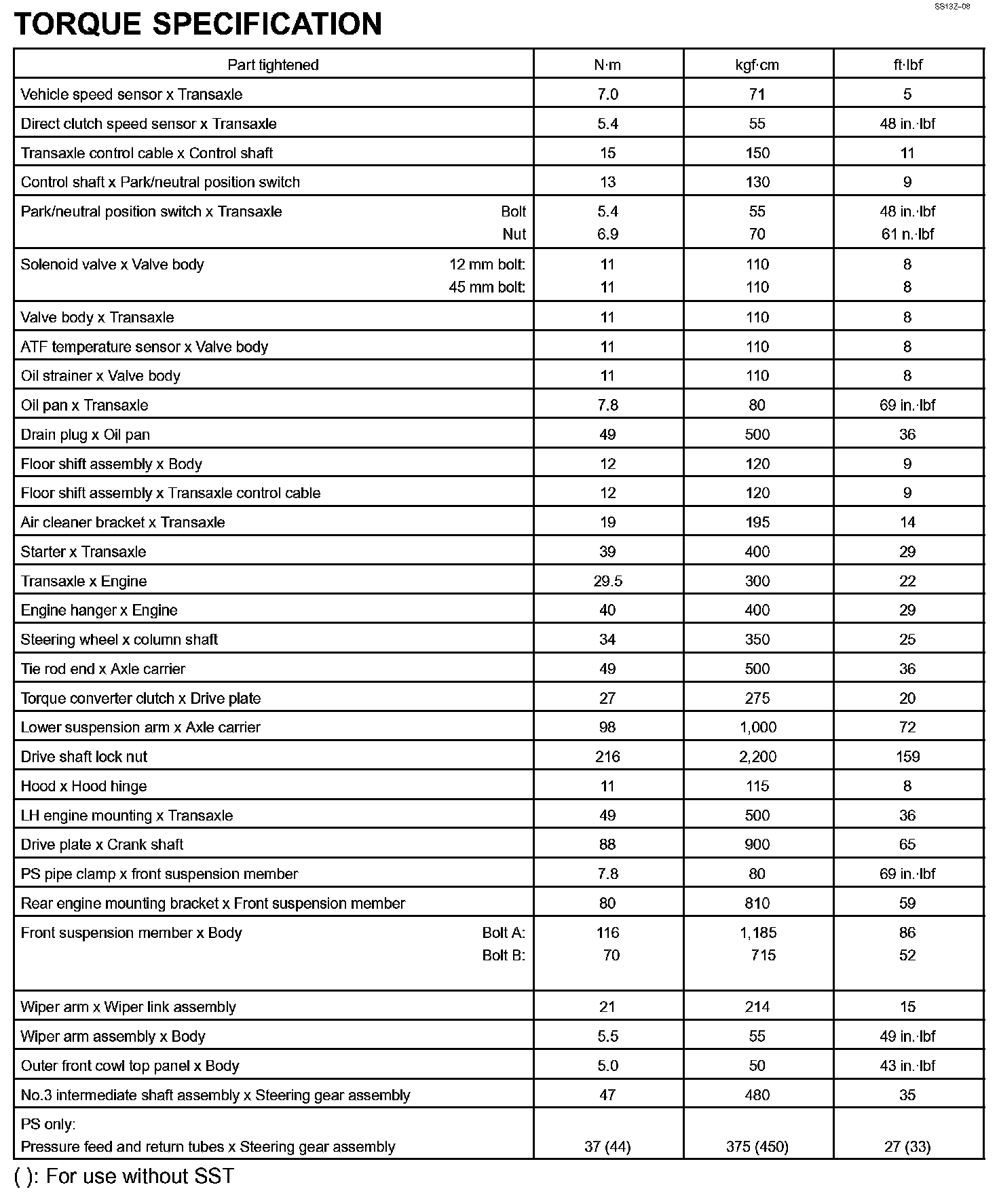

Automatic Transaxle - Torque Specification:
