Specifications
>>
Mechanical Specifications
>>
Manual Transmission/Transaxle
>>
System Specifications
System Specifications

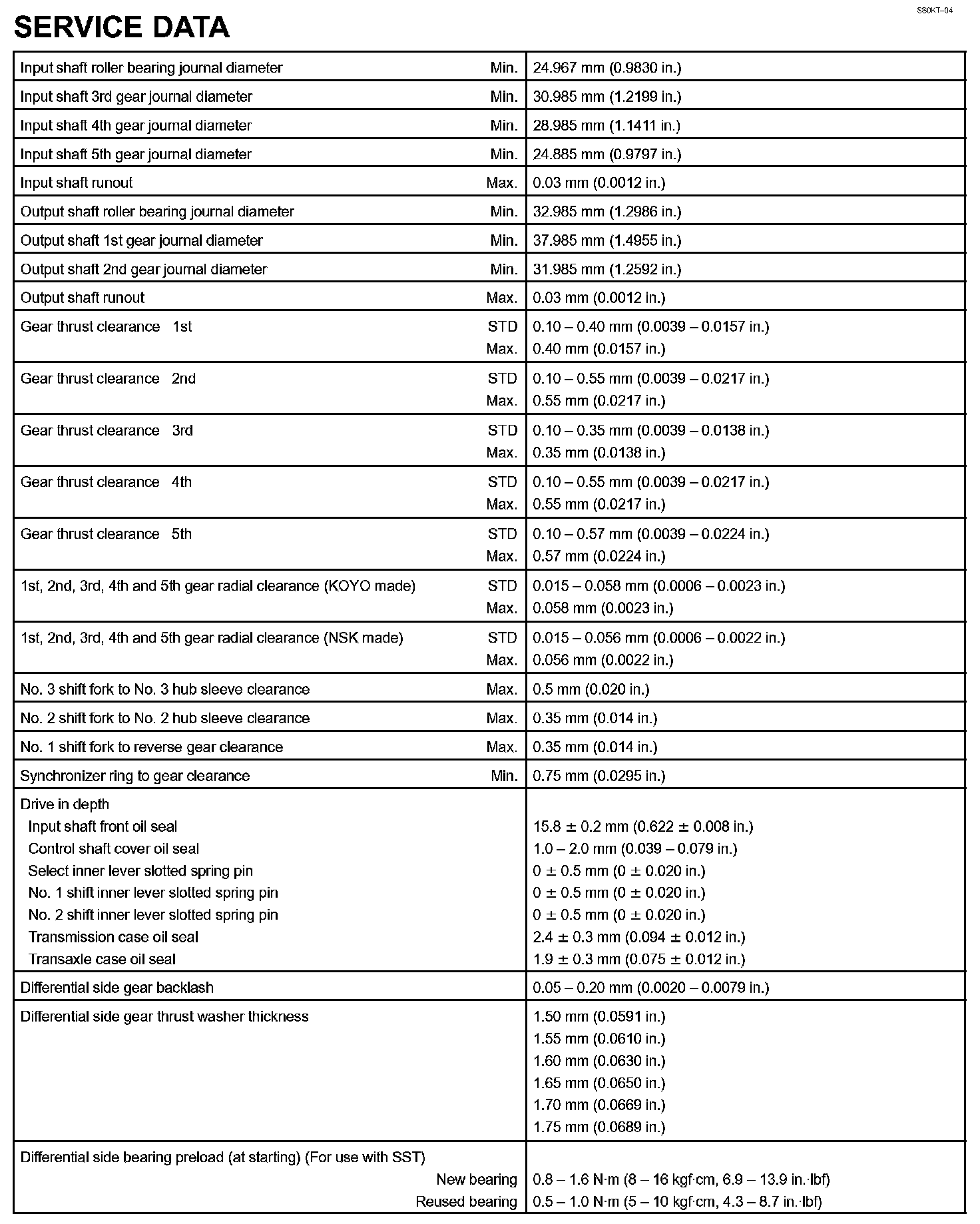

Manual Transaxle - Service Data Part 1:

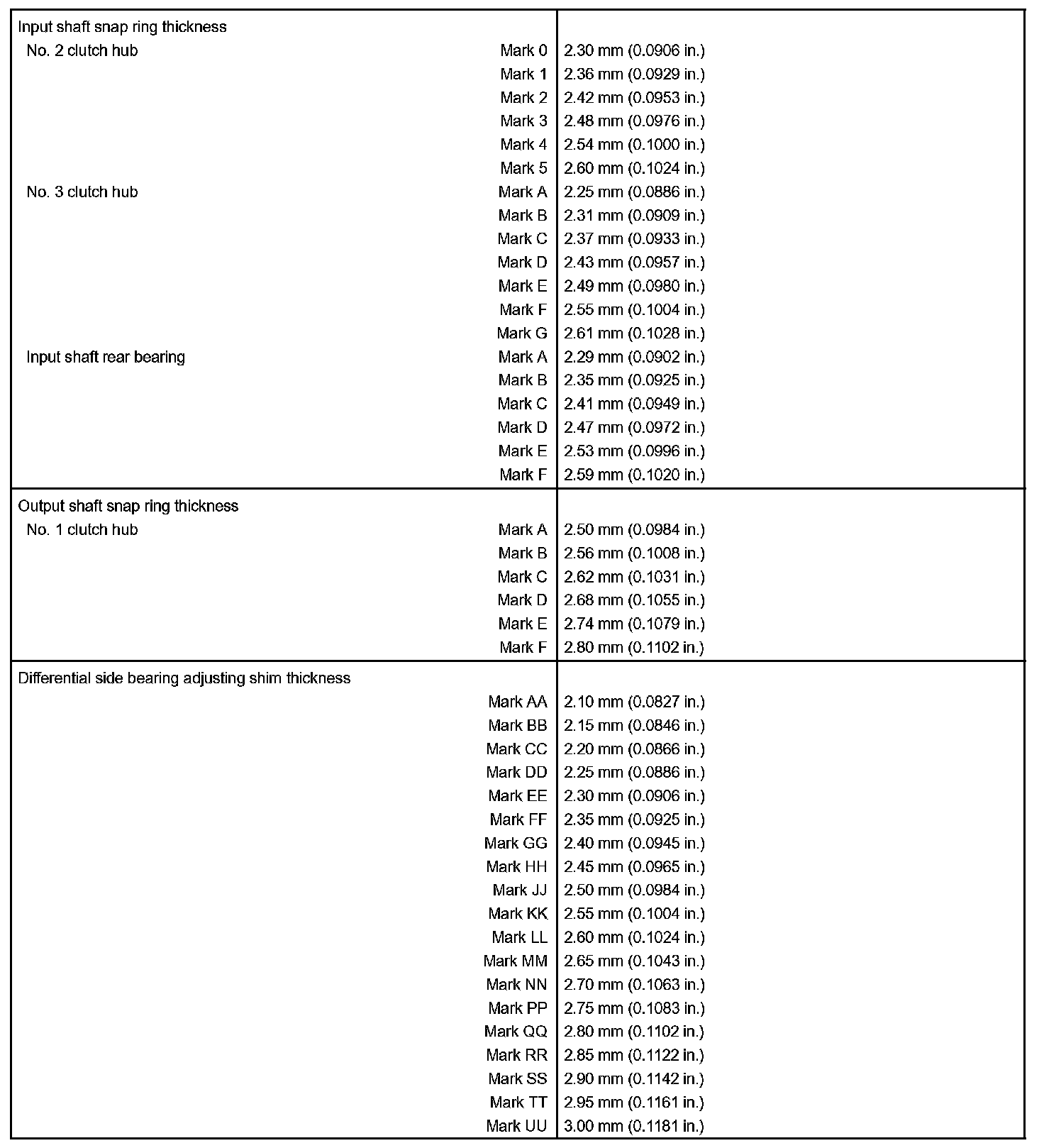

Manual Transaxle - Service Data Part 2:

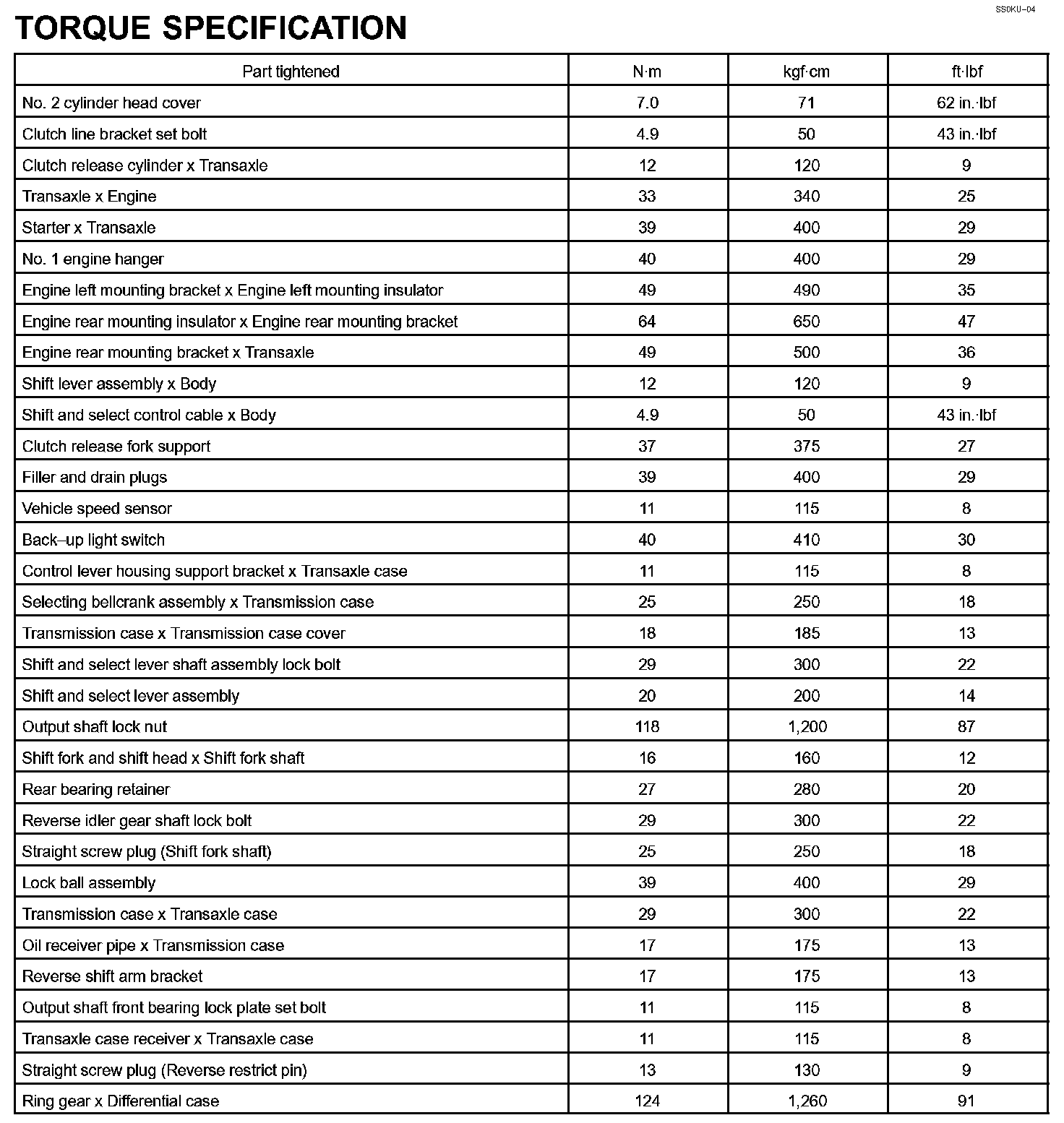

Manual Transaxle - Torque Specification:
